FD278 UHF +6-004A
手機版購買: https://409mall.com/product/qKkXddGq5JGzdope

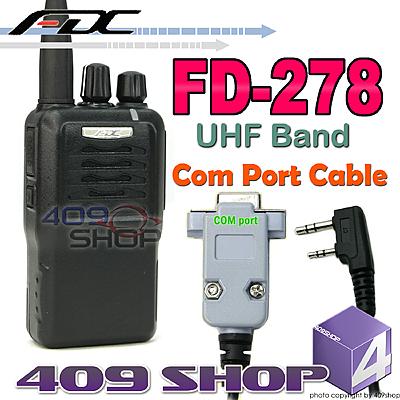

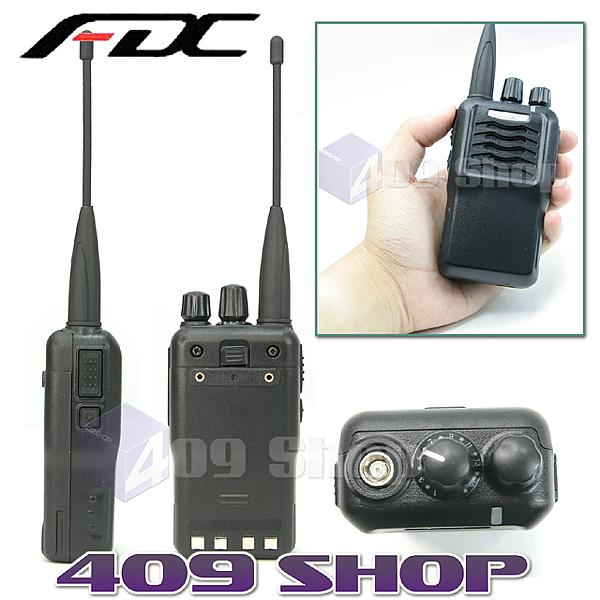

FDC FD-278 UHF Radio 400-470Mhz+Prog Cable x 1set
16 Channel + Free for Prog cable
Radio with One-year warranty.
Built-in 50groups of CTCSS and 104 groups of DCS
Standby time:120hours
Rainproof
Programming method:computer
Charger LED indicator(red-charging;green-fully chaged)
Signal strength indicator
Battery indicator
Semi-duplex operation
Technical Specifications:
FDC Radio Model No.
FD-278
General
Frequency Band
UHF
Frequency Range
400 - 470 MHz
Channel Capacity
16
Operating Voltage
7.2 DC ± 15%
Antenna Impedance
50ohms
Channel Spacing
25KHz
Working Temperature
-30°C ~ +60°C
Frequency Stability
± 2.5ppm
Size (without antenna)
55(W) x 90(L) x 30mm(D)
Weight (with battery)
About 200g
Battery
1,200mAh( Li-ion)
Compatible with American Military Standard(MIL-STD-810C/D/E)
Transmitter (EIA-RS 316B Standard)
RF Power Output
4W
Modulation Type
F3E
Modulation Distortion
<5% (300 - 3,000Hz)
Maximum Frequency Deviation
<5KHz (1,000KHz when 100%)
FM Noise
<= -45dB
Receiver
Sensitivity (12Db SINAD)
0.16uV
Selectivity
55dB
Adjacent Channel Selectivity
>= 70dB
Noise Respond
>= 60dB
FM Noise
45dB / 40dB
Modulation Type
16KOF3E
Audio Power Output
500mW when distortion less than 10%
Audio Distortion
<5%
Operating Bandwidth
± 7KHz
Standby Current
<10mA

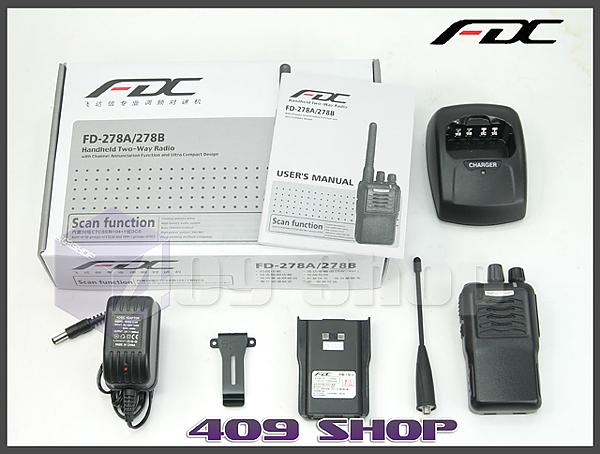

Each Set PACKAGE CONTAIN
1x FDC FD-278 (UHF 400-470Mhz)
1x 7.2v 1200mah Li-ion Battery Pack.
1x UHF Antenna.
1x Belt Clip.
1x ENG Manual
1x Desktop Charger ( 100V ~ 240V ) + PSU (2pin USA or 3pinUK or 2pin EURO)
1x Prog Cable + software disk
(***對講機只供出口用/Radio for Export Only***)
|
