編號: 4-096
名稱: Forehead/Throat-Vibration mic

優惠價: HKD 131.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情

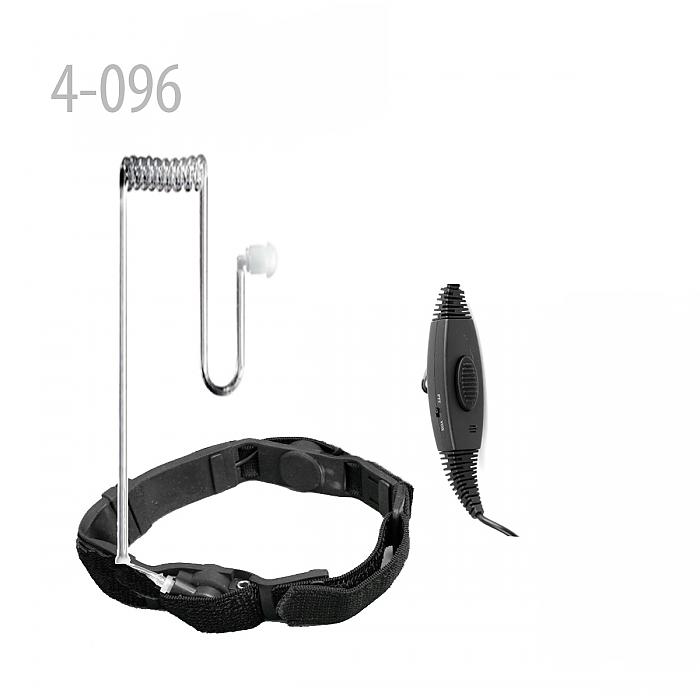

4-096 ( MiNi DIN plug series) : Forehead / Throat Mic with VOX/PTT

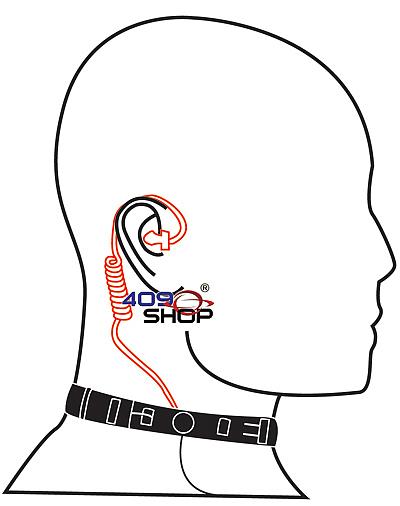

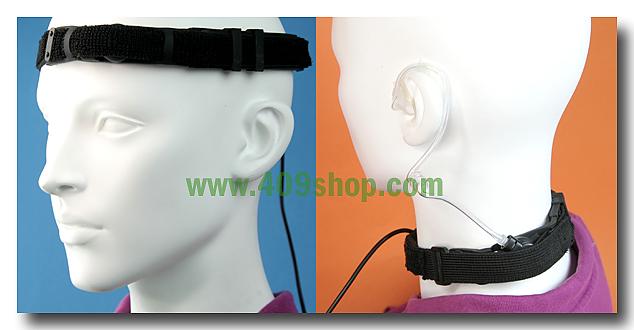

The forehead mic transmits your voice by the vibration of your skull. It transmit crystal clear sound without the need to talk before a boom mic.
It is attached to an elastic Velcro strap that suits head sizes from 12 to 25 inches.

The forehead mic can be easily hidden under a helmet or cap. You can also wear it on your throat and it could be easily hidden under the collars.

Since the microphone transmits directly from your forehead or throat,
it is not sensitive to the background noise. This is exceptionally ideal for usage in high ambient environment such as driving,
riding motorcycles and bicycles. Besides, the easily adjusted Velcro strap fixes the position of the sensor / microphones so that it would
not be misplaced even under constant movement. An ideal choice for hardcore operations.

With the best-quality transparent acoustic tube that could hardly be detected by people around you,
this is also ideal for surveillance purposes and security at airports, casinos, crowd control at conventions and concerts,
and other working environment requiring discreet communications.

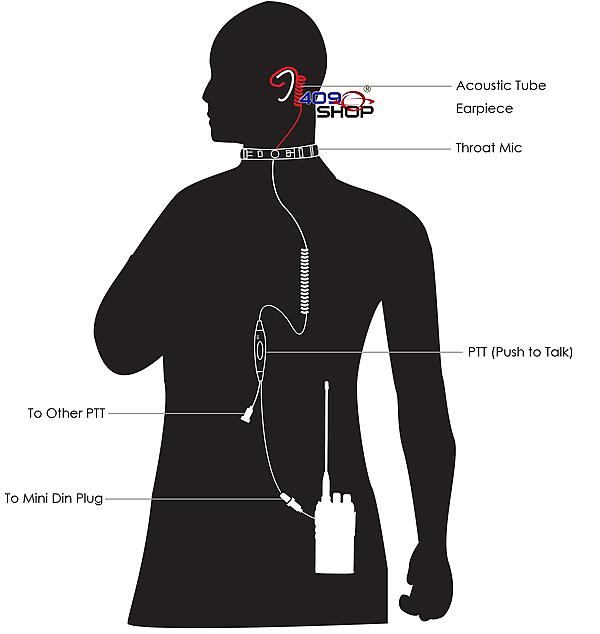

There are two speakers / sound outputs on the forehead mic: the plug for acoustic tube earpiece (provided) and a 3.5mm plug for a pair of standard stereo earphones (not provided).

The plug leading to the two-way radio is also detachable. It is to be connected by a 6-pin mini din plug. The packages comes with the two-way radio plug for the specified models (see specfications on the left). If you would like to work with radios with different accesisory jacks, just come and purchase the suitable cables and plug into your throat mic.

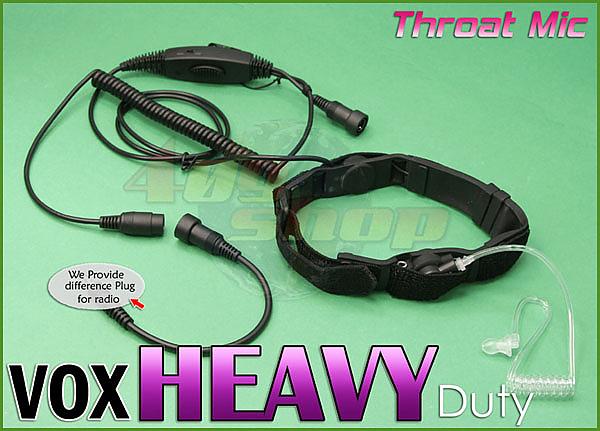

VOX/PTT Throat-Vibration Speaker/Microphone in connection to an acoustic tube headset and a detachable PTT cord; Two wire leading from the PTT/VOX unit, one leading to a separate PTT button and the other leading to the radio plug; both wires are connected by mini din plugs and are detachable; Comes with interface acoustic tube earpiece (provided) and a 3.5mm plug for standard stereo earphones (not provided);VOX/PTT compatible: VOX mode only works with radios that come with built-in VOX capability;


Technical data of earphone speaker

-Transducer: moving coil dynamic speaker Impedance: 32Ω +/- 15% @ 1kHZ
-Sensitivity: 120 +/- 3dB @ 1kHZ
-Resonance freq (FO) 400HZ +/- 20%
-Rated input power: 200mW Maximum input power: 500mW

Technical data of microphone

-Sensitivity: -37.5+/-2dB @ 1kHZ 2.2KΩ 3V 0dB=1v/pa
-Impedance: Max. 2.20kΩ @1kHZ
-Directivity: Omni-directional Frequency: 100Hz - 16000Hz
-Max operation voltage: 10V
-Standard operation voltage: 3V;
-Current consumption: Max. 0.5mA;
-S/N ratio: Min. -56dB @1.1kHZ

-Best fit forehead / neck size: 12" - 18"

Please choose MINI Din plug fit for radio





PACKAGE CONTAIN
  • 1 x Forehead / Throat Mic with VOX funtion
  • Mini Din Plug **This item is not include MINI Din plug connect to Radio , please choose option from below
  •
  •



All Plug detail
409shop-All-related-product

插頭選擇

BAOFENG 3.5mm JINGTONG 2.5mm KENWOOD/國產對講機 HYT
444-K 444-K 444-K PD500
HYT HYT MOTOROLA MOTOROLA
PD500 PD500 444-K
MOTOROLA MOTOROLA MOTOROLA MOTOROLA
earpiece-motorola-m9-plug
MOTOROLA MOTOROLA MOTOROLA MOTOROLA
earpiece-motorola-m9-plug
ICOM ICOM ICOM ICOM
Maxon/Midland Maxon/Midland PUXING/NKT Vertex Standard/YAESU
YAESU/Nanfone YAESU AHUAGO
44-HT



類別​選擇



類別​PTT 按掣





對講機匹配型號

AW Plug

44-HT PD500
PD500 choose-speakermic

AW Plug


適用於對講機型號:

For AHUAGO : AW400W, GX-V10, GX-V5



B Plug

444-K PD500
PD500 choose-speakermic

B Plug


適用於對講機型號::

For BAOFENG (3.5MM PIN) : UV-3R , UV-3R Mark II , UV-100 , UV-100 Mark II ,UV-200 ,UV-200 Mark II , BF-U3 , BF-U8

HT Plug

444-K PD500
PD500 choose-speakermic

HT Plug


適用於對講機型號::

For MOTOROLA : HT-1000, HT-2000 and 8000/9000 Portable radios, HT1000, MTS2000, XTS2500, XTS3000, XTS3500,XTS5000, MT2000, JT1000, MTX8000, MTX9000, GP900, GP1200, MTX838



J Plug

444-K PD500
PD500 choose-speakermic

J Plug


- 適用於對講機型號:

For JINGTONG : JT-208 JT-308 JT-2118 JT-3118

For Kington : KG-2118 KG-3118 KG-208 KG-308

For Kensung :KG-528 KG-628 KG-2118 KG-3118  KG-2288 KG-3288

K Plug

444-K PD500
PD500 choose-speakermic

K Plug


適用於對講機型號::

For Baofeng : BF-490, BF-568,BF-666, BF-758S,BF-777S,BF-S88, BF-888S, BFF8-PLUS, BF-F9, BFK5,BF-UV82C,BF-V6,
BF-V85, BFUV-6 ,C150,GT-3, UV-3R PLUS, DM-5R,DM-5RPlus,UV-5111T,UV-5R, UV-5RA, UV-5RA-UU, UV-5RA-plus, UV-5RB, UV5RC, UV5RD, UV-5RE,UV-5RG, UV-5RQ , UV-5RT , UV-5S , UV-5RU, UV-B5, UV-B5PLUS,UV-B6,UV-82 ,UV82HP

For Baojie : BJ-UV88 , BJ-UV99

For Feidaxin : FD-A380, FD-55, FD-56, FD58, FD-68, FD-98, FD-278, FD-288, FD-289,FD-390, FD-760, FD-780 , FD-790, FD-850, FD-880, FD-890(FD-288, FD-268-Earpiece only)

For Galaxy : G6700, G-6800,

For HYT : TC-268, TC-268S, TC-270, TC-270S.,TC-368,TC-368S ,TC-268,TC-268S ,TC-510 ,TC-700 etc..

For Harico : GT-488 ,IC-7000,P8668,P-73

For Huitong : HT910 , HT911

FOR KIRISUN : PT558 , PT560

FOR JINGTONG : JT-988, JT-N98

FOR Kenwood : TK-240, TK-250, TK-255, TK-260, TK-260G, TK-270, TK-270G,TK-272G, TK-278, TK-278G, TK-340, TK-349, TK-350, TK-353,TK-360, TK-360G, TK-370, TK-370G, TK-373G, TK-378, TK-378G,TK-430, TK-431, TK-715, TK-2100, TK-2102, TK-2107,TK-2118, TK-2160, TK-31

For Linton : LT-2188, LT-2268, LT-2288, LT-3188,LT-3260, LT-3268,LT-3288,LT-5288,LT-6000, LT-6100,LT-6100plus,LT-6188, LT-6288, LT-6600, LT-9000, LT-9800

For MYT : MYTQ1V , MYTQ1U

For MIDLAND: CT 200,MIDLAND CT 210,MIDLAND CT 400,MIDLAND CT 410,MIDLAND CT 710,MIDLAND CT 790,MIDLAND CT 890,MIDLAND G 10,MIDLAND G 11S,MIDLAND G 11V,MIDLAND G 14

For NANFONE : NF-669

For PUXING : PX-325, PX-328, PX-333, PX-358, PX-555,PX-666, PX-728, PX-729, PX-777,PX-888, PX-888K, PX-V6

For RONGSHEUNG : RT-626,RS-958,RT-966, RS-999, UV-8R

For RONSON : RT-6000, RT-6100, RS-LY8, RS-H86

For SURECOM : S-UV-5R ,SJ-409

For TYT : TH-446, TYT-777, TYT-800, TYT-888, TYT-900, TH-F2, TH-F5, TH-F7, TH-F8,TH-UVF8D, TH-UVF1,TH-UVF9
MD-380,MD-380G,MD-446,MD-390

For QUANSHENG:​TG-2AT, TG-22AT, TG-25AT, TG-42AT, TG-45AT, TG-46AT, TG-6A, TG-K4AT,TGK4ATUV,TG-UV2

For WEIERWEI : V-1000, VEV-3288, VEV-3288S, VEV-V16, V8

For WACCOM : WUV-5R, WUV5RE-PLUS , WUV5R-UU , WUV-6R

For WOUXUN : KG-659, KG-669, KG-679, KG-689, KG-699, KG-801, KG-816, KG-818, KG-819,KG-833, KG-889, KG-UV6D , KG-UVD1P,KG-UV8D ,KG-UV9D

For QYT : UV9A-UU



MT Plug

PD500
PD500 choose-speakermic

MT Plug


適用於對講機型號::

For HYT :TC-1688,TC-320,TC-310

For MOTOROLA TALKABOUT :
*TKLR Series: TKLR T3, TKLR T4, TLKR T5, TLKR T6, TLKR T7, TLKR T8 TLKR T9
*EM Series: EM1000, EM1000R, EM1020R,
*MR Series:MR350R,MR355R, MR356R
*MH Series: MH230R
*MB Series: MB140R
*MC Series: MC220R, MC225R, MH230R,
*MJ Series: MJ270R
*XTR446,XTL446,PMR446
*Spirit GT / GT plus, FR50, FR60,
*SX500, SX620R, SX700, SX709R, SX750, SX800, SX900, SX920R,
*FR50, F60, FV200,FV200R, FV200AA, FV300,FV500,FV500R, FV500AA , FV600, FV700, FV750, FV800, *T270, T280, T289, T4000, T4512,, T7000, T4800, T4800AA, T4900, T4900AA, T5000, T5100, T5000AA,T5146, T5200, T5300, T5320, T5400, T5410, T5412,
 T5420, T5422, T5500, T5500AA,T5512, T5522, T5532, T5550, T5600, T5620, T5700, T5710, T5720, T5725, T5800, 20,T5822,T5900,
 T5920, T5950, T5950AA , T6000,T6200, T6210, T6212,T6220, T6222, T6250, T6300,T6300AA,T6310, T6312,T6320,T6322,T6400,
T6412, T6500, T6510, T6550, T6512, T6552R,T6500AA, T7000,T7100R, T7150R, T7200, T7200AA, T7400R, T7400AA, T7450R, T7100, T7150, T7200, T7400, T7450, T8000, T8500, T8550, T9000,T9500, T9550, T9500R,
*T9500XLR, T9550XLR, T9580XLR, T9650, T9680 etc.
For MYT : MYTQ2V , MYTQ2U
For RONSON : RT-88
For TYT : TH-2R , TH-UV3R
For AMYTEL : AW1080T, AW1010T

M Plug

PD500
PD500 choose-speakermic

  M Plug


適用於對講機型號:

Motorola mode:

CLS Series: CLS1110, CLS1410, CLS1413, CLS1450, CLS1450C, CLS1450CB, VL50

CP Series: CP88, CP040. CP100, CP110, CP125, CP150, CP200, CP250, CP300

DTR Series: DTR410, DTR550, DTR610, DTR650

GP Series:GP2000 , GP2100, GP300, GP308, GP68, GP88, GP88S

SP Series: SP10, SP21, SP50+, SP50

CT Series: CT150, CT250, CT450, CT450LS

XIR Series: XIRP3688

XTN Series: XTN446, XTN500, XTN600

XTN XV Series: XV1100, XV2100, XV2600, XV4100

XTN XU Series: XU1100, XU2100, XU2600, XU4100

XTN AX Series:AXV5100, AXU4100

Spirit Series: SV10, SV11, SV11D, SV21, SV12, SV22, SV22C, SU210, SU22, SU22C, SU220 VHF / UHF Spirit, Spirit Pro, Spirit Pro+, Spirit HP 10

Spirit MU Series: MU11, MU11C, MU11CV, MU12, MU12C, MU12CV, MU21C, MU21CV, MU22CVS, MU24CV, MU24CVS, MU24CVST

Spirit MV Series: MV11, MV11C, MV11CV, MV12, MV12CV, MV21C, MV21CV, MV22CV, MV24CVS

PRO Series: PRO1150, PRO2150, PRO3150

P Series: P040, P080, P1225, P1225LS

Other Series: GTI, GTX, LTS2000, VL130, PMR446, ECP100, Mag One BPR400, EP450, AU1200, AV1200

RDX Series: RDV-5100, RDV2020, RDU2020, RDU2080DD, RDU4100, RDU4160D, RDV2080D, RDV5100

AUDIO Adaptor :HLN9716, HLN9482A

Blackbox Series: Blackbox-V, Blackbox-U

FOR Feidaxin : FD-150A,  FD-160A, FD-450A, FD-460A

FOR PUXING: PX-508U , PX-999

FOR KIRISUN : PT578U , S760U , S765U , S780U , S785U



M328

PD500
PD500 choose-speakermic

 M328 Plug


- 適用於對講機型號:

FOR MOTOROLA :
GP140, GP320, GP328, GP329, GP338, GP339, GP340,GP360, GP380, GP640, GP680, GP1280,
MTX850,MTX850LS, MTX900, MTX950, MTX8250,MTX8250LS, MTX9250,
HT750, HT1250, HT1250LS, T1550XLS,
PR860, PRO5150, PRO5350, PRO5450, PRO5550, PRO5750, PRO7150, PRO.
PTX700
MTP700 MTP750 PTX760 PTX780 Tetra MTP810EX

M328PLUS

PD500
PD500 choose-speakermic

M328+ Plug


- 適用於對講機型號:

For  MOTOROLA : GP328Plus, GP338Plus, GP344, GP388,GL2000, EX500, EX600, EX600XLS.

For SURECOM  / SURE : F22,F22+,F25 Zello PTT Walkie Talkie Mobile phone

For KIRISUN : PT567


M7 Plug

PD500
PD500 choose-speakermic

M7 Plug


- 適用於對講機型號:

Motorola MOTOTRBO Radio APX series:
APX 1000, APX 2000, APX 3000, APX 4000, APX 4000 P25, APX 4000XH, APX 6000, APX 6000 P25, APX
 6000XE P25, APX 7000, APX 7000e, APX 7000L, APX 7000SE, APX 7000XE P25, APX 8000, APX 8000XE, SRX 2200 Combat Radio

Motorola MOTOTRBO Radio DGP Series:
DGP 4150, DGP 4150+, DGP 5050, DGP 5050e, DGP 5550, DGP 5550e, DGP 6150, DGP 6150+, DGP 8050, DGP 8050e, DGP 8050e ELITE, DGP 8550, DGP 8550e, DGP 8550EX

Motorola MOTOTRBO Radio DP Series:
DP 3400, DP 3401, DP 3600, DP 3601, DP 4400, DP 4400EX, DP4401, DP 4600, DP 4601, DP 4800, DP 4801

Motorola MTP Series:
MTP850 S, MTP830 S

Motorola MOTOTRBO Radio XiR Series:
XiR P8200, XiR P8208, XiR P8260, XiR P8268

Motorola MOTOTRBO Radio XPR Series:
XPR 4500, XPR 6000, XPR 6100, XPR 6300, XPR 6350, XPR 6380, XPR 6500, XPR 6550, XPR 6580, XPR 7350, XPR 7350e, XPR 7380, XPR 7380e, XPR 7550, XPR 7550e, XPR 7580, XPR 7580e

 M8 Plug

earpiece-motorola-m9-plug PD500
PD500 choose-speakermic

M8Plug

 - 適用於對講機型號:

Motorola MOTOTRBO DEP Portable Radio: DEP 550, DEP 570
Motorola MOTOTRBO DP2000 Digital Portable Radio: DP2400, DP2600, DP3441
Motorola XPR 3000/3000e Series: XPR 3000, XPR 3300, XPR 3500, XPR 3000e, XPR 3300e, XPR 3500e
Motorola TETRA Portable Terminals: MTP3100 TETRA, MTP3150 TETRA , MTP3200 TETRA , MTP3250 TETRA , MTP3500 TETRA, MTP3550 TETRA
Radio Portatil MOTOTRBO DEP 8050 Elite
Motorola MOTOTRBO XiR P6600, XiR P6600i, XiR P6608, XiR P6620, XiR P6628, XiR E8600, XiR 8608

 MM/F2 Plug

PD500
PD500 choose-speakermic

MM/F2Plug

 - 適用於對講機型號:

FOR Nextel (Motorola iDen) Falcon : i205, i265, i275, i305, i315, i325, i355, i530, i605, i710,i730, i733, i736, i830, i836, i850,i860, i930



 M9 Plug

earpiece-motorola-m9-plug PD500
PD500 choose-speakermic

M9 Plug

 - 適用於對講機型號:

Earphone Connection COUGAR Surveillance Earpiece for Motorola

Compatible with Motorola SL1K, SL4000, SL7550



 MPD680 Plug

PD500
PD500 choose-speakermic

MMPlug

 - 適用於對講機型號:

HYTERA :HYT PD600,PD680,X1E,X1

PD500

PD500 PD500
PD500 choose-speakermic

HYT TC-500PLUG  適用於對講機型號:

FOR  HYT Hytera   : TC300 ,TC-446S TC-500, TC-518, TC-600, TC-610, TC-618 ,TC-620, TC-700, TC-700ExPLUS,TC-900, TC-1600,TC-2110 , HYT850, HYT2100,TC-508 TC-505



MPD780 Plug

PD500
PD500 choose-speakermic



 PD-780 PLUG - 適用於對講機型號:

Compatible with:

HYT (Hytera):  PD700, PD700G, PD780, PD790, PD780G, PD782, PD790Ex, PT580, PT580H

PUXING R

PD500
PD500 choose-speakermic



R Plug - 適用於對講機型號:

FOR PUXING : PX-A6, PX-2R
FOR NKT : NKT-R3



Icom S

PD500
PD500 choose-speakermic



S Plug - 適用於對講機型號:

FOR ICOM : IC-T7H ,IC-W32A,IC-F3,IC- F3S,IC- F4, IC-F4S,IC- F4TR,IC-F10, IC-H2,IC- H6,IC- J12, IC-M5, IC-U12, IC-U16, IC-4008, IC-4088A

Cobra(All 2-Pin) FOR Motorola Talkabout : 200, 250 Distance, Distance DPS

FOR Ritron Patriots Series : RTX, SST, Jobcom, JMX, MBX, JMX-102,JMX-141, JMX-144,JMX-146,JMX-152,
JMX-441, JMX-444,JMX-446,  JMX-452, Patriot SST plus

FOR Motorola : 5500

FOR Vertex : VX200-VX500- VX510-VX52OUD

ICOM SL

PD500
PD500 choose-speakermic



SL Plug - 適用於對講機型號:

FOR ICOM :
IC-F3G,IC- F3GS, IC-F4G, IC-F4GS, IC-F11, IC-F11S,IC- F14,
IC- F14 S, IC-F15, IC-F14/24, IC-F21, F21S, F22, F31, F33, F43 , ICOM IC-V8

ICOM S6

PD500
PD500 choose-speakermic



S6 Plug - 適用於對講機型號:

FOR ICOM :

F11, F21, F14, F14S, F24, F24S, F25, F33G, F3Gs,
F43G, F43TR, IC-F3000, F3001, F3002, IC3011, F3011,
F3021, F3021S, F3021T, IC F-3026 S / F-4000, F4001,
F4002, F4011, F4021, F3021S, F4021T, F-4026

ICOm S8

PD500
PD500 choose-speakermic



S8 Plug - 適用於對講機型號:

FOR ICOM :
IC-F30GT, IC-F30GS, IC-F31GT, IC-F31GS, IC-F40GT, IC-F40GS, IC-F41GT, IC-F41GS
IC-F50, IC-F51, IC-F60, IC-F61, IC-F70, IC-F80,IC-F4163T/S
IC-F3060, IC-F4060, IC-F3161T/S, IC-F4161T/S, IC-F3162T/S, IC-F4162T/S, IC-F3163T/S,
IC-M87, IC-M88

S2

PD500
PD500 choose-speakermic


S2 Plug - 適用於對講機型號:

FOR Midland - All 2-Pin : 75-785, 75440, GTX-200, GTX-250, GTX-300,FOR Maxon : SP14, SP130, SP120, SP130, SPI140, SP300,
SP310, SP320, SP330, SP340, SL25, SL55, SL55+, SL100K

GTX-325, GTX-400, GTX-444, GTX-450,

S2 L

PD500
PD500 choose-speakermic

S2L Plug - 適用於對講機型號:


FOR Maxon : SP14, SP130, SP120, SP130, SPI140, SP300,
SP310, SP320, SP330, SP340, SL25, SL55, SL55+, SL100K

FOR Midland - All 2-Pin : 75-785, 75440, GTX-200, GTX-250, GTX-300,
GTX-325, GTX-400, GTX-444, GTX-450,

Motorola V

PD500
PD500 choose-speakermic

V Plug - 適用於對講機型號:


FOR MOTOROLA : Visar series



Y PLUG

PD500
PD500 choose-speakermic

Y Plug - 適用於對講機型號:


FOR YAESU VX : VX-1R, VX-2R, VX-3R, VX-5R VX-10, VX-14, VX-17 VX-110, VX-150, VX-130, VX-131, VX-132, VX-160,VX-168,VX-180, VX-210, VX-210A, VX-210, VX-210A, VX-300, VX-400, VX-410 VX-420, VX-351, VX-354, VX-410, VX-420, VX-427

FOR YAESU  FT :FT-10R FT-11 FT-11R ,FT-50, FT-60, FT-10R, FT-40R, FT-50R,FT-51R, FT-60R

FOR YAESU  VXF : VFX-1 VFX-2 VFX-20

FOR SCONOV : TM-800 , TM-810

FOR Motorola : 5500

FOR HUITONG : HT222 , HT333

FOR  Nanfone : NF-6600 , NF-369

Y4 PLUG

PD500
PD500 choose-speakermic

Y4 Plug - 適用於對講機型號:

For Vertex Portables:

VX-110, VX-130, VX-131, VX-132, VX150, VX-160 VX-168 VX-180,
VX-210 VX210A VX-228 VX-230 VX-231 VX-298
VX-350 VX-351 VX-354
VX-400, VX-410, VX-420, VX-414, VX-418, VX-417, VX424, VX427, VX-428, VX-429,VX-450 series: VX451, VX454, VX459
EVX530 series: EVX531 EVX539 EVX534

Y7 PLug

PD500
PD500 choose-speakermic

Y7 Plug - 適用於對講機型號:


FOR YAESU :
FT-252,FT-257,FT-270 ,FT-277 ,HX-471,VX-120 ,
VX-120E,VX-127,VX-127E,VX-170 ,VX-170E,VX-177 ,
VX-177E,VX-220,VX-270,VX-300,VX-460,VX-6E ,VX-6R,
VX-6R,VX-7E,VX-7R,VXA-300,VXA-700,VXA-710




Speaker mic With MINI DIN PLUG



Listen earpiece for Speaker/Mic  3.5mm/ 2.5mm








Detail 1100

Copyright © 2024 409SHOP  All Rights Reserved.

PLease-goto-409shop-com

 PLease-goto-409shop-com

對講機foot-type-walkietalkie

天線
foot-type-antenna

配件
foot-type-walkietalkie
SURECOM 產品
surecom
耳機設備耳機設備
foot-earpiece foot-speaker-mMic foot-adaptor foot-home1
中轉設備
foot-repeater foot-repeater-cable foot-dummy-load foot-power-supply

409SHOP全港最多最齊對講機器材!產品超過10,000種

,  零售,批發,合作銷售. 技術指導, 無任歡迎.






聯絡我們:  WHATSAPP 97137424


門市地址:香港元朗泰利街18號
榮華中心工業大廈 11樓E室

Follow us on:

409shop-facebook 409shop-you-tube 409shop-twitter.com instagram.com-409shop plus.google-409shop




409shop Group : SURECOM | DAXSHINE | 409shop-TWO-WAY-RADIO | 409shop-moible

Quick buy: Buy Earpiece | Buy Speaker/Mic | Buy Antenna | Buy Adaptor | Buy UV5R 3800MAH battery | Buy SURECOM PRODUCT

google-site-verification=hS5_fmroQb4KnqGTCKR0CXPIALDka8yatb3oKIeMqPo
