QUANSHENG TGK4AT UHF 400-470 MHz Radio + Spaeaker/Mic
QUANSHENG
TG-K4AT UHF 400-470MHz Professional Ham Radio
Professional Ham Radio UHF 400-470MHz 5W
Built-in 38 Groups of CTCSS ,ENGLISH voice ,1100mah battery.
High QUANTITY,100% brand new.
|
|
|
General
|
|
Frequency Range
|
(TG-4AT UHF)400 ~470MHz
|
| Channels |
99
|
| CTCSS |
38 tone
|
| Channel Steps |
5、10、12.5、25kHz
|
| Power Supply |
7.2V 1100mah NI-HM
|
| Operating Temperature |
-5°C ~ +60°C
|
| Antenna connect |
SMA(SMA-J)
|
| Dimension (H x W x D) |
89x 53 x29mm
|
| Charger Time |
8Hours(100MA)
|
| Standby Time |
18hours
|
| Weight |
220g
|
|
Receiver
|
| Sensitivity |
<0.18µV
|
| Selectivity |
65dB
|
| Intermodulation Rejection |
60dB
|
| AF Output |
500mW
|
| Standby Current |
18mA
|
|
Transmitter
|
| Power Output |
5W
|
| Modulation Type |
F3E
|
| Spurious Emission |
< -60dB
|
| Transmit Current |
800mA
|
| Max. Deviation |
±5kHz
|
| Modulation Distortion |
< 5%
|
| Frequency Stability |
±2.5ppm
|
Specifications by QUANSHENG factory.
|
|
|
|
Ultra Compact Design Easy Portable |
| |
99 Memory Channels, |
| |
Keypad program |
| |
RF output HI/LO select |
| |
Black light Display |
| |
Repeater Shift: |
| |
Key lock |
| |
Voice (ENGLISH) |
| |

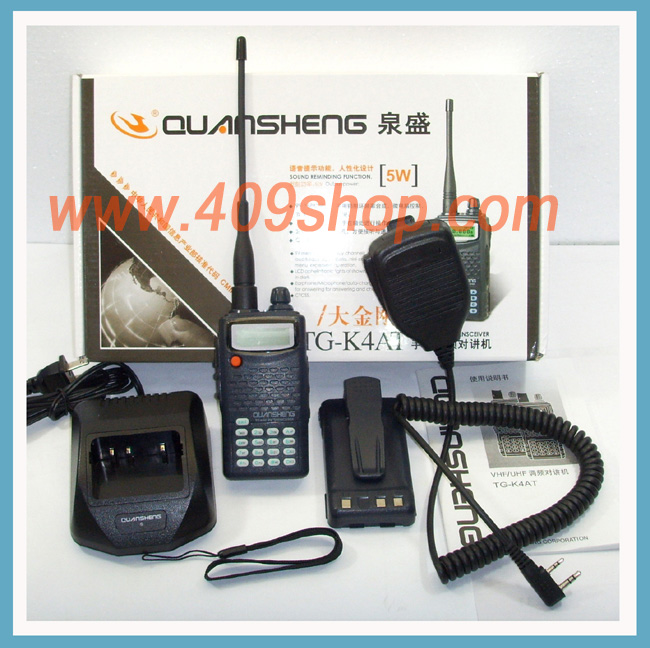

Box include: TG4AT,Charger,antenna,
1100mah batterybelt clip |
|
-
1x TG-K4AT (UHF 400-470Mhz)
-
1x 7.2v 1100mah Battery Pack
-
1x SMA Antenna.
-
1x Belt Clip.
-
1x ENG Manual
-
1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
-
1x Speaker mic
-
1 x WRIST STRAP
|
|
|
|
|
