編號: 1 x TH-446V+4-001K
名稱: 1 x TYT TH-446 VHF 136-174Mhz FM Transceiver radio

優惠價: HKD 546.00
貨幣單位:: HKD
數量: 0
可以寄往: 香港
這拍賣已經不存在或者被管理員暫停了   0
  詳情


TH446 VHF+4-001K

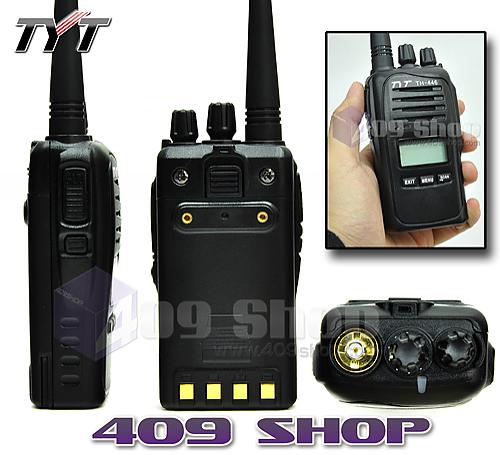

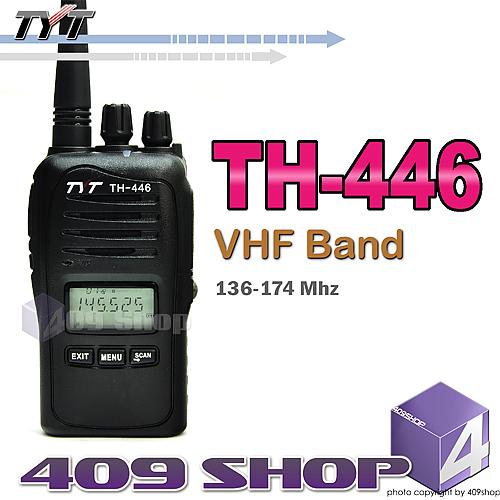

TYT TH446 VHF 136-174Mhz FM Transceiver radio x1set

Main functions
  • Frequency range: VHF (136-174MHz)
    • 128 memory channels
      • Tri-keypads menu operation
        • CH/CH-FR display
          • Wire clone
            • PC programmable
              • CTCSS/DCS encoding and decoding
                • High/low power adjustable
                  • VOX (level adjustable)
                    • CTCSS/DCS scanning/Channel scanning/Priority scanning
                      • Wide/narrow bandwidth selective (PC program)
                        • Reverse frequency
                          • TOT (Time out timer)
                            • Keypad lock
                              • Beep tone

                              Technical parameters


                              Item number
                              TH-446
                              General
                              Frequency Range
                              136-174MHz
                              Channel No.
                              128
                              Frequency Stability
                              ±2.5ppm
                              Antenna
                              High gain antenna
                              Antenna Impedance
                              50Ω
                              Operating Voltage
                              DC 7.2V
                              Mode of operation
                              Simple or semi-duplex
                              Dimensions(W×H×D)
                              116x57x35mm
                              Transmitter
                              Output power
                              ≥5W(H) ≥0.5W(L)
                              Modulation Mode
                              16kΦF3E/ 11kΦF3E
                              Maximum deviation
                              <5kHz/<2.5KHZ
                              Spurious Radiation
                              <7μW
                              Adjacent Ch. power
                              ≥65dB/≥60db
                              Pre-emphasis characteristics
                              6db
                              Current
                              ≤1.6A(5W)
                              CTCSS/DCS deviation
                              0.5kHZ+/-.01kHZ 03kHZ+/-0.1kHZ
                              Intermediation sensitivity
                              8-12mv
                              Intermediation distortion
                              <10%
                              Receiver
                              RF Sensitivity
                              -122dbm(12db SINAD)
                              Audio power
                              >0.5W
                              Audio Distortion
                              ≤10%
                              Intermediation
                              ≥60dB ≥55db
                              Selectivity
                              ≥65dB ≥60db
                              Spurious Rejection
                              ≥65db
                              Blocking
                              ≥85

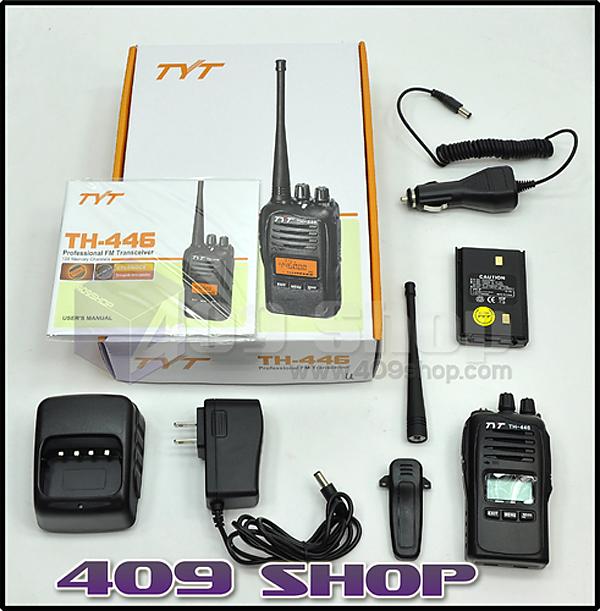

                              Each Set PACKAGE CONTAIN

                              • 1 x TYT TH-446 (VHF 136-174Mhz)
                              • 1 x 7.4V 1300mah Li-ion Battery Pack
                              • 1 x VHF Antenna
                              • 1 x Belt Clip.
                              • 1 x ENG Manual
                              • 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
                              • 1 x Earpiece

                              **本機語言是英語設定,無法轉為中文
                              ***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.
