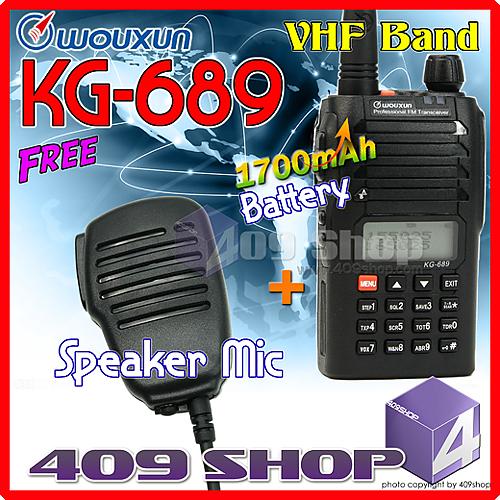

KG689 VHF w/1.7A battery+ 41-27K
WOUXUN KG-689 VHF136-174Mhz w/1.7A battery+ Speaker Mic
Amateur Handheld Transceivers
Transceivers with FM RADIO
With Free Earpiece
- Dualfrequency (VHF Dualfrequency )
- Dualdisplay and standby state
- DTMFencoding and DTMFdecoding
- Output power VHF 5W
- VOX (Level adjustable)
- 105 groups D.C.S/50 groups CTCSS
- All call, group call and select call.
- ANI ID (Caller ID)
- 128 memory channels
- Voice guide (Chinese /English)
- Channel steps(5K/6.25K/10K/12.5K/25K)
- Wide/Narrow brandwidth selection (12.5KHz/25KHz)
- Three color back light can be selectable .
- 1200mAh Li-ion batterypack and intelligentcharge
- Frequency/Channel/Frequency+Channel display mode
- Multi scan mode(TO/CO/SE)
- Calling ring and ring overtime auto answer
- Multi silent mode(QT/QTADT/QTXDT)
- Keyboard lock(Auto/Manual)
- Talk around function
- Busy channel lockout
- Programmable by computer
- Menu/Channel reset
- FM radio function
|
General |
|
Frequency Range |
136-174MHZ |
| Channels |
128 |
| Channel Steps |
5k,10k,6.25k,12.5k,25k |
| Power Supply |
7.2V1200MAh Li-ion |
| Operating Temperature |
-20°C ~ +60°C |
| Antenna impedance |
50Ω |
| Dimension (H x W x D) |
108 x 55 x 38mm |
|
Channels |
Co-channel or Simplex or Duplex |
|
RX
|
| Sensitivity |
<0.20µV |
| Selectivity |
65dB |
| Intermodulation Rejection |
60dB |
| AF Output |
500mW |
| Standby Current |
35mA |
|
|
| Power Output |
5W |
| Modulation Type |
F3E |
| Spurious Emission |
< -65dB |
| Transmit Current |
700mA/350mA |
| Max. Deviation |
±5kHz |
| Modulation Distortion |
< 5% |
| Frequency Stability |
±2.5ppm |
Specifications from WOUXUN company
Free for
Speaker Microphone
Free for
- 1x KG-689 (VHF 136-174MHZ)
- 1x 7.4 1700mah Battery Pack.
- 1x Antenna.
- 1x Wrist Strap
- 1x Belt Clip
- 1x English Manual
- 1x Earpiece
- 1x Desktop Charger *
*100V ~ 240V PSU ( Provide Plug for USA / UK / EURO / Australia)
- 1 x Speaker Microphone
| | |
|
