| Model NO. |
|

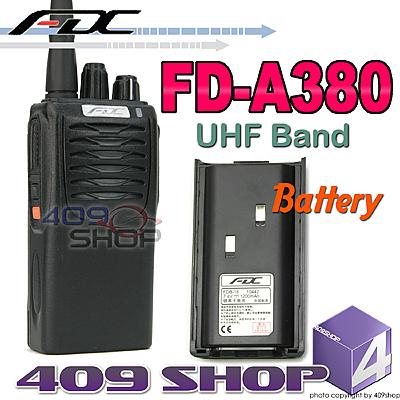

FD-A380 |
| General |
| Frequency Band |
|
UHF |
| Frequency Range |
|
440-470MHz |
| Channel Capacity |
15+1 |
| Operating Voltage |
7.2V DC ±10% |
| Antenna Impedance |
50Ω |
| Channel Spacing |
12.5kHz/25kHz |
| Working Temperature |
-30 ℃ - 60 ℃ |
| Frequency Stability |
±2.5 ppm |
| Size (Without Antenna) |
54(W)x125(L)x34mm(D) |
| Weight(With Battery) |
About 320g |

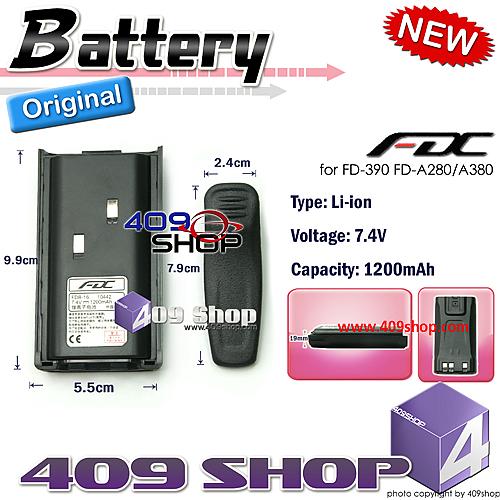

| Battery |
1300 mAh(Ni-Mh)/1200 mAh(Li-ion) |
| Compatible With American Military Standard(MIL-STD-810C/D/E) |
| Transmitter（EIA-RS 316B STANDARD） |
| RF Power Output |
5W/4W |
| Modulation Type |
F3E |
| Modulation Distortion |
< 5%(300-3000Hz) |
| Max Freq Deviation |
< 5kHz(1000kHz When 100%) |
| FM Noise |
<=-45dB |
| Receiver |
| Sensitivity(12Db SINAD) |
0.16μV |
| Selectivity |
55dB |
| Adjacent Channel Selecivity |
>=70dB |
| Noise Respond |
>=60dB |
| Communication Range |
3-5km(Downtown),6-20km(In the Open Area) |
| FM Noise |
45dB/40dB |
| Modulation Type |
8K/16KOF3E |
| Audio Power Output |
500mW When Distortion Less Than 10% |
| Audio Distortion |
< 5% |
| Operating Bandwidth |
±7.5kHz/±3.75kHz |
