編號: KG-689PLUSUHF+41-10K

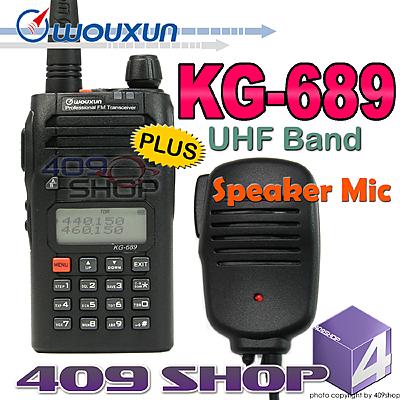

名稱: WOUXUN KG-689 plus UHF/ ANI /FM Radio+Speaker Mic

優惠價: HKD 690.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情


KG-689PLUSUHF+41-10K

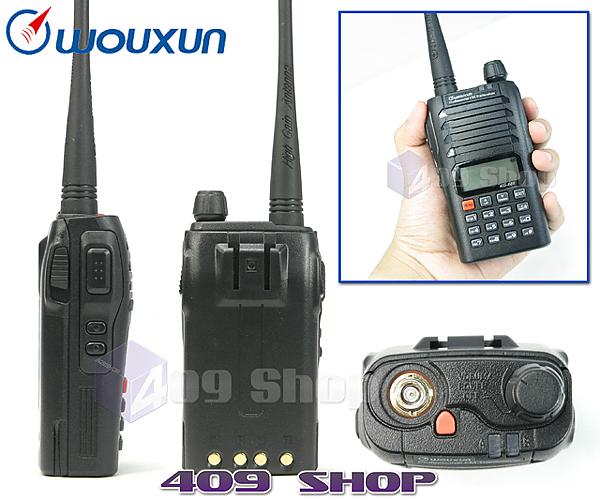

WOUXUN KG689 plus UHF/ ANI /FM Radio + Speaker Mic

Amateur Handheld Transceivers Scrambler set BUILT IN / UHF Dual frequency

Transceivers with FM RADIO

with free earpiece

  • Scrambler set BUILT IN
  • Dualfrequency (UHF Dualfrequency )
  • Dualdisplay and standby state
  • DTMFencoding and DTMFdecoding
  • Scrambler available(4 groups)
  • Output power UHF 4W
  • VOX (Level adjustable)
  • 105 groups D.C.S/50 groups CTCSS
  • All call, group call and select call.
  • ANI ID (Caller ID)
  • 128 memory channels
  • Voice guide (Chinese /English)
  • Channel steps(5K/6.25K/10K/12.5K/25K)
  • Wide/Narrow brandwidth selection (12.5KHz/25KHz)
  • Three color back light can be selectable .
  • 1200mAh Li-ion batterypack and intelligentcharge
  • Frequency/Channel/Frequency+Channel display mode
  • Multi scan mode(TO/CO/SE)
  • Calling ring and ring overtime auto answer
  • Multi silent mode(QT/QTADT/QTXDT)
  • Keyboard lock(Auto/Manual)
  • Talk around function
  • Busy channel lockout
  • Programmable by computer
  • Menu/Channel reset
  • FMradio function






General
Frequency Range

400-470MHZ

Channels
128
Channel Steps
5k,10k,6.25k,12.5k,25k
Power Supply
7.2V1200MAh Li-ion
Operating Temperature
-20°C ~ +60°C
Antenna impedance
50Ω
Dimension (H x W x D)
108 x 55 x 38mm

Channels

Co-channel or Simplex or Duplex
RX
Receiver
Sensitivity
<0.20µV
Selectivity
65dB
Intermodulation Rejection
60dB
AF Output
500mW
Standby Current
35mA
TX
Transmitter
Power Output
4W
Modulation Type
F3E
Spurious Emission
< -65dB
Transmit Current
700mA/350mA
Max. Deviation
±5kHz
Modulation Distortion
< 5%
Frequency Stability
±2.5ppm





Specifications from WOUXUN company

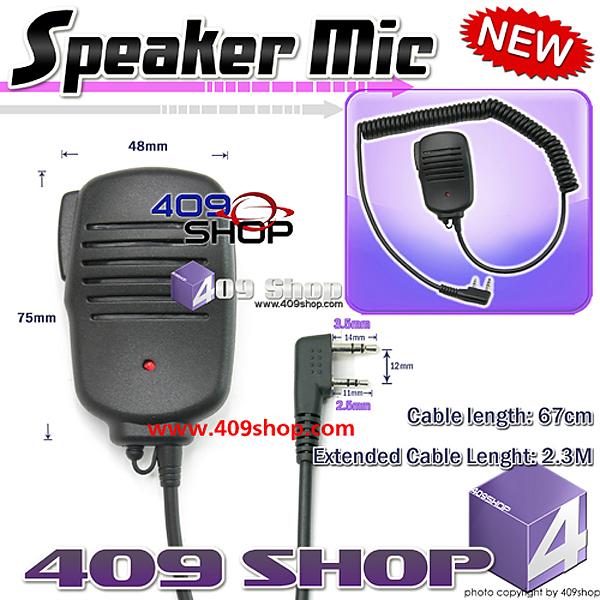

Free For Speaker Mic

Free For

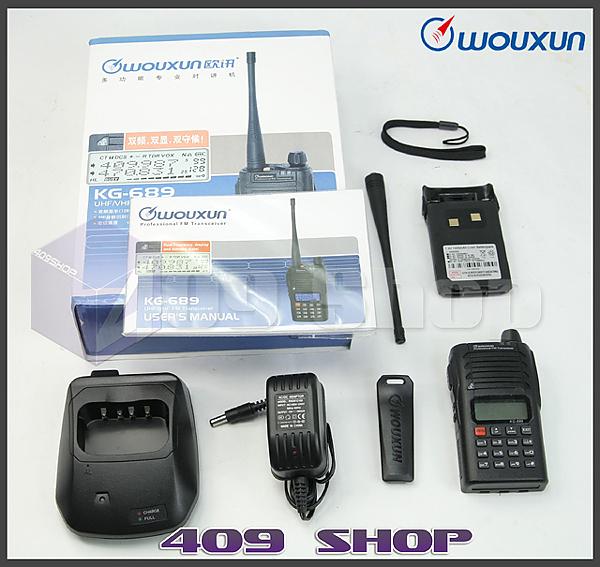

Each Set PACKAGE CONTAIN
  • 1x KG-689 plus (UHF 400-470MHZ)
  • 1x 7.4 1400mah Battery Pack.
  • 1x Antenna.
  • 1x Wrist Strap
  • 1x Belt Clip
  • 1x English Manual
  • 1x Earpiece
  • 1x Desktop Charger *
    *100V ~ 240V PSU ( Provide Plug for USA / UK / EURO / Australia)
  • 1x Speaker Mic
