C-150U

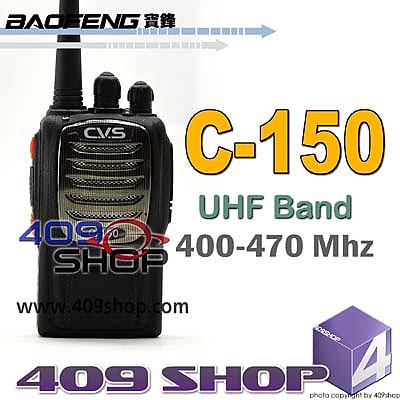

BAOFENG C-150 UHF 400-470Mhz Professional FM Radio
Detailed Product Description
1.High power output:6W
2.high capability battery:2000mAh
3.50 CTCSS 105 CDCSS
FEATURE and FUNCTION:
- 50 CTCSS 105 CDCSS
- VOX Function
- Commercial 16CH
- Voice Prompt
- PC Programming
- High/Low Transmitting Power
- Emergency Alarm
- Intelligent Charging
- Busy Channel Lockout
- Low Voltage Alert
- Time-out Timer
- Battery Save
- Noise Reduction (Compandor)
- Scrambler
- Torch Light.
SPECIFICATION:
| GENERAL |
|
| Frequency Range |
400-470MHz |
| Channel Capacity |
16 |
| Channel Spacing |
12.5/25KHz |
| Operated Voltage |
7.4V |
| Standard Battery |
2000mAh |
| Battery Life |
12 hours |
| Frequency Stability |
2.5ppm(-20 º C ~+60 º C ) |
| Operated Temperature |
-30 º C ~+60 º C |
| Antenna Impedance |
50 Ω |
| Dimensions |
110×52×34mm |
| Weight |
230g |
|
TRANSMITTER |
|
| RF Power Output |
6W |
| Spurious Emission |
65dB |
|
|
| Audio Dsitortion |
5.00% |
| Adjacent Channel Power |
60dB |
| Max Frequency Deviation |
≤2.5KHz (N)/≤5.0KHz (W) |
| Frequency Error |
500Hz |
| Modulation Distortion |
0.1KHz (300-3000KHz) |
| Transmitting Current |
≤1.3A |
|
RECEIVER |
|
| Sensitivity (12dB SINAD) |
0.2uV |
| Adjacent Channel Selectivity |
≥60dB |
| Selectivity |
55dB/50dB |
| Spurious Response Rejection |
-60dB |
|
|
| Audio Power Output @ 8Ω |
1000mW |
| Audio Distortion |
≤5% |
| Receiver Current |
≤700mA |
| Standby Current |
≤130mA |
- 1 x BAOFENG C-150 UHF 400-470Mhz
- 1 x 7.4v 2000mAh Li-ion Battery
- 1 x UHF Antenna.
- 1 x Belt Clip.
- 1 x ENG Manual
- 1 x Charger with Cable /PSU (Provide PSU plug for your Country)
- 1 x WRIST STRAP
| | |
|
