編號: UV-3R PLUS+4-011K
名稱: UV-3R+Plus BAOFENG Dual Band Radio + Ear Loop

優惠價: HKD 195.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情



UV-3R PLUS+4-011K

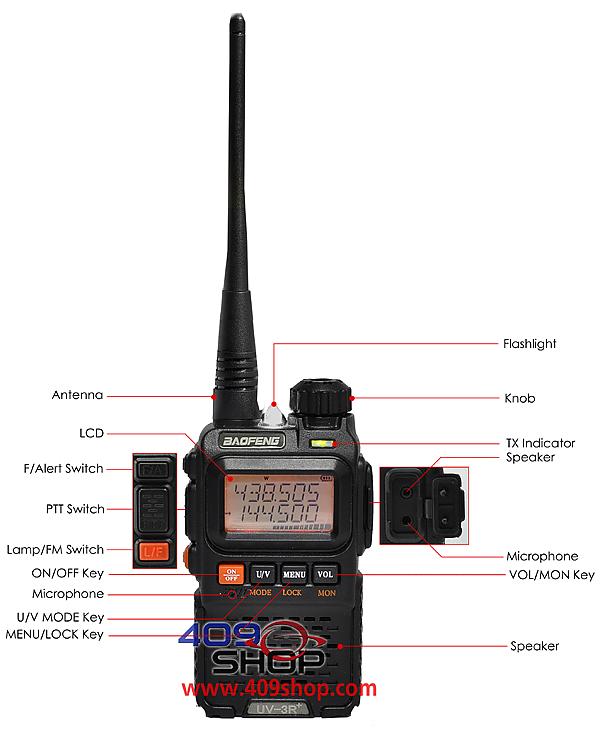

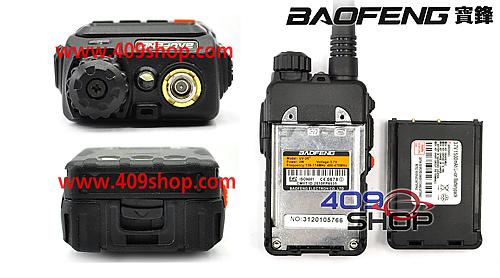

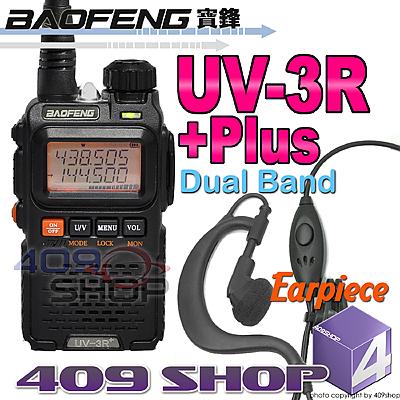

NEW BAOFENG UV-3R Plus
136-174/400-470Mhz Radio

+ Ear Loop

BAOFENG UV-3R The transceiver is a micro-miniature multiband
FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability

VHF/ UHF DUAL-BAND TWO WAY RADIO

  • Frequency Range: 136-174 / 400-470MHz
  • Dual-Band Display, Dual Freq. Display, Dual-Standby
  • Output Power: 2 Watts
  • 99 Channels + 1 Emergency Channel
  • 50 CTCSS and 104 CDCSS
  • Built-in VOX Function
  • 1750Hz Brust Tone
  • FM Radio (87.0MHz-108.0MHz)
  • LED Flashlight
  • Large LCD Display
  • High /Low Power Switchable
  • 25KHz/12.5KHz Switchable
  • Emergency Alert
  • Low Battery Alert
  • Battery Saver
  • Time-out Timer
  • Keypad Lock
  • Monitor Channel
  • Channel Step: 5/6.25/12.5/25KHz





Specifications:

Frequency Range VHF136-174 UHF 400-470MHz (Dual Band)
Operating Voltage 3.7V
Operating Temperature -30c~+60c
Battery (Li-ion)
Antenna Impedance 50 ohm
Dimension(without antenna&battery(L×W×H) 52*87*29(mm)
Weight ( with antenna & + battery) about 150g
Transmitter
RF Power Output UHF:2W
FM Noise 65dB
Adjacent Channel Power 45dB/42dB
Receiver
Spurious response rejection 60dB
Receiver current 400mA
Standby Current 75mA

Earpiece / mic type : Kenwood Plug type
Antenna : SMA -Female

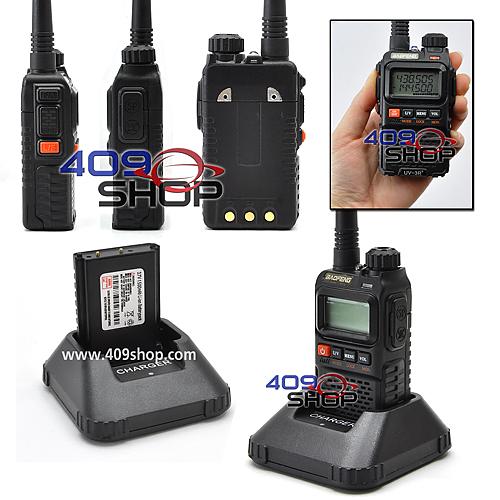

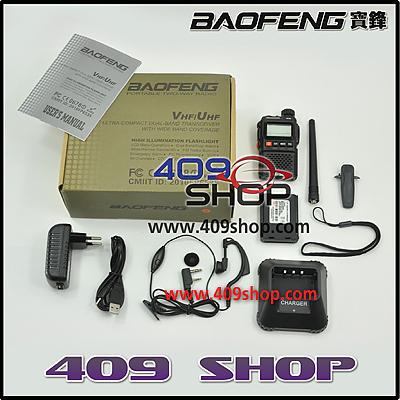

Each Set PACKAGE CONTAIN
1 x BAOFENG UV-3R+Plus (VHF136-174 / UHF 400-470Mhz Dual Band)
1 x 3.7v 1500mah Li-ion Battery
1 x SMA-Female Antenna.
1 x Belt Clip.
1 x ENG Manual
1 x Desktop Charger with Cable /PSU (Provide PSU plug for your Country)

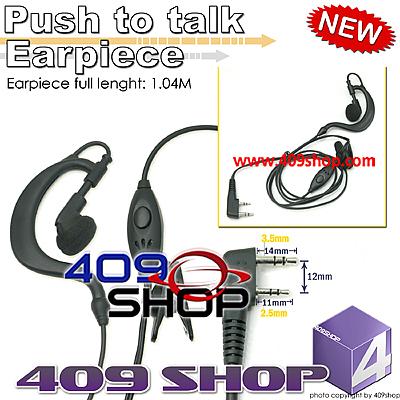

1 x PTT Earpiece for free
1 x WRIST STRAP
1 x 4-011K Ear Loop

Free For Ear Loop





UV-3R +Plus
Test

UV-3R+Plus
Be wheel rolled over

UV-3R+PLUS
Falling down from 5M height

UV-3R+Plus
Change display clear cover
