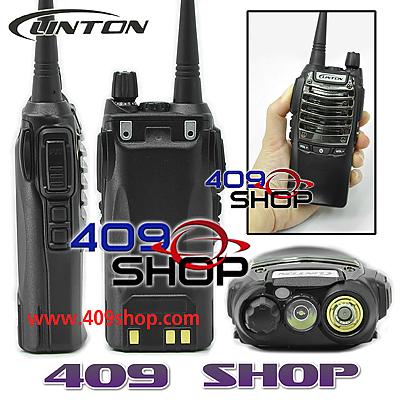

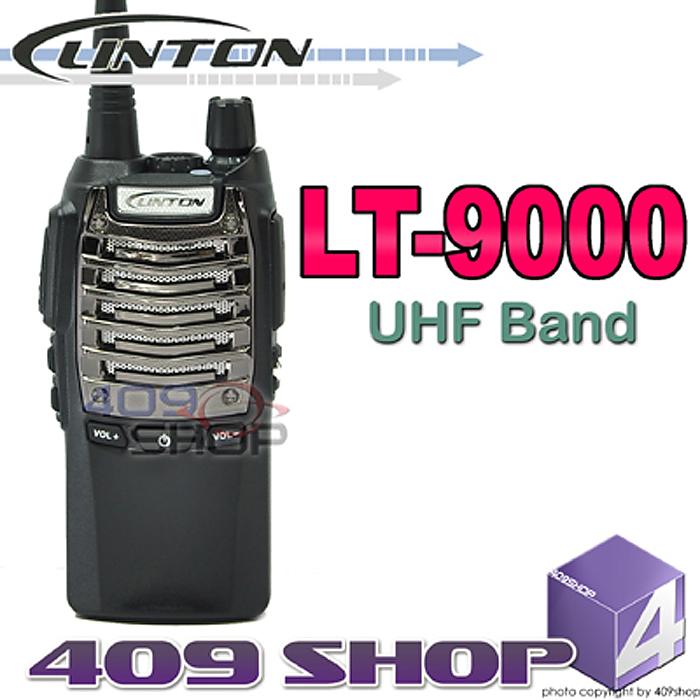

LINTON LT-9000U 400~470mhz Radio

General Specifications

Frequency Range UHF: 400-470MHz

Channel the Capacity 48
12.5/25.0 KHz channel spacing
Working voltage 7.4V
Battery 1600 mAh (lithium ion)
About 15 hours average battery life (5-5-90 duty cycle)
The frequency stability of ± 2.5 the PPM
Operating temperature range -20 ~ +60 ℃
Antenna Impedance 50Ω
Dimensions (H x W x D) (without antenna and batteries) 117 * 52 * 33 mm
Weight (with antenna and battery) 270g
Transmitter
Power output U: 4.0W/1.0W, V: 5.0W/1.0W
Modulation F3E
Noise and harmonic-36dBm <1GHz-30dBm> 1GHz
SNR 40/45dB
Audio Distortion ≤ 5%
Modulation limit ± 2.5 @ 12.5KHz; ± 5.0 @ 25KHz
+1 To -3 dB, audio response
Receiver
Sensitivity ≤ 0.30/0.20uV
Adjacent channel selectivity 60/70dB
Intermodulation 65dB
Spurious response rejection 70dB
SNR 45/40dB
Audio output power 700mW
Audio Distortion ≤ 5%

Optional accessory
