編號: 4-094+44-M328plus
名稱: BIG Switch Forehead/Throat Mic +Mini Din Plug 44-M328plus

優惠價: HKD 172.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情

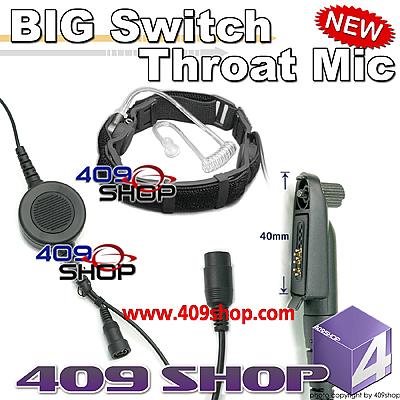

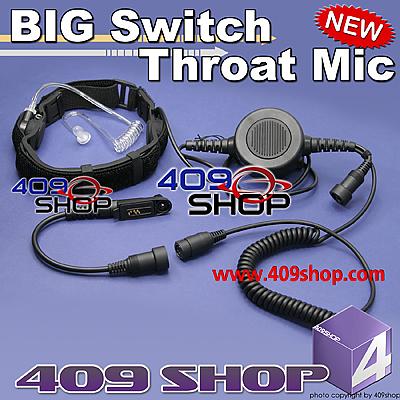

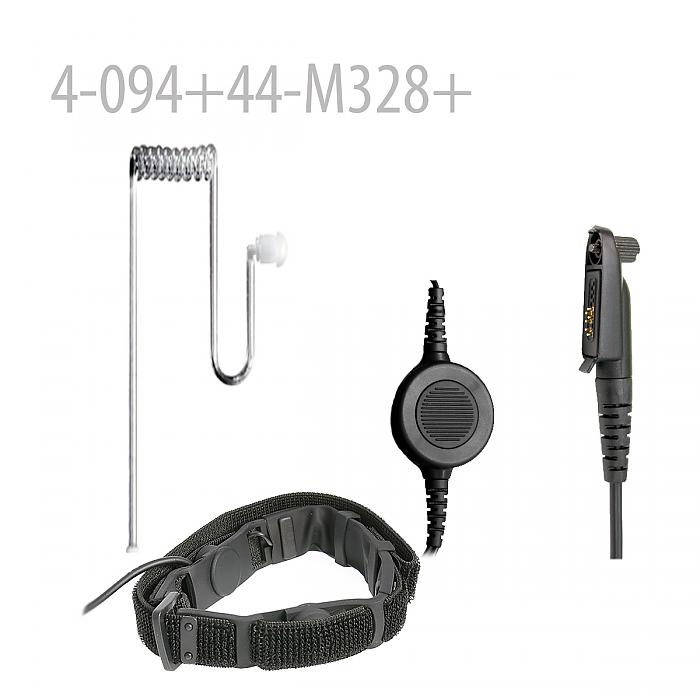

4-094+44-M328plus :BIG SWitch Forehead/Throat Mic
Fit for MOTOROLA GP328PLUS GP338PLUS GP344 (M328+ Plug)

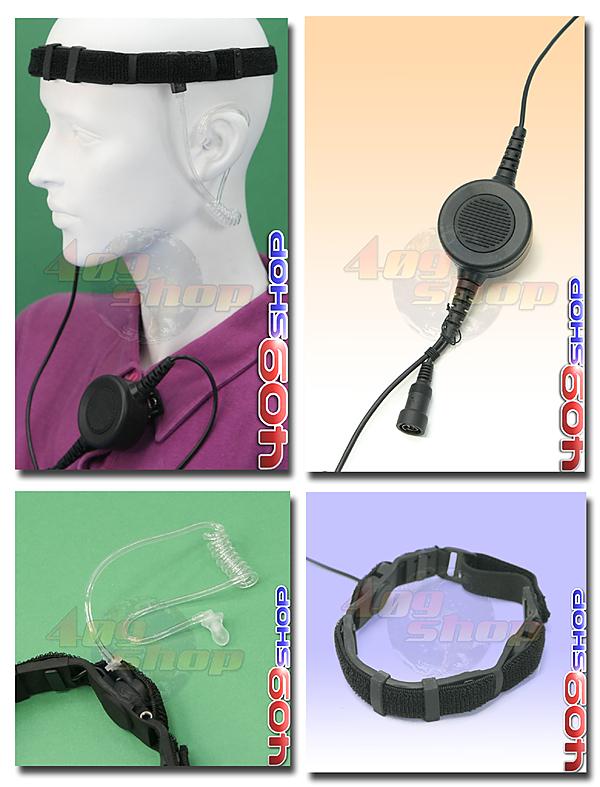

The forehead mic transmits your voice by the vibration of your skull. It transmit crystal clear sound without the need to talk before a boom mic. It is attached to an elastic Velcro strap that suits head sizes from 12 to 25 inches.

The forehead mic can be easily hidden under a helmet or cap. You can also wear it on your throat and it could be easily hidden under the collars.

Since the microphone transmits directly from your forehead or throat, it is not sensitive to the background noise. This is exceptionally ideal for usage in high ambient environment such as driving, riding motorcycles and bicycles. Besides, the easily adjusted Velcro strap fixes the position of the sensor / microphones so that it would not be misplaced even under constant movement. An ideal choice for hardcore operations.

With the best-quality transparent acoustic tube that could hardly be detected by people around you, this is also ideal for surveillance purposes and security at airports, casinos, crowd control at conventions and concerts, and other working environment requiring discreet communications.

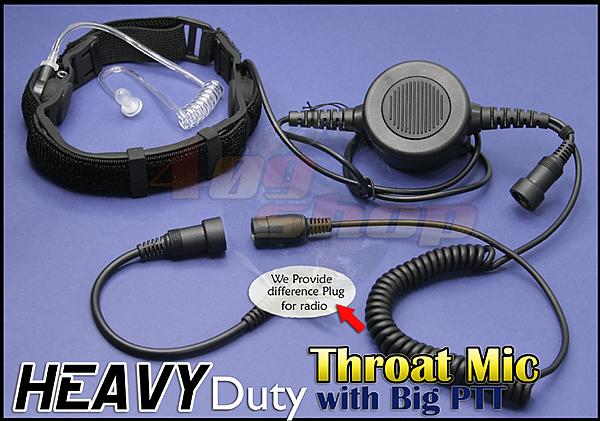

Include BIG PTT switch , For radios it can easy work in PTT mode.

There are two speakers / sound outputs on the forehead mic: the plug for acoustic tube earpiece (provided) and a 3.5mm plug for a pair of standard stereo earphones (not provided).

The plug leading to the two-way radio is also detachable. It is to be connected by a 6-pin mini din plug. The packages comes with the two-way radio plug for the specified models (see specifications on the left). If you would like to work with radios with different accessory jacks, just come and purchase the suitable cables and plug into your throat mic.

Technical data of earphone speaker

-Transducer: moving coil dynamic speaker Impedance: 32Ω +/- 15% @ 1kHZ
-Sensitivity: 120 +/- 3dB @ 1kHZ
-Resonance freq (FO) 400HZ +/- 20%
-Rated input power: 200mW Maximum input power: 500mW

Technical data of microphone

-Sensitivity: -38+/-2dB @ 1kHZ 2.2KΩ 3V 0dB=1v/pa
-Impedance: Max. 2.2kΩ @1kHZ
-Directivity: Omni-directional Frequency: 100Hz - 16000Hz
-Max operation voltage: 10V
-Standard operation voltage: 3V;
-Current consumption: Max. 0.5mA;
-S/N ratio: Min. -58dB @1kHZ

-Best fit forehead / neck size: 12" - 18"












PACKAGE CONTAIN





PACKAGE CONTAIN
  • 1 x BIG SWitch Forehead/Throat Mic
    • 1 x Mini Din Plug for MOTOROLA GP328PLUS GP338PLUS GP344

    C



M328+
Plug

Compatible Radio Models

 MOTOROLA GP328Plus, GP338Plus, GP344, GP388,
GL2000, EX500, EX600, EX600XLS.
KIRISUN PT567










MINI DIN PLUG of Earpiece Series

MINI DIN PLUG of Speaker/Mic Series

Other Mini Din Plug choose :
