MYTQ1V-Y

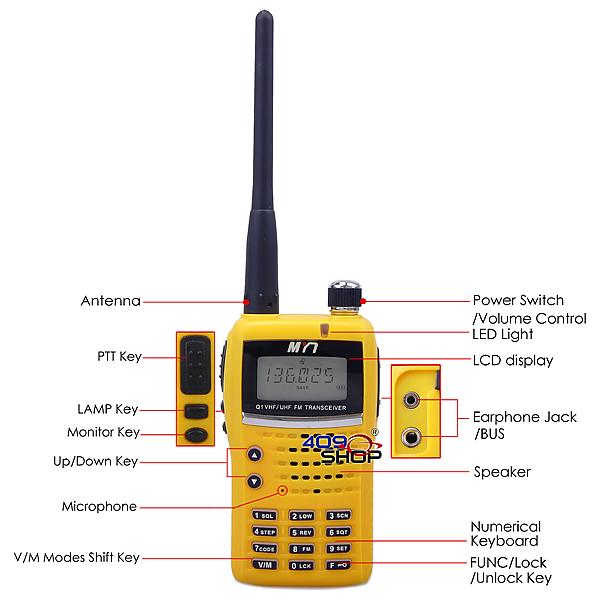

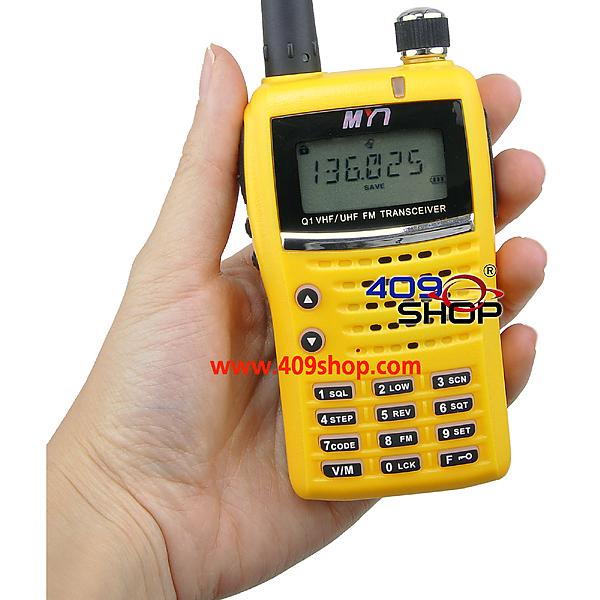

MYT MYT-Q1V (YELLOW) VHF 136~174MHZ FM radio
Function :
- CTCSS/DCS
- Scan
- Backlight
- FM radio
- Keypad lockout
- High/low power selective
- BCL function
- Chinese and English voice prompt
- FM radio
- VOX function
- TOT function
Technical specification :
|
model
|
MYT-Q1
|
|
General Specifications
|
|
Power Supply
|
7.5V DC ±20%
|
|
Operating Temperature
|
-25°C~ + 55°C
|
|
Number of Channels
|
128
|
|
Dimensions
|
120*57*30mm
|
|
Weight
|
215g
|
|
|
|
Transmitter Specifications
|
|
Frequencies - Full Band Split
|
VHF: 136MHz~174MHz
|
|
Frequency Stability(-25 to 55, 25 Ref)
|
2.5ppm
|
|
Power Output
|
5W
|
|
Modulation Limiting
|
±≤5KHz 25KHz
|
|
FM Hum & Noise
|
45dB 25KHz,
|
|
Conducted/Radiated Emission
|
-36dBm < 1GHz, -30dBm > 1GHz
|
|
Adjacent Channel Power
|
-65dB 25KHz,
|
|
Audio Response (300-3000Hz)
|
+3 ~ -3 dB
|
|
Audio Distortion
|
< 5%
|
|
|
|
Receiver Specifications
|
|
Frequencies - Full Bandsplit
|
VHF: 136MHz~174MHz
|
|
Sensitivity(12 dB SINAD)EIA
|
0.25μV 12.5KHz/25KHz typical
|
|
Intermodulation EIA
|
60 dB
|
|
Adjacent Channel Selectivity
|
65 dB 20/25KHz
|
|
Spurious Rejection
|
70 dB
|
|
Rated Audio
|
1W
|
|
Audio Distortion @ Rated Audio
|
5%
|
|
Audio Response (300-3000Hz)
|
+3 ~ -3 dB
|
|
Conducted Spurious Emission
|
-58 dBm<1 GHz, -47 dBm>1GHz
|
**本機語言是英語設定，無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.
Photo will have chromatic aberration compared with the product

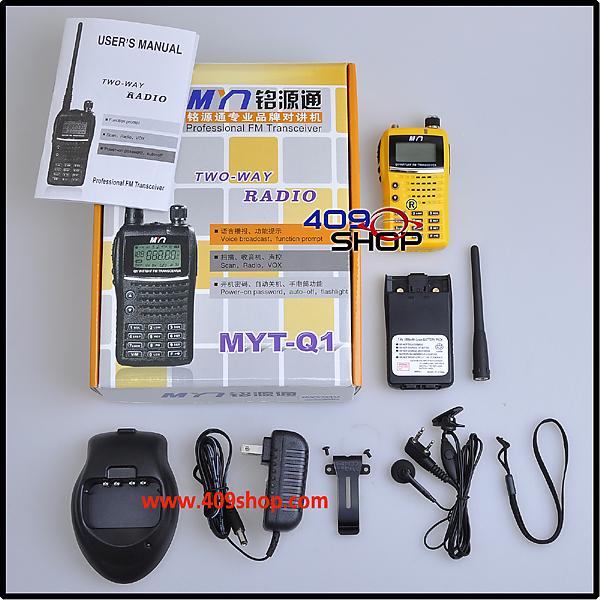

- 1 x MYT MYT-Q1V (yellow) VHF 136~174MHZ FM radio

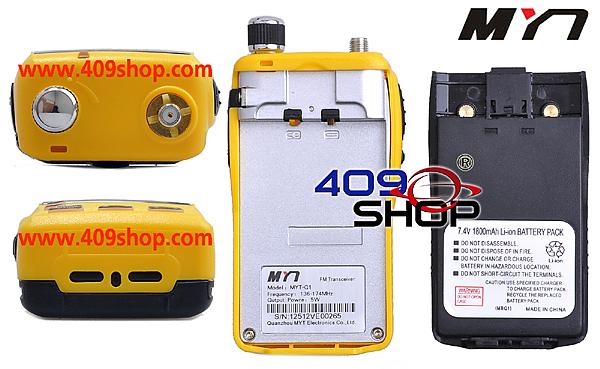

- 1 x 7.4V 1800mah Li-ion Battery Pack
- 1 x VHF BAND SMA-Male Antenna
- 1 x Belt Clip
- 1 x ENG Manual

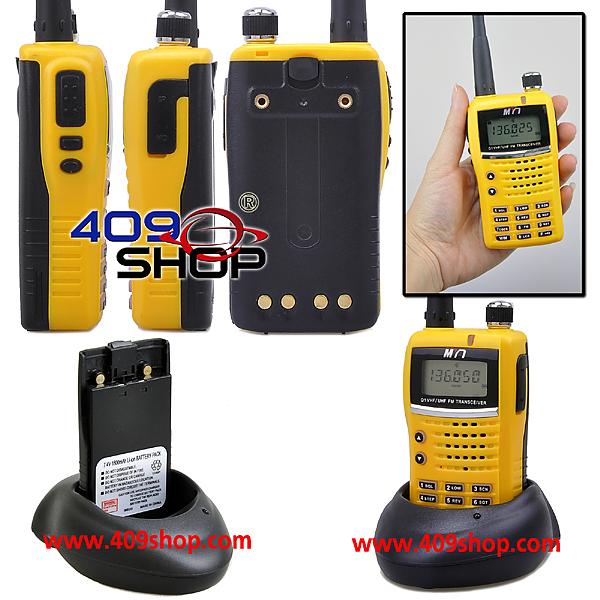

- 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
- 1 x PTT Earpiece for free
- 1 x WRIST STRAP
