WUV5R-CC+SC33+S002

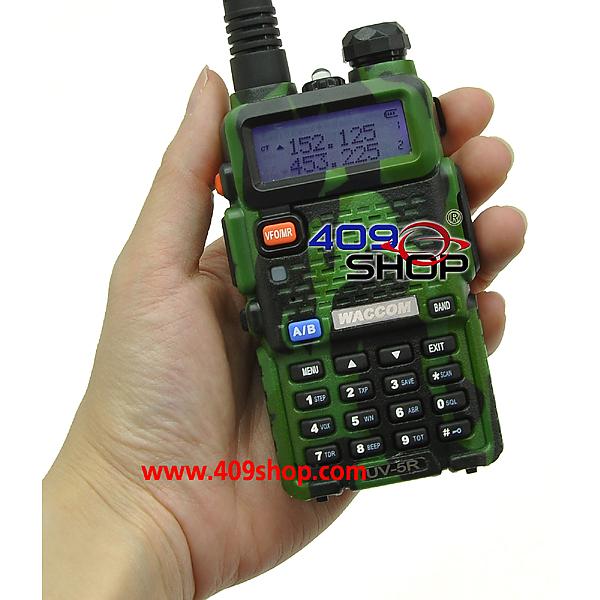

WACCOM WUV5R-CC (Camouflage) U/V Radio + soft case + Adaptor
Features:
WACCOM WUV-5R The transceiver is a micro-miniature multiband FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability
VHF/UHF DUAL-BAND TWO WAY RADIO:
- Frequency Range: 136-174 / 400-480MHz
- Dual-Band Display, Dual Freq. Display, Dual-Standby
- Output Power: 5Watts
- 128 Channels
- 50 CTCSS and 104 CDCSS
- Built-in VOX Function
- 1750Hz Burst Tone
- FM Radio (65.0MHz-108.0MHz)
- LED Flashlight
- Large LCD Display
- High /Low RF Power Switchable
- 25KHz/12.5KHz Switchable
- Emergency Alert
- Low Battery Alert
- Battery Saver
- Time-out Timer
- Keypad Lock
- Monitor Channel
- Channel Step: 2.5/5/6.25/10/12.5/25KHz
- ROGER SET
■ Dual band, dual display, dual standby |
■ A/B band independent operation |
■ 128 groups channels storage |
■ Shortcut menu operation mode |
■ VFO & Memory channels scan |
■ Emergency Alarm |
■ Tri-color background light selectable |
■ 0~9 grades VOX selectable |
■ PTT & ANI ID |
■ FM radio |
■ Voice commanding |
■ CTCSS/DCS |
■ |
■ PC programmable |
■ Wide/Narrow Band(25kHz/12.5kHz) |
■ Transmitter time-out timer(TOT) |
■ High/Low TX power selectable |
■ Busy channel lock-out(BCLO) |
■ |
■ |
■ |
■ |
Specifications:
Item number |
WUV-5R |
General |
Frequency Range |
65-108MHz(FM Receive only) |
136-174MHZ and 400-480MHZ (TX/RX) |
Channel No. |
128 |
Frequency Stability |
±2.5ppm |
Antenna |
High gain Dual Band antenna |
Antenna Impedance |
50Ω |
Operating Voltage |
DC 7.4V |
Mode of operation |
Simple or semi-duplex |
Dimension(W x H x D) |
100 x 52 x 32 mm |
Weight |
250g(including battery, antenna) |
Transmitter |
Output power |
VHF 5W,UHF4W |
Modulation Mode |
16kΦF3E / 11kΦF3E |
Maximum deviation |
<5kHz(Wide) / <2.5kHz(Narrow) |
Spurious Radiation |
<7μW |
Adjacent Ch. power |
≤-65dB(Wide) / ≤-60dB(Narrow) |
Pre-emphasis characteristics |
6dB |
Current |
≤1.6A(5W) |
CTCSS/DCS deviation |
0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
Intermediation sensitivity |
8-12mv |
Intermediation distortion |
<10% |
Photo will have chromatic aberration compared with the product
Earpiece / mic type : Kenwood Plug type Antenna : SMA -Female
FREE FOR soft case + Adaptor
FREE FOR
![](http://www.yaesu.hk/pic/409shop/SC33.jpg)
![](http://www.yaesu.hk/pic/409shop/S002.jpg)

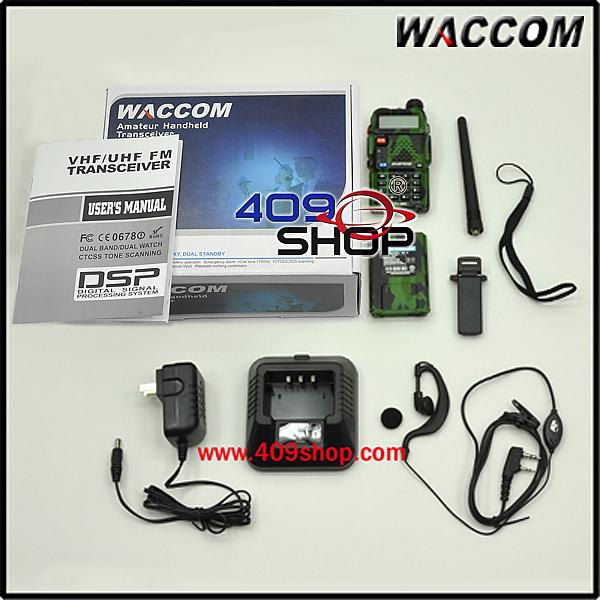

- 1 x WACCOM WUV-5R (Camouflage) (VHF136-174Mhz UHF 400-480Mhz)

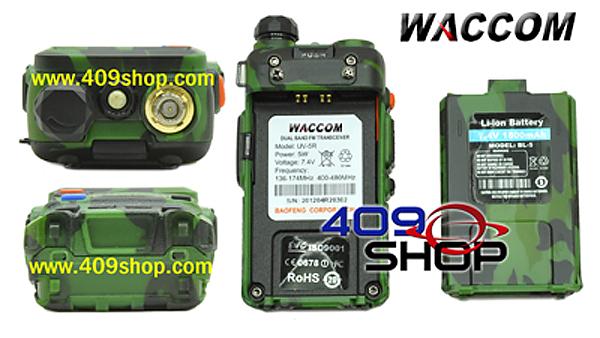

- 1 x 7.4V 1800mah Li-ion Battery Pack
- 1 x Antenna 136-174/400-470Mhz
- 1 x Belt Clip
- 1 x ENG Manual
- 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
- 1 x PTT Earpiece
- 1 x SC33 soft case
- 1 x S002 Adaptor
