■ Dual band, dual display, dual standby
|
■ A/B band independent operation
|
|
■ 128 groups channels storage
|
■ Shortcut menu operation mode
|
|
■ VFO & Memory channels scan
|
■ Emergency Alarm
|
|
■ Tri-color background light selectable
|
■ 0~9 grades VOX selectable
|
|
■ PTT & ANI ID
|
■ FM radio
|
|
■ Voice companding
|
■ 50 CTCSS/104 DCS
|
|
■
|
■ PC programmable
|
|
■ Wide/Narrow Band(25kHz/12.5kHz)
|
■ Transmitter time-out timer(TOT)
|
|
■ High/Low TX power selectable
|
■ Busy channel lock-out(BCLO)
|
|
■
|
■
|
|
■
|
■
|
Specifications:
|
Item number
|
UV5RA-UU
|
|
General
|
|
Frequency Range
|
65-108MHz(FM Receive only)
|
|
136-174MHZ and 400-520MHZ (TX/RX)
|
|
Channel No.
|
128
|
|
Frequency Stability
|
±2.5ppm
|
|
Antenna
|
High gain DualBand antenna
|
|
Antenna Impedance
|
50Ω
|
|
Operating Voltage
|
DC 7.4V
|
|
Mode of operation
|
Simple or semi-duplex
|
|
Dimension（W x H x D）
|
100 x 52 x 32 mm
|
|
Weight
|
250g（including battery, antenna）
|
|
Transmitter
|
|
Output power
|
4W / 1W (Max 5W)
|
|
Modulation Mode
|
16kΦF3E / 11kΦF3E
|
|
Maximum deviation
|
＜5kHz(Wide) / ＜2.5kHz(Narrow)
|
|
Spurious Radiation
|
＜7μW
|
|
Adjacent Ch. power
|
≤-65dB(Wide) / ≤-60dB(Narrow)
|
|
Pre-emphasis characteristics
|
6dB
|
|
Current
|
≤1.6A(5W)
|
|
CTCSS/DCS deviation
|
0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
|
|
Intermediation sensitivity
|
8-12mv
|
|
Intermediation distortion
|
＜10%
|
Earpiece / mic type : Kenwood Plug type
Antenna : SMA -Female

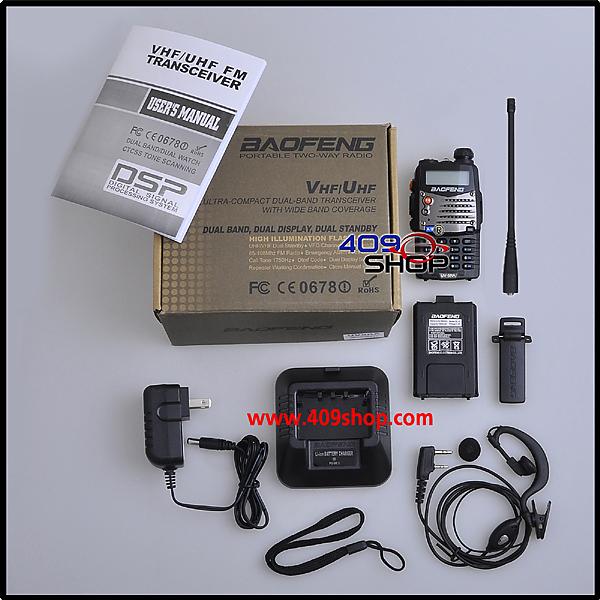

Each Set PACKAGE CONTAIN
1 x UV5RA-UU (VHF136-174Mhz UHF 400-520Mhz)
1 x 7.4V 1800mah Li-ion Battery Pack
1 x Dual Band SMA-Female Antenna
1 x Belt Clip
1 x ENG Manual
1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
1 x PTT Earpiece for free
