S785U
KIRISUN S785U UHF 400-470MHZ DIGITAL TWO WAY RADIO
KIRISUN S785U The transceiver is a micro-miniature multiband
FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability
UHF Digital TWO WAY RADIO
Product Features:
Excellent noise suppression, digital voice clarity
Digital / analog compatible analog devices to ensure a smooth transition
Ten million sets of figures key voice encryption, safe and secure
Digital intelligent signaling, richer management scheduling function
Digital features:
1, FDMA frequency division multiple access technology, doubling the spectrum utilization
2, support digital mode, analog mode
3, the digital voice encryption
4, a variety of call mode, all call, group call, a call, emergency call
5, PTT default contact (group) call
6, the emergency alarm (single, joint) 3 × 4 modes
7, Stun, activate
8, the working status query
9, the digital power saving mode
10, ringtones tips
11, firmware programming mode (software upgrades)
General features:
1, voice broadcast
2, the emission of high and low power selectable
3, three-color LED indicates sending, receiving, scanning and other state
4, channel lock
5, whisper function
6, sub audio / digital tone
7, the end eliminate
8, the monitoring function
9, mixed scanning
10, TOT emission limit protection
11, the calculator
|
Technical parameters
|
S785
|
|
General Specifications
|
|
Frequency
|
400—470MHz
|
|
Number of channels
|
16
|
|
Channel spacing
|
12.5kHz
|
|
Operating Temperature
|
-25℃~+55℃
|
|
Antenna Impedance
|
50Ω
|
|
Microphone impedance
|
2.2kΩ
|
|
Frequency Stability
|
±2.5ppm
|
|
Battery (standard configuration)
|
Model: KB-785, lithium battery
DC 7.4V ± 20% 1500mAh
|
|
Volume (length × width × thickness)
|
116 mm x54 mm x30 mm
|
|
Weight
|
136 g (main unit only) / 243 g (with battery and antenna host)
|
|
Receiving part
|
|
Sensitivity
|
≤-121dBm
|
|
Adjacent Channel Selectivity
|
≥60
|
|
Intermodulation Immunity
|
≥60Db
|
|
Spurious response
|
≥60dB
|
|
Audio output power
|
≥ 1000mW (distortion is less than 5%, 16Ω load)
|
|
Audio response
|
Analog: +2 / -6 dB
|
|
Transmitting section
|
|
RF Power
|
4W (High) / 1W (low)
|
|
Modulation
|
Digital: 4FSK Analog: 16KΦF3E/11KΦF3E
|
|
Clutter and harmonic
|
≤-36dBm
|
|
SNR
|
Analog:> 35 dB
|
|
Audio Distortion (300-3000Hz)
|
≤3%
|
|
Modulation limiting
|
Digital: ± 2.5kHz
|
|
Modulation characteristics
|
Analog: +2 / -6 dB
|
(***對講機只供出口用/Radio for Export Only***)
Photo will have chromatic aberration compared with the product

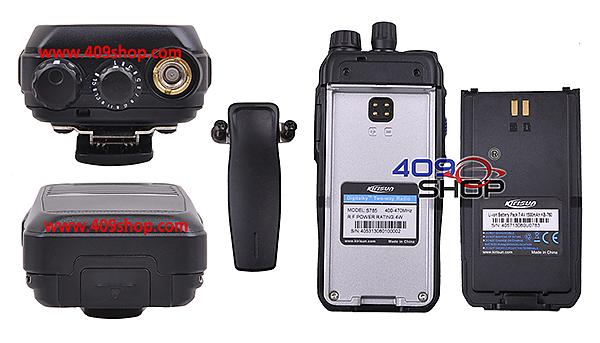

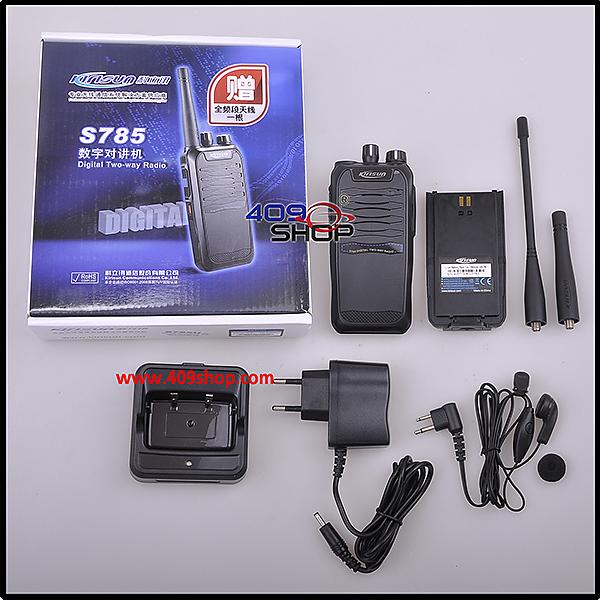

- 1 x KIRISUN S785U VERSION (400—470MHz) DIGITAL TWO WAY RADIO
- 1 x 7.4V 1500mAh Li-ion Battery Pack
- 2 x UHF SMA-Female Antenna
- 1 x Belt Clip
- 1 x ENG Manual
- 1 x Desktop Charger +(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
- 1 x PTT Earpiece for free
