■ Dual band, dual display, dual standby

■ A/B band independent operation

■ 128 groups channels storage

■ Shortcut menu operation mode

■ VFO & Memory channels scan

■ Emergency Alarm

■ Tri-color background light selectable

■ 0~9 grades VOX selectable

■ PTT & ANI ID

■ FM radio

■ Voice companding

■ 50 CTCSS/104 DCS

■

■ PC programmable

■ Wide/Narrow Band(25kHz/12.5kHz)

■ Transmitter time-out timer(TOT)

■ High/Low TX power selectable

■ Busy channel lock-out(BCLO)

■

■

■

■

Item number

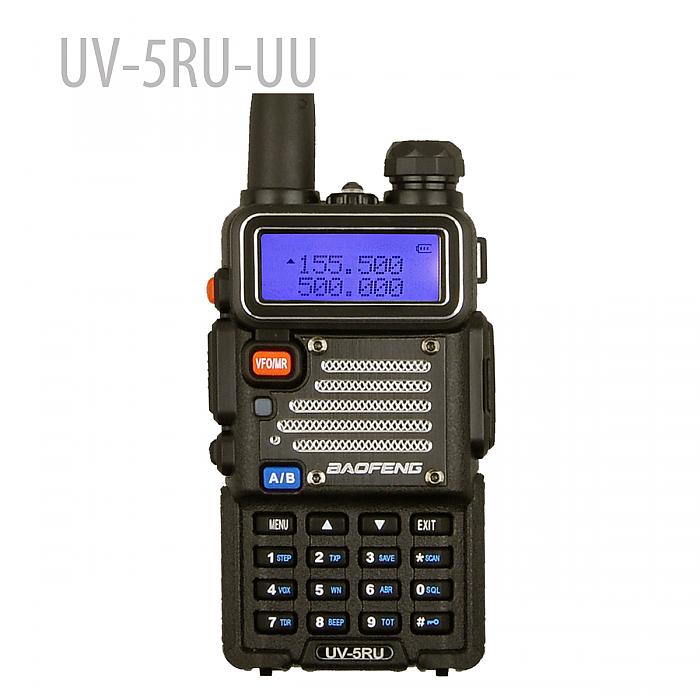

UV5RU-UU

General

Frequency Range

65-108MHz(FM Receive only)

136-174MHZ and 400-520MHZ (TX/RX)

Channel No.

128

Frequency Stability

±2.5ppm

Antenna

High gain DualBand antenna

Antenna Impedance

50Ω

Operating Voltage

DC 7.4V

Mode of operation

Simple or semi-duplex

Dimension（W x H x D）

58 x 110 x 32 mm

Weight

250g（including battery, antenna）

Transmitter

Output power

4W / 1W (Max 5W)

Modulation Mode

16kΦF3E / 11kΦF3E

Maximum deviation

＜5kHz(Wide) / ＜2.5kHz(Narrow)

Spurious Radiation

＜7μW

Adjacent Ch. power

≤-65dB(Wide) / ≤-60dB(Narrow)

Pre-emphasis characteristics

6dB

Current

≤1.6A(5W)

CTCSS/DCS deviation

0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)

Intermediation sensitivity

8-12mv

Intermediation distortion

＜10%
