編號: SR-628+2x46-S
名稱: SR-628 cross band Duplex Repeater Controller with ICOM Cable

優惠價: HKD 410.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情


SR-628 +2X 46-S

SR-628 cross band Duplex Repeater Controller with ICOM Cable

Features

SR-628 Duplex Repeater Controller

The SR-628 is a multi-function and cheaper device that connects any handheld or mobile radio.

By equipment and so on our assemble the build, the new generation trunk-line board, the internal structure design are finer, the outward appearance is more attractive. Besides can provide a the basic repeater function which has following the receiver transmitter, furthermore has the Simple connection, provides the more ideal 2-way radio conversation region for you, causes you maintains the relation in the bigger operating region.

When the radio units are connected, the received signal on a radio unit will be real time transmit on the other radio unit.

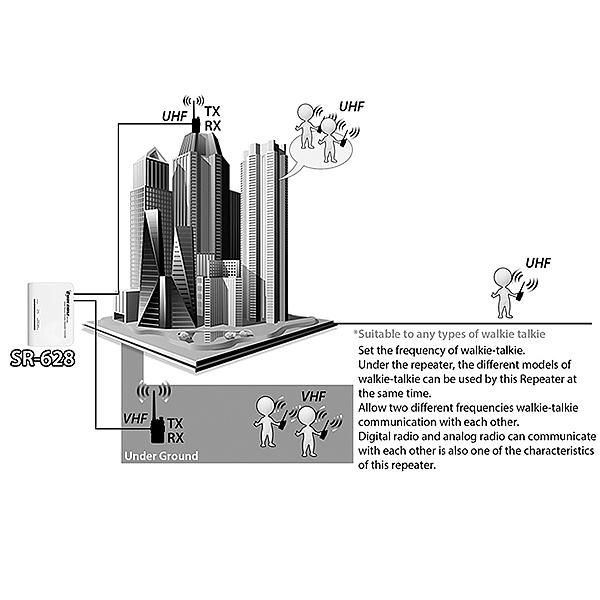

e.g. VHF/VHF, UHF/UHF, VHF/UHF or UHF/VHF modes
Input A: Channel A is TX When channal B is RX.
Input B :Channel B is TX When channel A is RX .

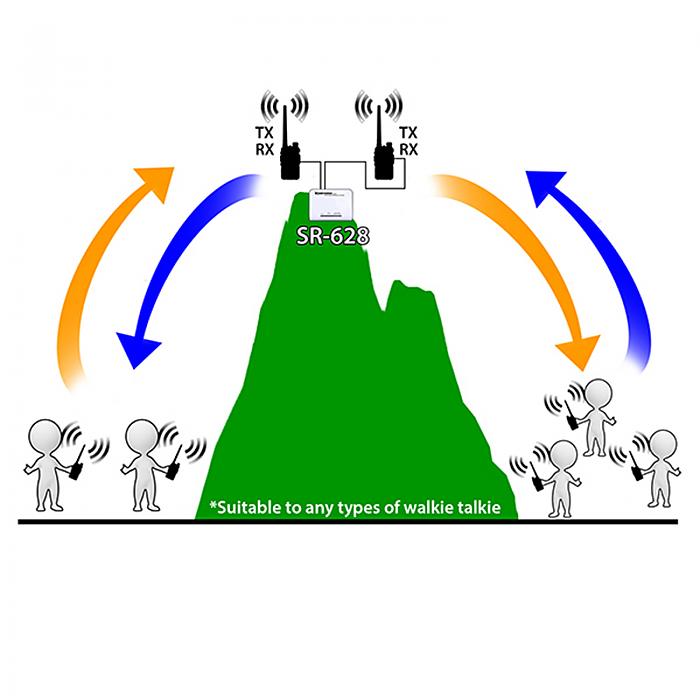

The purpose can be done in two different places and using different frequency bands intercom, through our mutual communication relay station.

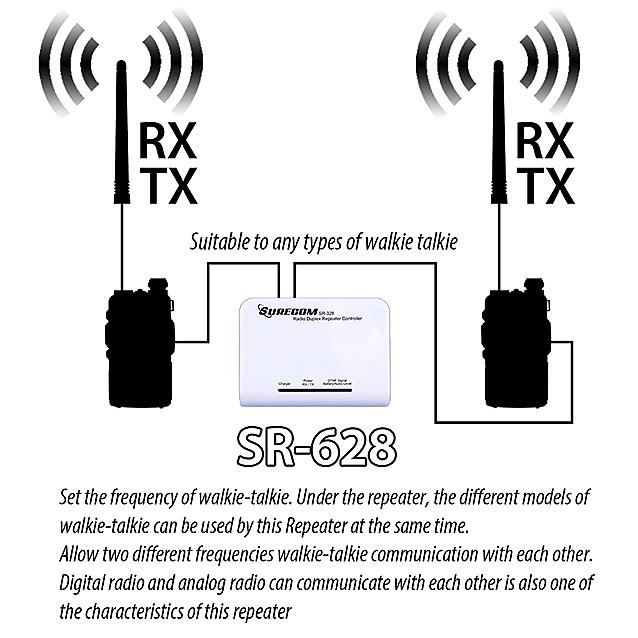

This is a radio cross band duplex repeater controller. It is an easy of operation and cost effective and highly flexible platform for setting up bi-direction cross band duplex repeater with mobile radio and handheld radio.

The SR-628 has 2 audio ports input and out , they are used to connect with mobile and handheld radio. DTMF remote control function with password protection is available in the . User can control the repeater ON or OFF remotely by DTMF. Multi-LED display 2 of radio status , and build-in battery Level

Major Features

  • Works with most popular handheld radios
  • Multi- LED display 2 radio status , And controller Battery Level
  • Real time duplex repeater with link radio
  • Allows user to change the DTMF remote control password by radio
  • Operates on both build-in Li-ion battery 72 hours long life operation
  • External DC 5~24V power supply
  • DTMF remote control repeater function ON and OFF with password protection
  • Professional manufacturer low power consumption .

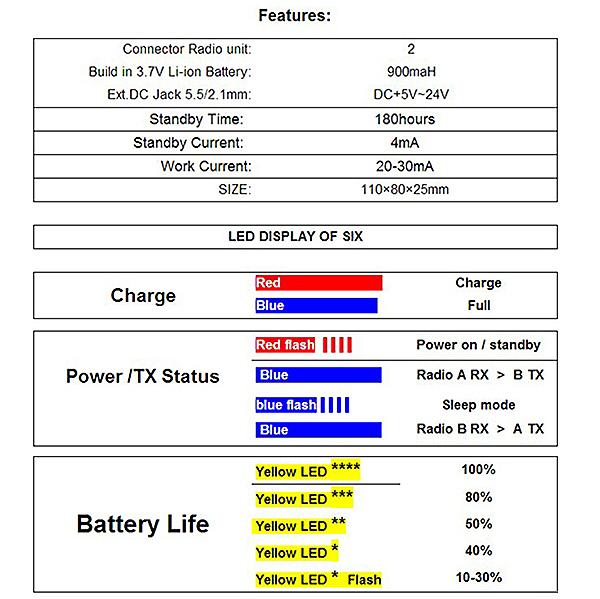

Connector Radio unit:

2

Build in 3.7V Li-ion Battery:

900maH

Ext.DC Jack 5.5/2.1mm:

DC5V~24V

Standby Time:

180hours

Standby Current:

4mA

Work Current:

20-30mA

Size:

110x80x25mm

Operating temperature: -10°C to +50°C

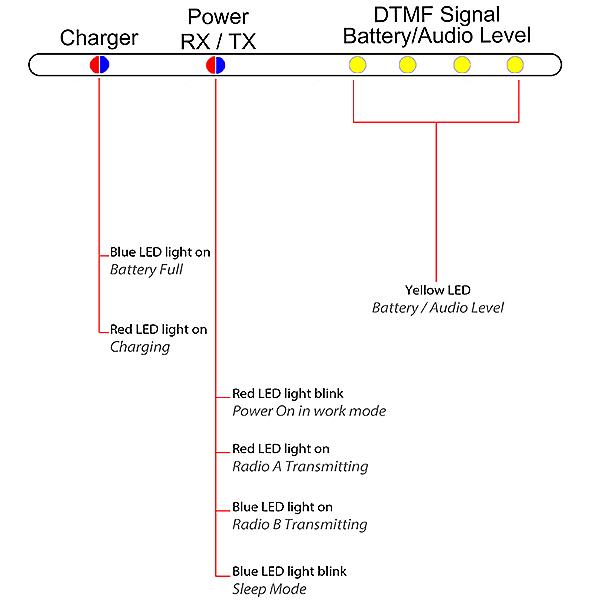

LED DISPLAY

Charge

Red               Charge/DC in

Blue                  Full

Power

Red                 Power on

Red flash            Sleep mode

Status

Red             Radio A RX , B TX

Blue             Radio B RX , A TX

Battery Life

Yellow LED             100%

Yellow LED***          80%

Yellow LED**           50%

Yellow LED*            40%

Yellow LED*Flash       10~30%





Photo will have chromatic aberration compared with the product

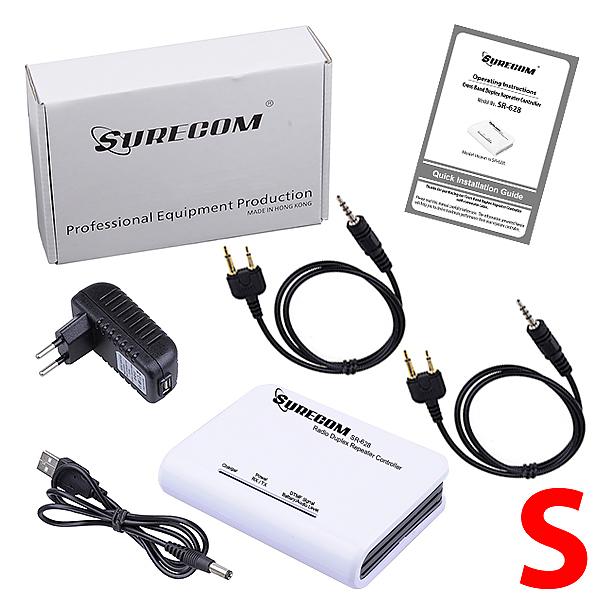

PACKAGE CONTAIN
  • 1 x SR628 Duplex Repeater Controller
  • 1 x 100-240V power supply unit
  • 2 x ICOM Radio connect cable

MA





S
Plug

Compatible Radio Models

ICOM
IC-T7H ,IC-W32A,IC-F3,IC- F3S,IC- F4, IC-F4S,IC- F4TR,
IC-F10, IC-H2,IC- H6,IC- J12, IC-M5, IC-U12, IC-U16, IC-4008, IC-4088A
Cobra
(All 2-Pin)
Motorola
Talkabout
200, 250 Distance, Distance DPS
Ritron
Patriots
Series
RTX, SST, Jobcom, JMX, MBX, JMX-102,
JMX-141, JMX-144,JMX-146,JMX-152,
 JMX-441, JMX-444,JMX-446,  JMX-452, Patriot SST plus
Motorola
5500
Vertex
VX200-VX500- VX510-VX52OUD
