編號: SR-628+2x46-M
名稱: SR-628 cross band Duplex Repeater Controller with Motorola FDC Cable

優惠價: HKD 410.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情


SR-628 +2X 46-M

SR-628 cross band Duplex Repeater Controller with Motorola FDC Cable

Features

SR-628 Duplex Repeater Controller

The SR-628 is a multi-function and cheaper device that connects any handheld or mobile radio.

By equipment and so on our assemble the build, the new generation trunk-line board, the internal structure design are finer, the outward appearance is more attractive. Besides can provide a the basic repeater function which has following the receiver transmitter, furthermore has the Simple connection, provides the more ideal 2-way radio conversation region for you, causes you maintains the relation in the bigger operating region.

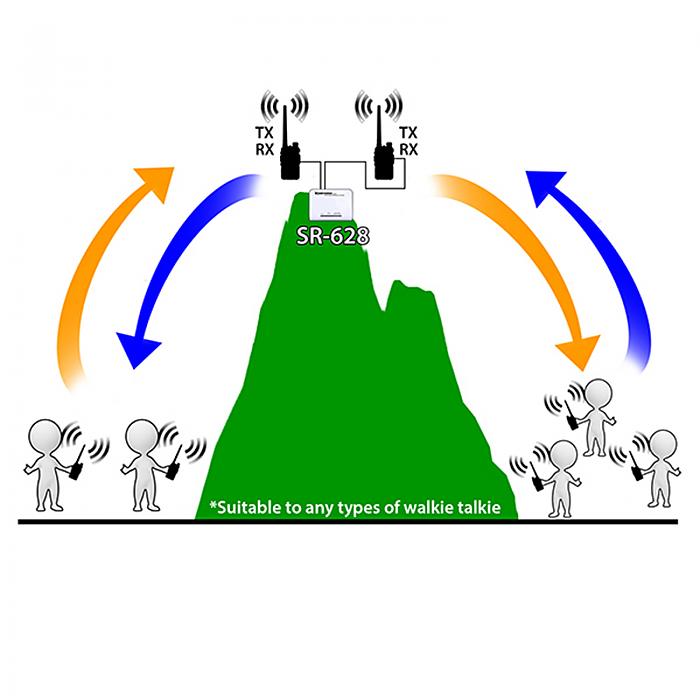

When the radio units are connected, the received signal on a radio unit will be real time transmit on the other radio unit.
e.g. VHF/VHF, UHF/UHF, VHF/UHF or UHF/VHF modes
Input A: Channel A is TX When channal B is RX.
Input B :Channel B is TX When channel A is RX .

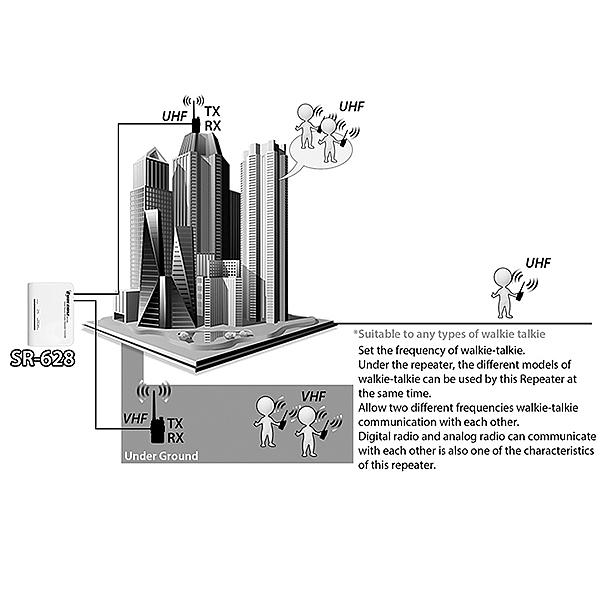

The purpose can be done in two different places and using different frequency bands intercom, through our mutual communication relay station.

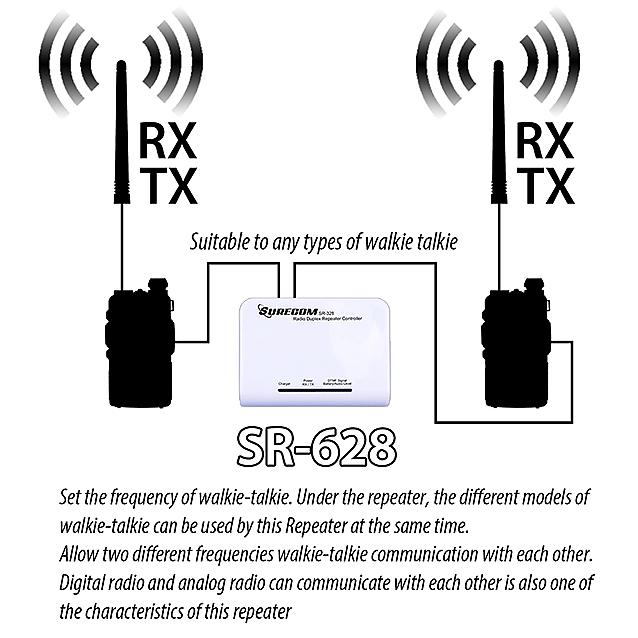

This is a radio cross band duplex repeater controller. It is an easy of operation and cost effective and highly flexible platform for setting up bi-direction cross band duplex repeater with mobile radio and handheld radio.

The SR-628 has 2 audio ports input and out , they are used to connect with mobile and handheld radio. DTMF remote control function with password protection is available in the . User can control the repeater ON or OFF remotely by DTMF. Multi-LED display 2 of radio status , and build-in battery Level

Major Features

  • Works with most popular handheld radios
  • Multi- LED display 2 radio status , And controller Battery Level
  • Real time duplex repeater with link radio
  • Allows user to change the DTMF remote control password by radio
  • Operates on both build-in Li-ion battery 72 hours long life operation
  • External DC 5~24V power supply
  • DTMF remote control repeater function ON and OFF with password protection
  • Professional manufacturer low power consumption .

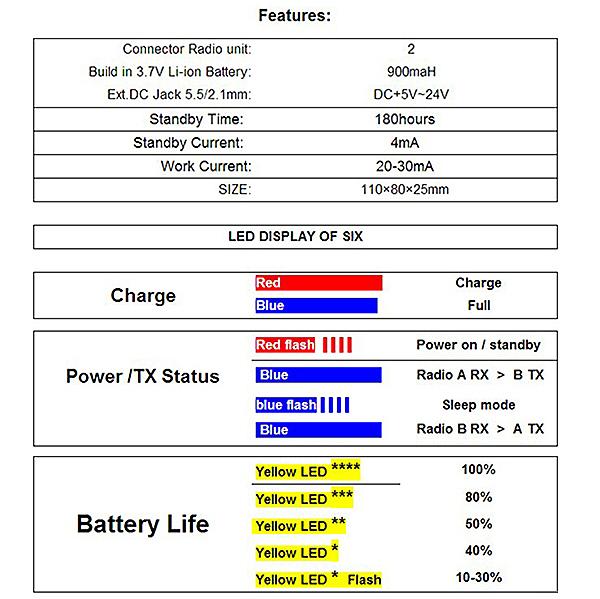

Connector Radio unit:

2

Build in 3.7V Li-ion Battery:

900maH

Ext.DC Jack 5.5/2.1mm:

DC5V~24V

Standby Time:

180hours

Standby Current:

4mA

Work Current:

20-30mA

Size:

110x80x25mm

Operating temperature: -10°C to +50°C

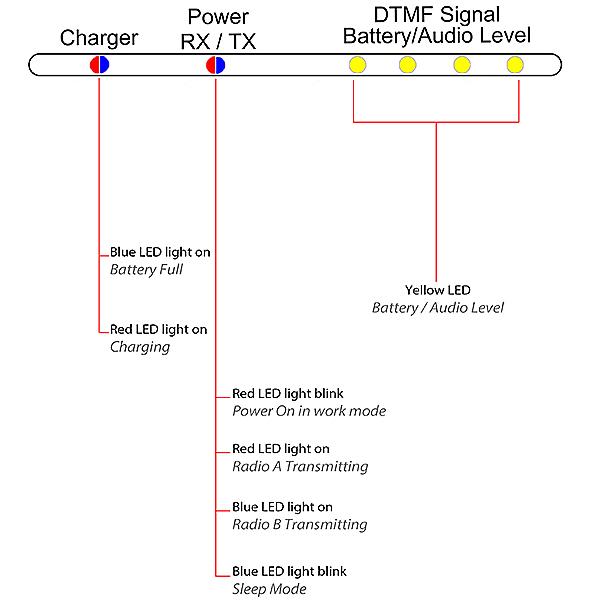

LED DISPLAY

Charge

Red               Charge/DC in

Blue                  Full

Power

Red                 Power on

Red flash            Sleep mode

Status

Red             Radio A RX , B TX

Blue             Radio B RX , A TX

Battery Life

Yellow LED             100%

Yellow LED***          80%

Yellow LED**           50%

Yellow LED*            40%

Yellow LED*Flash       10~30%









Photo will have chromatic aberration compared with the product

PACKAGE CONTAIN
  • 1 x SR628 Duplex Repeater Controller
  • 1 x 100-240V power supply unit
  • 2 x Motorola/FDC Radio connect cable

MA





M
Plug

Compatible Radio Models

MOTOROLA CP88, CP100, CP150, CP200, CT150, CT250,
CT450, CT450LS , ECP100, GP68, GP88S, GP308, GP350, GP2000,
GP3688, GP3188, GTI, GTX, LTS2000, P040, P080, P110, P200, P1225, P1225LS, PR400, PRO1150,PRO2150, PRO3150, PMR446, SP10, SP21, VL50, VL130,
Feidaxin FD-150A,  FD-160A, FD-450A, FD-460A
HYT TC-500
PUXING PX-508U , PX-999
KIRISUN
PT578U , S760U , S765U , S780U , S785U
