編號: SR-628 +2X 46-mt
名稱: SR-628 cross band Duplex Repeater Controller with cable Motorola Talkabout

優惠價: HKD 410.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情


SR-628 +2X 46-MT

SR-628 cross band Duplex Repeater Controller with cable Motorola Talkabout

Features

SR-628 Duplex Repeater Controller

The SR-628 is a multi-function and cheaper device that connects any handheld or mobile radio.

By equipment and so on our assemble the build, the new generation trunk-line board, the internal structure design are finer, the outward appearance is more attractive. Besides can provide a the basic repeater function which has following the receiver transmitter, furthermore has the Simple connection, provides the more ideal 2-way radio conversation region for you, causes you maintains the relation in the bigger operating region.

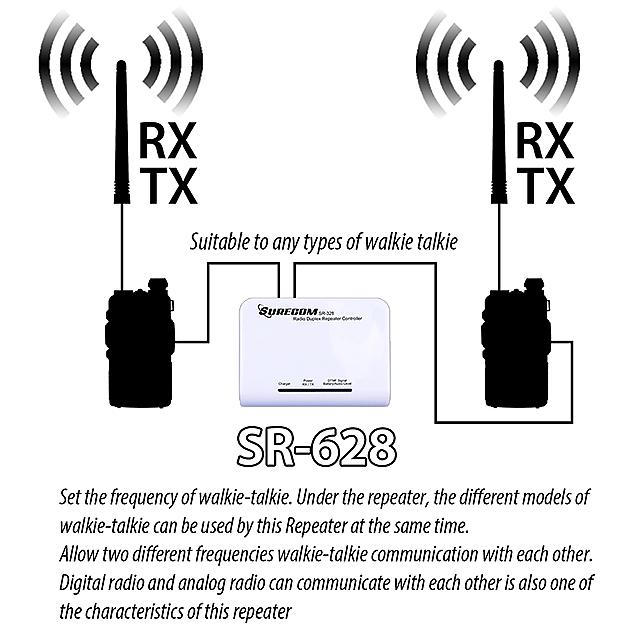

When the radio units are connected, the received signal on a radio unit will be real time transmit on the other radio unit.
e.g. VHF/VHF, UHF/UHF, VHF/UHF or UHF/VHF modes
Input A: Channel A is TX When channal B is RX.
Input B :Channel B is TX When channel A is RX .

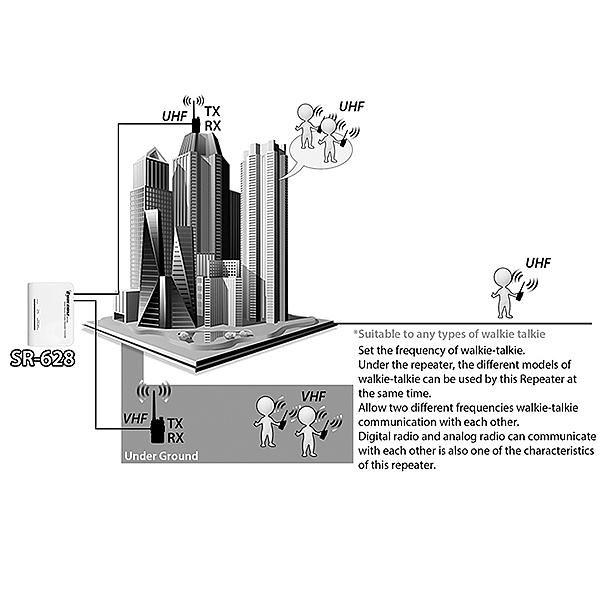

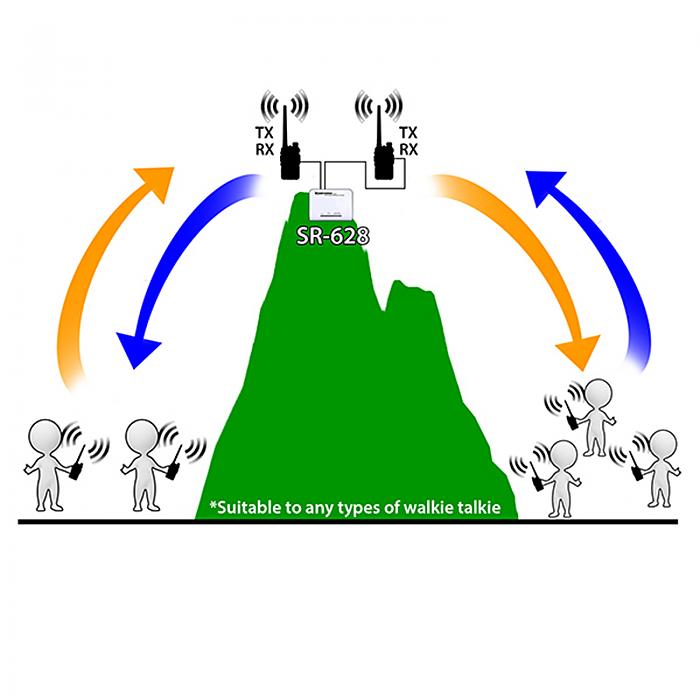

The purpose can be done in two different places and using different frequency bands intercom, through our mutual communication relay station.

This is a radio cross band duplex repeater controller. It is an easy of operation and cost effective and highly flexible platform for setting up bi-direction cross band duplex repeater with mobile radio and handheld radio.

The SR-628 has 2 audio ports input and out , they are used to connect with mobile and handheld radio. DTMF remote control function with password protection is available in the . User can control the repeater ON or OFF remotely by DTMF. Multi-LED display 2 of radio status , and build-in battery Level

Major Features

  • Works with most popular handheld radios
  • Multi- LED display 2 radio status , And controller Battery Level
  • Real time duplex repeater with link radio
  • Allows user to change the DTMF remote control password by radio
  • Operates on both build-in Li-ion battery 72 hours long life operation
  • External DC 5~24V power supply
  • DTMF remote control repeater function ON and OFF with password protection
  • Professional manufacturer low power consumption .

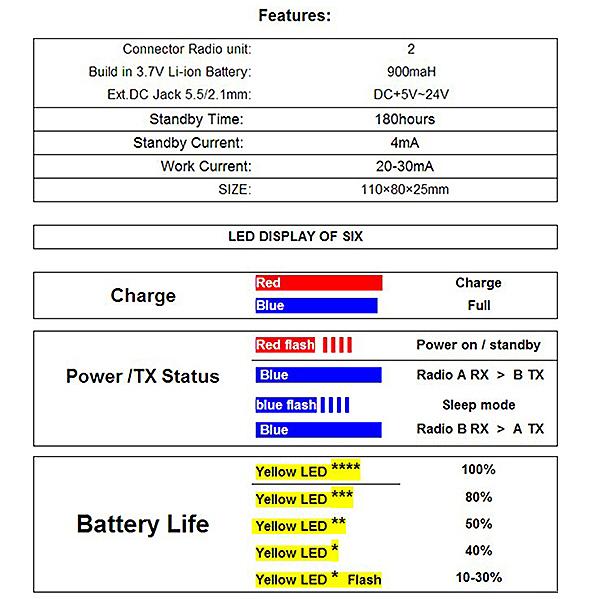

Connector Radio unit:

2

Build in 3.7V Li-ion Battery:

900maH

Ext.DC Jack 5.5/2.1mm:

DC5V~24V

Standby Time:

180hours

Standby Current:

4mA

Work Current:

20-30mA

Size:

110x80x25mm

Operating temperature: -10°C to +50°C

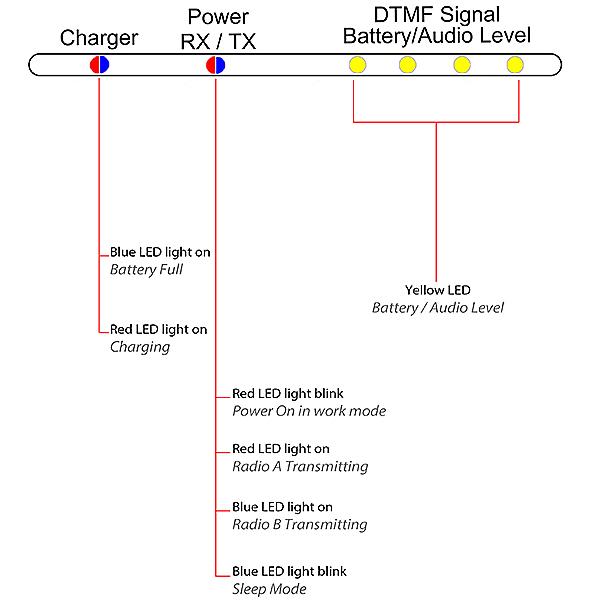

LED DISPLAY

Charge

Red               Charge/DC in

Blue                  Full

Power

Red                 Power on

Red flash            Sleep mode

Status

Red             Radio A RX , B TX

Blue             Radio B RX , A TX

Battery Life

Yellow LED             100%

Yellow LED***          80%

Yellow LED**           50%

Yellow LED*            40%

Yellow LED*Flash       10~30%





Photo will have chromatic aberration compared with the product

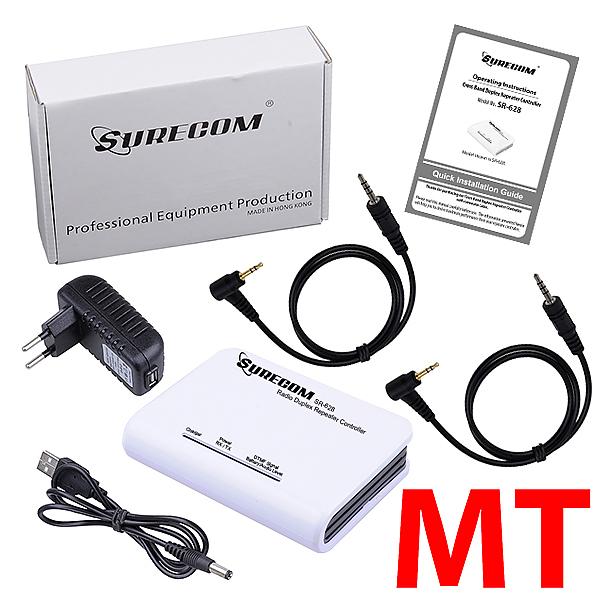

PACKAGE CONTAIN
  • 1 x SR628 Duplex Repeater Controller
  • 1 x 100-240V power supply unit
  • 2 x 2.5mm Motoroa talkabout Radio connect cable

MA





MT
Plug
Compatible Radio Models
 MOTOROLA
TALKABOUT
Motorola MOTO TLKR T5, Talk about 270, 280, 289,
FR50, FR60, FV200, FV300, FV500, FV700, FV750,
FV800, T4500, T4800, T4900, T5000, T5100, T5146,
T5200, T5300, T5320,T5400, T5410, T5412, T5420,
T5422, T5432, T5500, T5512, T5522, T5532,
T5550, T5600
MYT MYTQ2V , MYTQ2U
RONSON RT-88
TYT TH-2R , TH-UV3R
