編號: SW-33MARK2
名稱: SURECOM SW33 mark II VHF/UHF 100W POWER & S.W.R. METER

優惠價: HKD 230.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情

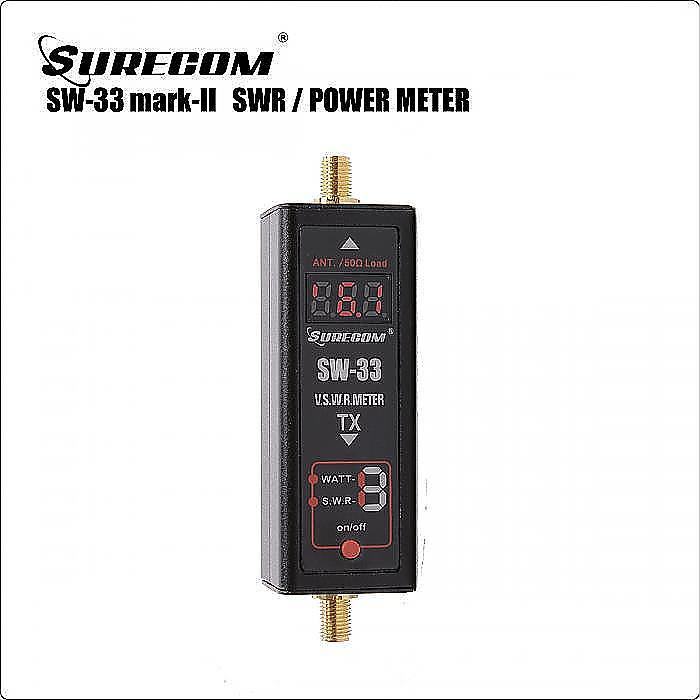

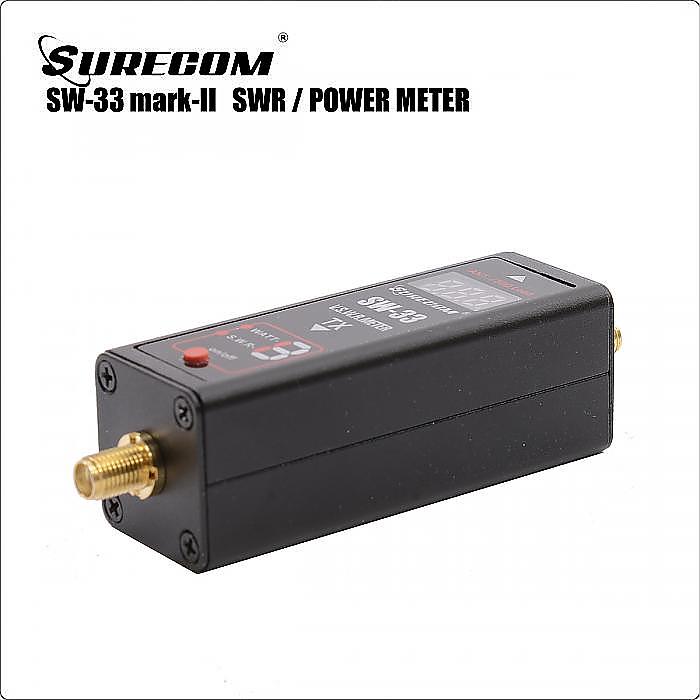

SURECOM SW-33 markII 100-520 Mhz Mini Digital VHF/UHF Power & SWR Meter


Features
1 VSWR. Forward and reflected power direct digital readout, without any calibration.
2. Maximum measurable power range up to 100W.
3. 3 seconds check your antenna SWR , also check your radio RF power watt.
​4.Easy to install handheld Radio


Specifications:
Measurable power range: 0.1-100W
Maximum power: 100W Accuracy: mean + / - 5%
Not for the DMR digital radio.

Specifications:
MAX. Power in 100 WATT
V.S.W.R 1.00~19.99
Frequency Range COVER:100MHz~520MHz
Insertion Loss < 0.15dB(VHF) , < 0.25dB(UHF)
Temperature 0℃~70℃
Battery Build -in Li-ion Battery
Size(WHIT OUT SMA 25*25*60 (mm)
Power  in  5V (micro usb)
Interface (in and out ) SMA female
Impedance:  50Ω
Weight 160g

Features function
Push red button and hol 3 sec.to" Power on " and "SWR "mode " Led display show sw33_swrmode
Push red button -" Power Meter "mode , Led display show   sw33_powermode
Push red button -" SWR "mode ,Led display show sw33_swrmode
Push red button and HOLD  -" POWER OFF

1.1How to use Power meter .
Push red button -switch on
Push red button  at once to mode "POWER meter "  ,Led display show
Connect the SMA (mark TX)  to Radio output .
Connect the SMA to DUMMUY Load

Caution : Please use correct dummy load , High power will damage the dummy load.

1.2How to use SWR meter .
Push red button -" Power on " and "SWR "modeDisplay show sw33_swrmode
Connect the SMA (mark TX) to Radio output .
Connect the SMA to ANTENNA

When the the led  show 1.00 to 1.50   , mean the antenna is suit the frequency,
When the the led  show 1.50  to 3.00 ​ , mean the antenna is not good  suit the frequency,
When the
the led  show  up to 5.0 to 19.99​ , mean the antenna is not  suit the frequency.



Package Contents

1x SW-33 markII  SWR/POWER METER

1x English User Manual
1x USB charger cable
1x USB AC adapter 100-240V
1x SMA male to SMA male Adaptor
​1x SMA male to SMA female Adaptor
1x SMA female to BNC female Adaptor
1x SMA male to BNC male Adaptor
1x 5W DUMMY LOAD for testing
