編號:  DM5R-PLUS
名稱: BAOFENG DM-5R Plus Tier2 DMR 雙頻對講機 (適合於Motorola P8260 P8608)

優惠價: HKD 368.00
貨幣單位:: HKD
數量: 0
可以寄往: 香港
這拍賣已經不存在或者被管理員暫停了   0
  詳情







If you want much in our store,we provide wholesale price.Please contact with us first!!!

This model can communicate with motorola general DMR model, not include  motorola trunked DMR radio!!!
The Motorola general model is such as:
SL1M、GP328D、A8i、P3688、P8668、GP338D LKP、MTP6750、MTP750、MTP3100、MTP3150
MAG ONE Series:A10D、 A8D、A12D、A9D、A5D、
XIR Series: C1200、XIR C2660、 XIR C2620、P6600、P6620、P8200、P8208、P8260、P8268、P8608、P8620、E8600、E8608、P8660
Specification:
DMR Digital Radio
MOTOTRBO Tier I
Crystal Clear Call Quality
Dual Band Repeater
VHF/UHF 136-174/400-520Mhz
2000mAH High Capacity Battery
High Power/Low power (5W/1W)
128 channels
3km of Range
21CM Dual Band Antenna
8-Level Stepped Frequency Selection
Auto power saving function, Super-Long Standby
14 hours usage time, up to 30 hours of standby time
Emergency Alarm
Flashlight
Individual/Group/All Call
Walkie-Talkie Detection
CTCSS/DCS
Compatible with Digital And Analog Systems





Product Functions
  • Compatible with Motorola
  • Two-way radio detection in digital mode
  • Different CTCSS/DCS & DTMF signaling
  • Tail tone elimination
  • VOX & Voice prompts
  • Emergency alarm and ANI identification
  • 8-level stepped frequency selection
  • Auto power saving function
  • Emergency call, sound and light alarm function
  • Computer programmable
  • Digital tunable FM radio
  • Bright flashlight lighting function
Product Specifications

GENERAL SPECIFICATIONS

FREQUENCY RANGE VHF: 136-174MHZ /UHF: 400-520MHZ (DUAL BAND)
STORAGE CHANNEL 128 GROUPS
STEPPED FREQUENCY 2.5/5/6.25/10/12.5/20/25KHZ
OPERATING VOLTAGE DC7.4 V (RECHARGEABLE LITHIUM BATTERY)
FREQUENCY STABILITY ±1.5PPM
OPERATING TEMPERATURE -20℃—+50℃
OPERATION MODE SAME-FREQUENCY SIMPLE OR DIFFERENT-FREQUENCY SIMPLEX
ANTENNA IMPEDANCE 50Ω
BATTERY CAPACITY 2000MAH
VOLUME 110×58×32MM (EXCLUDING ANTENNA)

TRANSMITTING

OUTPUT POWER 5W/1W
MODULATION (WIDEBAND/NARROWBAND) ANALOG: 16K¢F3E/11 K¢F3E
DIGITAL: 4FSK
MAXIMUM FREQUENCY DEVIATION (WIDEBAND/NARROWBAND) ≤5KHZ/≤2.5KHZ
FSK ALLOWABLE ERROR RATE ≤3%
SPURIOUS POWER ≤7.5UW
ADJACENT CHANNEL POWER ≤-65DB/≤-60DB
SIGNAL TO NOISE RATIO (WIDEBAND/NARROWBAND) ≥-45DB/≥-40DB
CTCSS/DCS FREQUENCY DEVIATION (WIDEBAND/NARROWBAND) 0.7±0.1KHZ/0.4±0.1KHZ
MODULATION SENSITIVITY 8—12MV
TRANSMITTING CURRENT ≤1.5A

RECEIVING

ANALOG SENSITIVITY -122DBM (12DB SINAD)
DIGITAL SENSITIVITY -120DBM(BER≤5%)
AUDIO POWER 1W
AUDIO DISTORTION <10%
INTERMODULATION (WIDEBAND/NARROWBAND) ≥62DB/≥58DB
ADJACENT CHANNEL SELECTIVITY (WIDEBAND/NARROWBAND) ≥65DB/≥60DB
RECEIVING CURRENT ≤380MA



BAOFENG DM-5R PLUS TWO-WAY RADIO



DM-5R PLUS -- BaoFeng's FIRST DMR Digital Radio & The FIRST DUAL BAND DMR Digital Radio! Upgraded Version!

Crystal Clear Sound Quality
The BaoFeng DM-5R features the latest in digital technology to bring you crisp, clear sound when transmitting and receiving.

Longer Life

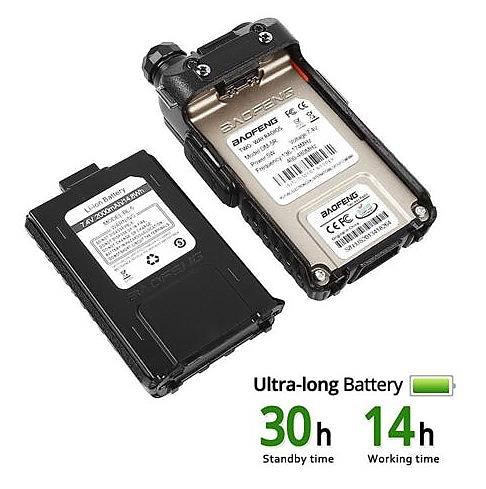

With featuring an upgraded power-saving mode & an upgraded standby feature, the DM-5R will be there when you need it. The DM-5R transmits for a total time of 14 hours, and will stay powered on in standby for up to 30 hours on a single charge.

Compatible with Motorola
The upgraded version of DM-5R can communicate with a Motorola radio, and it supports DMR repeaters.

Baofeng’s first digital radio with upgraded version is designed for most people to meet the new demand that own a great digital radio while not abandoning analog one. Characterized by attractive appearance, solidness, durability, loud & clear voice, excellent performance, perfection and value, this two-way radio is a manually adjustable, all-weather digital two-way radio with dual band, 128 channels, 2000mAh battery, lattice LCD and 21cm(8.27in) antenna, we introduce you the first digital radio of Baofeng and the least expensive digital two-way radio on the market, the DM-5R Plus.



SUPPORTS DIGITAL & ANALOGUE MODE:

As a radio operating under DMR system, Baofeng
DM-5R Plus is perfectly compatible with both digital and analogue mode. It can smoothly turn from one into the other. Order today and receive a DM-5R Plus which can communicate clearly and easily with other DM-5R Plus, as well as communicating with other two-way radios on the UHF and VHF frequencies.
Meanwhile, DM-5R Plus can support DMR repeater function. Therefore, it is naturally compatible with Motorola radios with it's Repeater Mode Time slot I, not requiring updating.


CRYSTAL CLEAR SOUND QUALITY

The Baofeng DM-5R Plus features the latest in digital technology to bring you crisp, clear sound when transmitting and receiving. Whether used as analog or digital, you can be sure that your messaging will come across clearly with the DM-5R Plus.

BRAND NEW DIGITAL-SYSTEM CHIP

Different from UV-5R, in order to create a fantastic compatibility of digital and analog mode under the DMR system, Baofeng designed a brand new chip that run for the DMR system and hold the analog radio’s features at the same time for DM-5R Plus, which makes it support many functions in digital mode like auto power saving, voice encryption, detection, emergency alarm, talkback, individual call, group call, all call, etc.

THE 1ST DUAL BAND DMR WITH DUAL DISPLAY & DUAL STANDBY

UHF (ULTRA HIGH FREQUENCY):

UHF radios are the best option when you intend to use it inside city limits where you are surrounded by a lot of tall buildings and your signals are expected to pass through multiple wals.



Product Content
1x Baofeng DM-5R PLUS Two-way Radio
1x Intelligent Desktop Charger
1x 2000mAH Large Capacity Battery
1x 21CM(8.27'') Dual BandHigh-gain Antenna
1x User Manual
1x Belt Clip
1x Hand Strap
1x Power Adapter(EU, UK, US)
1x Free Earpiece
1x Speaker/MIC


**本機語言是英語設定,無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.
