46-GM

Duplex Repeater Interface for Motorola Radio GM3188 GR-300 GM300 Radio

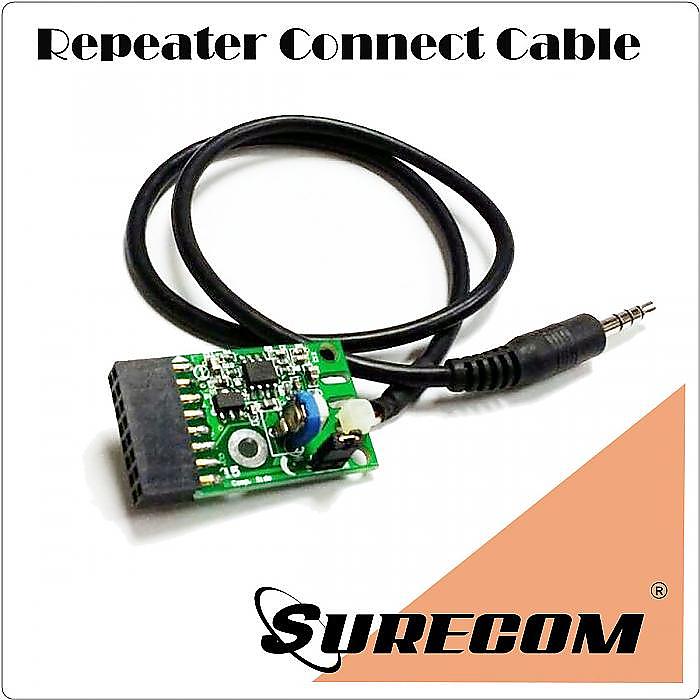

This is brand new duplex repeater interface cable for Motorola GM300 connect Surecom repeater system ,16 pins plug kit.

50CM Repeater Controller Cable for MOTOROLA

3.5mm x17mm 4 pole Plug  Connect :SR-112,SR-628,SR-328,SR-629	GM- Plug  16pin  Connect Mobile Radio equipment
GND
Audio in (for Radio Speaker out)
P.T.T. ON/OFF
Mic Out


Cable Length : 50CM

Repeater connector Plug : 3.5mm x 17mm
FIT MODEL : SR-112,SR-628,SR-328,SR-629

Repeater connector Plug: 16pin
Applicable radio :

• CM300, CM200 CM series, (must use 2 CM series models.)
• CDM750, CDM1250, CDM1550, (CDM series plug into the center 16 pin of the 20 pin jack)
• PM400
• GM SERIES
• GM300 Series
• M Series
• Maxtrac Series
• Radius Series
• M1225
• GM380, GM950, GM340, GM360, GM3188,GM3688
• SM50, SM120
• other Motorola radio that has 16 or 20 pin accessory connector at the back
• for 20 pin connector plug into middle 16 pin of the 20 pin jack
• for 20 pin model GM-338

 Package contents:
1x 46-GM Repeater cable PCB w/ cable


GM-300
