LINTON LT2288 VHF + Free Earpiece
LINTON Amateur Handheld Transceivers

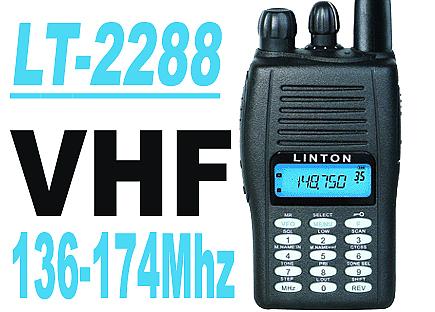

LT-2288 136-174Mhz VHF QUALITY Transceiver
- 99 Groups of memory channels
- Built-in 50 Groups of CTCSS
- Come with 1100mAh Li-ion battery
- Input Freq. By using keypad
- Scan function
- Programmable by PC(cable optional)
- Priority Scan Function
- Adjust power Hi/Lo
- Switching between Channel/Freq.
- TAG funtion Name or CH No.
- Busy channel lockout
- Keypad lock
|
General |
|
Frequency Range |
136-174MHZ |
| Channels |
99 |
| Channel Steps |
5k,10k,6.25k,12.5k,25k |
| Power Supply |
7.2V 1100mah LI-ion |
| Operating Temperature |
-20°C ~ +60°C |
| Communication Range |
3 ~6km |
| Dimension (H x W x D) |
100 x 55.5 x 31mm |
| Weight |
225g |
|
RX
|
| Sensitivity |
<0.20µV |
| Selectivity |
65dB |
| Intermodulation Rejection |
60dB |
| AF Output |
500mW |
| Standby Current |
35mA |
|
|
| Power Output |
4W |
| Modulation Type |
F3E |
| Spurious Emission |
< -65dB |
| Transmit Current |
1300mA/750mA |
| Max. Deviation |
±5kHz |
| Modulation Distortion |
< 5% |
| Frequency Stability |
±2.5ppm |
|
-
1 x LT-2288 (VHF 136-174Mhz)
-
1 x 7.2v 1200mah Li-ion Battery Pack
-
1 x Antenna 136-174Mhz
-
1 x Belt Clip
-
1 x ENG Manual
-
1 x Desktop Li-ion Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
-
1 x Earpiece
-
1x WRIST STRAP | | |
|
