編號: 1 x PX-328-V
名稱: 1 x PUXING PX-328 VHF 136-174Mhz

優惠價: HKD 488.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情


 PX328-V+4-001K

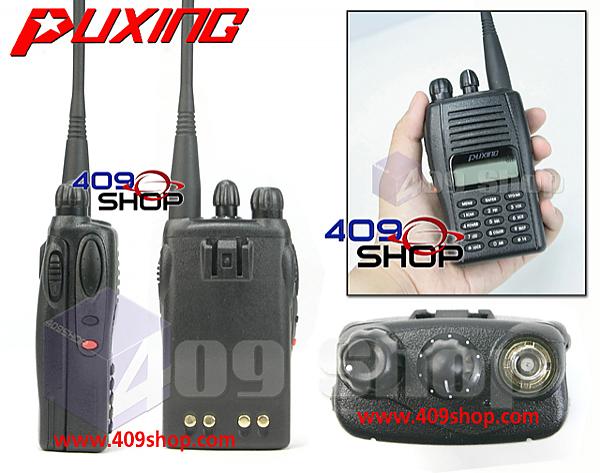

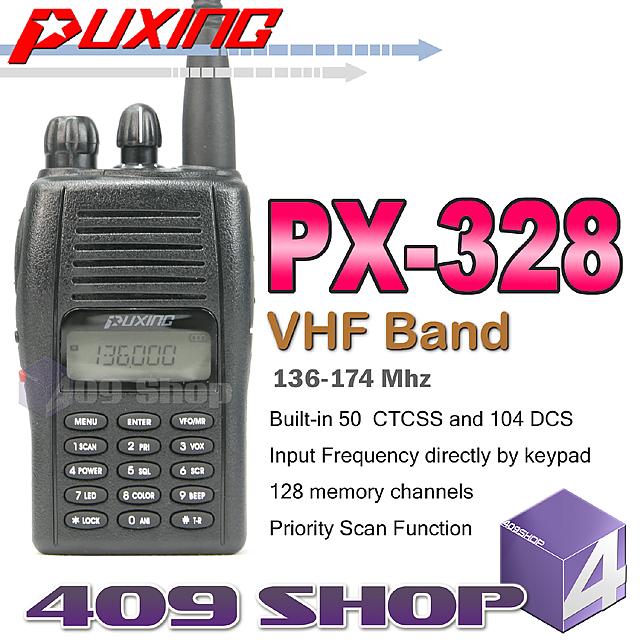

PUXING PX-328 VHF 136-174Mhz with Earpiece

GENERAL:

  • VHF 5W output power
  • 128 memory channels
  • Built-in 50  CTCSS and 104 DCS
  • Wide (25kHz) and  Narrow(12.5kHz) channel spacing
  • Programmable in separate channels
  • Come with 1200mAh Li-ion battery
  • Input Frequency directly by keypad
  • VOX built-in
  • Frequency Scan & CTCSS Scan
  • Three different scan type: TO/CO/SE
  • Three color LCD backlight display
  • Sound Alarm
  • Programmable by PC software
  • Bell ring when receiving signal
  • Priority Scan Function
  • Adjust power High/Low
  • Switching between Channel/VFO
  • Display Channel+ Frequency mode.
  • Adjust squelch level (0-9)
  • Busy channel lockout
  • Keypad lock
  • Reverse Frequency Function
  • Channel step 5k,10k,6.25k,12.5k,25k
  • Optional Frequency range: 400-470Mhz
  • Program alphanumeric channels name
  • DTMF encode
  • Self-program
  • VFO/MR key to store and delete channel



TECHNICAL SPECIFICATION:

  • Frequency Range:136~174MHz
  • Working Temperate -20℃―+50℃
  • Operating Voltage DC 7.2V
  • Operate Mode:Simplex or Semi-duplex
  • Dimension 100mm×55mm×32mm (Not included Antenna)
  • Weight 220g (Including battery)
  • Antenna impedance 50Ω



TRANSMITTER:

  • Frequency Stability ±2.5PPM
  • Output Power ≦5W
  • Max Frequency Deviation ≦5KHz
  • Audio Distortion ≦3%
  • Modulation Character +3dB—-3dB
  • Adjacent Channel Power ≥65dB
  • Spurious Radiation ≤7.5UW
  • Occupied Bandwidth ≤16KHz



RECEIVER:

  • RF Sensitivity <0.2UV
  • Audio Distortion  ≦3%
  • Audio Response +2dB—-10dB
  • Adjacent Channel Selectivity ≥60dB
  • Intermodulation Rejection ≥65dB
  • Spurious Response ≥70dB
  • Blocking  ≥80dB

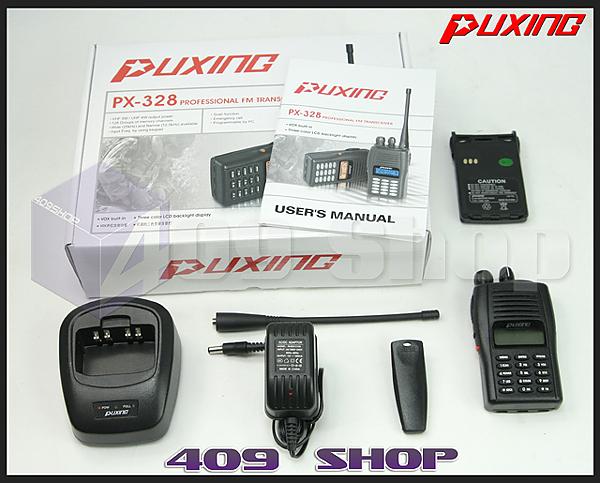

Each Set PACKAGE CONTAIN

  • 1 x PUXING PX-328 (VHF 136-174Mhz)
  • 1 x 7.2V 1200mah Li-ion Battery Pack
  • 1 x VHF Antenna.
  • 1 x Belt Clip.
  • 1 x ENG Manual
  • 1 x Earpiece
  • 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia
**本機語言是英語設定,無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.
