編號: 1 x FD-790V
名稱: 1 x FeiDaxin FD-790 VHF 136-174mhz FM radio

優惠價: HKD 464.00
貨幣單位:: HKD
數量: 0
可以寄往: 香港
這拍賣已經不存在或者被管理員暫停了   0
  詳情


 FD790 VHF+4-001K

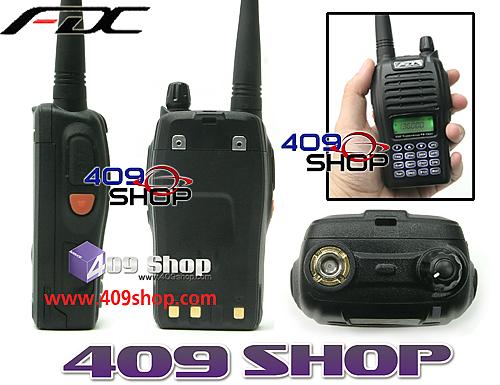

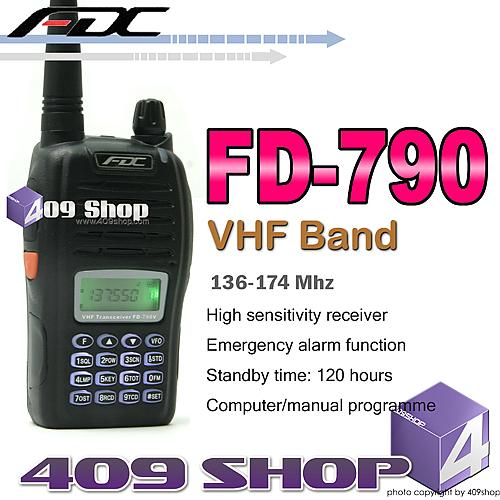

FeiDaxin FD-790 VHF 136-174mhz FM radio

Special features

  • Built-in FM radio
  • Computer/manual programme
  • Built-in 50 groups of CTCSS and 104+1 groups of DCS
  • Repeater function
  • High sensitivity receiver
  • Battery indicator
  • Scan function
  • Keypad lockout
  • Signal strength indicator
  • High/low power select (1 to 5W)
  • Standby time: 120 hours
  • Lower battery warning
  • LCD & keypad backlit display
  • Adjustable squelch level
  • 12.5kHz/25kHz compatibility
  • Emergency alarm function

Technical specifications

Model NO.

FD-790V



General

Frequency Band

VHF



Frequency Range

136-174Mhz



Channel Capacity

99

Operating Voltage

7.2V DC ±15%

Antenna Impedance

50Ω

Channel Spacing

12.5kHz/25kHz

Working Temperature

-30 ℃ - +60 ℃

Frequency Stability

±2.5 ppm

Size (Without Antenna)

104(W)mmx62(L)mmx36mm(D)

Weight(With Battery)

250g

Battery

1300 mAh(Li-ion)

Transmitter

RF Power Output

5W/4W

Modulation Type

F3E

Modulation Distortion

< 5%(300-3000Hz)

Max Freq Deviation

< 5kHz(1000Hz When 100%)

FM Noise

<=-45dB

Receiver

Sensitivity(12Db SINAD)

0.16μV

Selectivity

55dB

Adjacent Channel Selecivity

>=70dB

Noise Respond

>=60dB

FM Noise

30dB/40dB

Modulation Type

8K/16KF3E

Audio Power Output

500mW When Distortion Less Than 10%

Audio Distortion

< 5%

Operating Bandwidth

±3.5kHz/3.75kHz

Standby Current

< 12mA

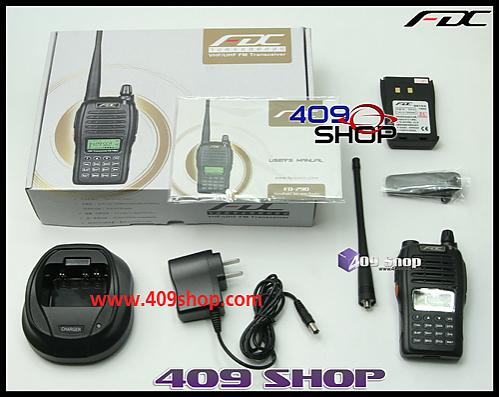

PACKAGE CONTAIN
  • 1x FD-790 VHF(136-174Mhz)  Body Colour :Black
    • 1x 7.4v 1300mah Li-ion Battery Pack.
      • 1x Antenna.
        • 1x Belt Clip.
          • 1x ENG Manual
          • 1 x Wall PSU with Charger

**本機語言是英語設定,無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.
