編號: 0019-0007
名稱: DC24V TO DC13.8V Step-Down Converter (60A Max.) DC-600

優惠價: HKD 550.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情


0019-0007(DC-600)

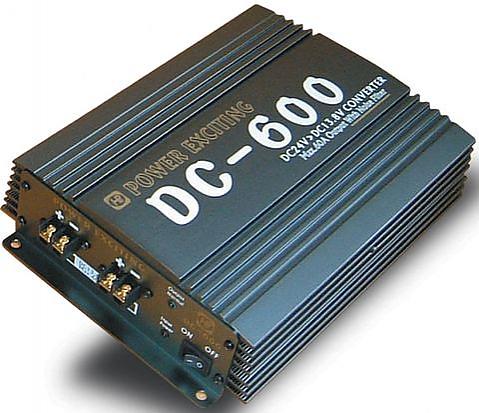

DC24V TO DC13.8V Step-Down Converter (60A Max.) DC-600

Features:

Special design and decorous car amplifier heat sink housing
Less heat dissipation without over-heating problem
Switching-mode technology (25KHz)
High efficiency (85%)
Good load and line regulations
Wide input voltage range
Output over-voltage and current protections
Output current limit and short circuit protections
Forced air cooling (DC-400/600/800)
Key remote ON/OFF control
Power on / off switch
Specifications:

Input Voltage Range: 20V DC – 30V DC
Output Voltage: 13.8V DC ± 0.1V
Max. Output Current: 60A
Continuous Current: 40A
No Load Input Current:≦ 100mA
Line Regulation: 0.1%
Load Regulation: 0.02%
Output Ripple Noise: 50mV (rms)
Efficiency: Over 85%
Indicators: Power on LED
Input connection type :Terminal with (ACC)
Output connection type : 2 Terminals
Input Fuse Type car blade : 20A+20A
Dimensions WxLxH (mm) : 200 x 280 x 70
Weight :2Kg
Cooling System :Thermally Control Fan

產品包括:
1 x DC24V TO DC13.8V Step-Down Converter (60A Max.) DC-600
