編號: 1 x FD-760U
名稱: 1 x FeiDaxin FD-760 UHF 400-470mhz FM radio

優惠價: HKD 473.00
貨幣單位:: HKD
數量: 0
可以寄往: 香港
這拍賣已經不存在或者被管理員暫停了   0
  詳情


 FD760 UHF

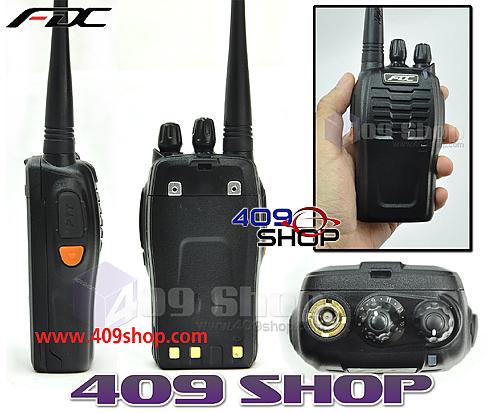

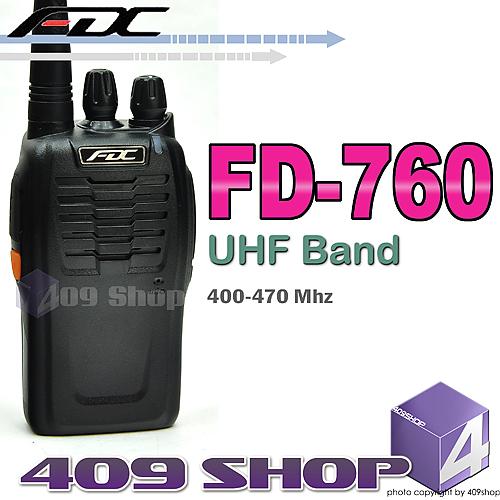

FeiDaxin FD-760 UHF 400-470mhz FM radio x 1set

Special features



de-emphasis

Wired clone

TOT function

High/low power switchable

Wide/narrow band selection

Monitor function protection

Add scan channel and priority channel scan

Emergency alarm function

High-quality audio output

VOX function

Low battery alarm with voice prompt

Busy channel lockout

Voice function

High voltage low battery alert







Technical specifications



Model NO. FD-760

General

Frequency Band



UHF

Frequency Range



400-470MHz

Channel Capacity

16

Operating Voltage

7.2V DC ±15%

Antenna Impedance

50Ω

Channel Spacing

12.5kHz/25kHz

Working Temperature

-30 ℃ - +60 ℃

Frequency Stability

±2.5 ppm

Size (Without Antenna)

104(W)mmx62(L)mmx36mm(D)

Weight(With Battery)

about 250g

Battery

1500 mAh(Li-ion)

Transmitter

RF Power Output

4W

Modulation Type

F3E

Modulation Distortion

< 5%(300-3000Hz)

Max Freq Deviation

< 5kHz(1000Hz When 100%)

FM Noise

<=-45dB

Receiver

Sensitivity(12Db SINAD)

0.16μV

Selectivity

55dB

Adjacent Channel Selecivity

>=70dB

Noise Respond

>=60dB

Communication Range

3-5km(Downtown),6-20km(In the Open Area)

FM Noise

30dB/40dB

Modulation Type

8K/16KF3E

Audio Power Output

500mW When Distortion Less Than 10%

Audio Distortion

< 5%

Operating Bandwidth

±3.5kHz/3.75kHz

Standby Current

< 12mA

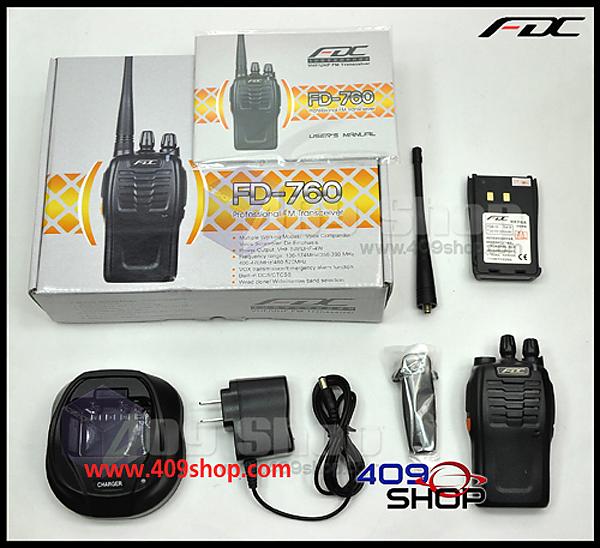

PACKAGE CONTAIN
  • 1 x FD-760 UHF(400-470Mhz) Body Colour :Black
    • 1 x 7.4V 1500mah Li-ion Battery Pack.
      • 1 x UHF Antenna.
        • 1 x Belt Clip.
          • 1 x ENG Manual
          • 1 x Wall PSU with Desktop Charger

**本機語言是英語設定,無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.
