TYT-900 UHF+41-12K

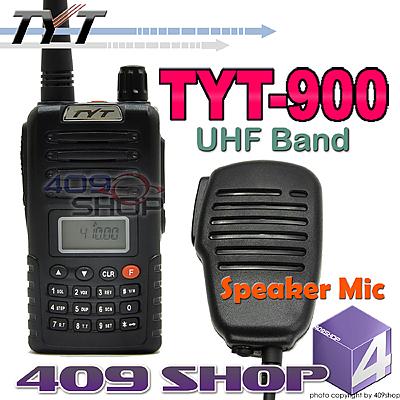

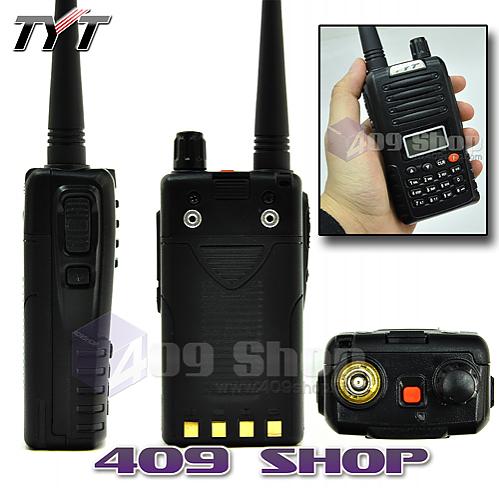

TYT TYT-900 UHF 400-470Mhz two-way radio w +earp + Speaker Mic
Description:
CTCSS/DCS and selectable squelch can keep you from the outside interference, VOX time-lapse function/VOX grade setting and 5KM maximum distance let you enjoy the smooth talk.
Main Functions:
- Frequency ： 400-470 MHz
- Output power: 5W
- 199 groups of memory channels
- Channel spacing: 5, 10, 12.5,20,25,30, 50kHz optional
- 50 CTCSS code
- VOX time-lapse function,
- Designate communication
- Multi channel scan or skip scan function
- Voice prompt function
- Emergency alarm
- Selectable squelch /VOX grade setting
- LCD display/ keypad direct frequency input
- Transmit time limiter
- Auto keypad lock
- FM radio receiver function
- Weight:190g
- Available appearance: Black
Technical parameters
|
Item number
|
TYT-900
|
|
General
|
|
Frequency Range
|
400-470mHz
|
|
Channel Capacity
|
199 channels
|
|
Channel Spacing
|
5kHz/6.25kHz/10kHz/ 12.5kHz/
20kHz/25kHz/30kHz/50kHz
|
|
Frequency Stability
|
±2.5ppm
|
|
Operating Temperature
|
-25～+60℃
|
|
Antenna Impedance
|
50Ω
|
|
Operating Voltage
|
7.2V
|
|
Dimensions（W×H×D）
|
115x 56x 30mm
|
|
Weight
|
220g(Include battery & antenna)
|
|
Battery
|
1300mAh (Li-ion Battery)
|
|
Transmitter
|
|
RF output power
|
4W/5W
|
|
Modulation Type
|
16kΦF3E
|
|
Modulation Limiting
|
≤5kHz
|
|
Modulation Character
|
+3dB / -3dB
|
|
Spurious Radiation
|
0.75μW
|
|
Adjacent Ch. power
|
≥65dB
|
|
Max Fr. Deviation
|
≤5kHz
|
|
Occupied Bandwidth
|
≤16KHz
|
|
Receiver
|
|
Receiving Sensitivity
|
0.25μV
|
|
Adjacent Ch. Selectivity
|
60dB
|
|
Inter-modulation
|
60dB
|
|
Co-channel suppression
|
-8dB
|
|
Audio Response
|
+2dB -10dB
|
|
Audio Output
|
500mW
|
|
Audio Distortion
|
≤3%
|

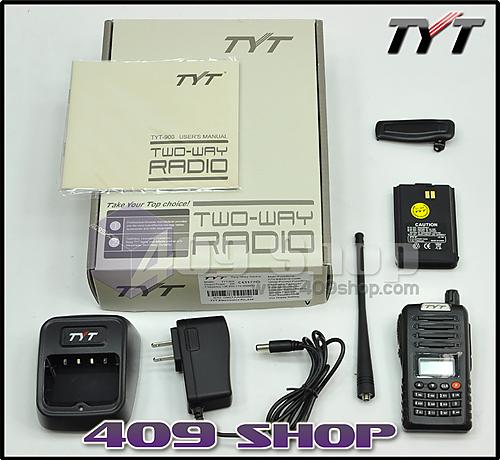

Free for
Speaker Microphone
Free for
-
1 x TYT TYT-900 (UHF 400-470Mhz)
-
1 x 7.4V 1300mah Li-ion Battery Pack
-
1 x UHF Antenna
-
1 x Belt Clip.
-
1 x ENG Manual
-
1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
-
1 x Earpiece
-
|
|
|
