| TG45AT UHF+41-12K

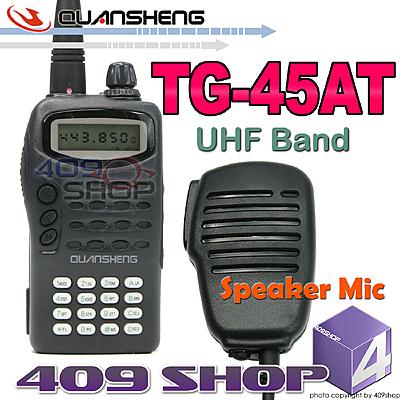

QUANSHENG TG-45AT UHF 400-470MHz Professional Ham Radio+ Earpiece +Speaker Mic
Professional Ham Radio UHF 400-70MHz 5W
- Built-in 38 Groups of CTCSS ,HI/LO RF Output,Voice(English) Funtion
- Product Description
- Portable Amateur Two Way Radio Supplier.
Functions:
1) Frequency: UHF 400-470MHz
2) Same frequency/different frequency
3) Initialization
4) CTCSS funtion
5) Voice prompt
6) Input frequency directly by keypad
7) Display channel frequency mode
8) Monitor and scan function
9) Switch power between "HI" and "LOW"
10) Auto battery saving function
11) Low power alarm
- Ultra Compact Design Easy Portable
- 99 Memory Channels
- Keypad program
- RF output HI/LO select
- Blacklight Display
- Repeater Shift:
- Keylock
- Voice (ENGLISH)
|
General
|
|
Frequency Range
|
(TG-45AT UHF)400-470MHz
|
| Channels |
99
|
| CTCSS |
38 tone
|
| Channel Steps |
5、10、12.5、25kHz
|
| Power Supply |
7.2V 1100mah NI-HM
|
| Operating Temperature |
-5°C ~ +60°C
|
| Antenna connect |
SMA(SMA-J)
|
| Dimension (H x W x D) |
89x 53 x29mm
|
| Charger Time |
8Hours(100MA)
|
| Standby Time |
18hours
|
| Weight |
220g
|
|
Receiver
|
| Sensitivity |
<0.18µV
|
| Selectivity |
65dB
|
| Intermodulation Rejection |
60dB
|
| AF Output |
500mW
|
| Standby Current |
18mA
|
|
Transmitter
|
| Power Output |
4W
|
| Modulation Type |
F3E
|
| Spurious Emission |
< -60dB
|
| Transmit Current |
800mA
|
| Max. Deviation |
±5kHz
|
| Modulation Distortion |
< 5%
|
| Frequency Stability |
±2.5ppm
|
Free for
|
-
1 x Quangsheng TG-45AT (UHF 400-470Mhz)
-
1 x 7.2v 1100mah Battery Pack
-
1 x SMA Antenna.
-
1 x Belt Clip.
-
1 x ENG Manual
-
1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
-
1 x Earpiece
-
1 x WRIST STRAP

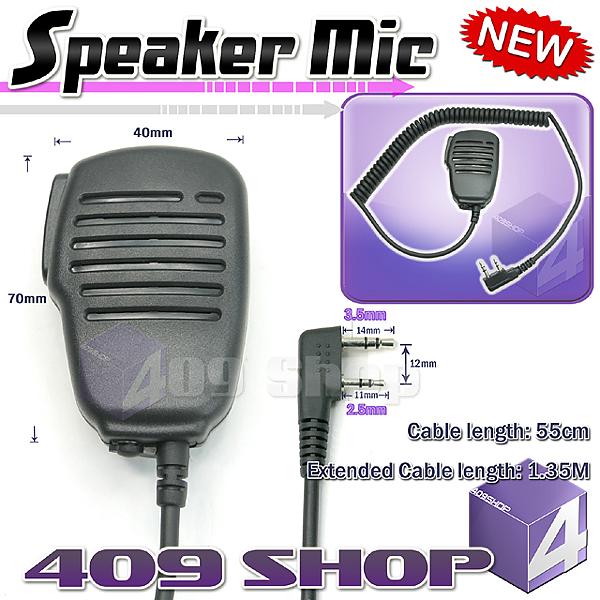

- 1 x Speaker Microphone
|
|
|
|
|
