| FD-160A+2-060

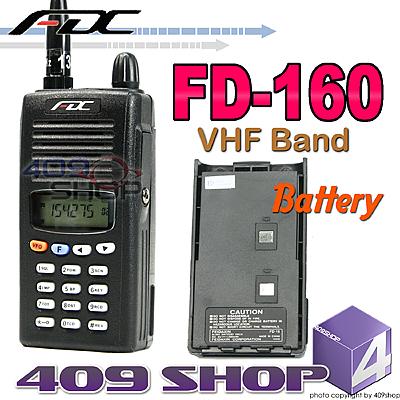

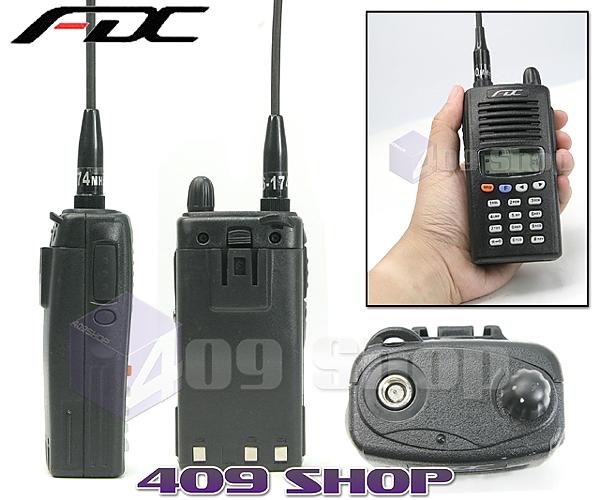

FDC FD-160A VHF 136-174Mhz + Earpiece +Battery
Professional Ham Radio
Built-in 50groups of CTCSS and 104 groups of DCS
- LCD&keypad backlit display ,blue digital keyboard
- Standby time:120hours
- Scan function,keypad lock
- Rainproof
- Hi/Lo power select(1W-5W)
- Programming method:computer/manual
- Charger LED indicator(red-charging;green-fully chaged)
- Signal strength indicator
- Key sound
- Battery indicator
- Semi-duplex operation
- Reverse Frequency
- Adjustable squelch
| FD-160A Technical Specifications: |
|
| Model NO. |
FD-160A |
| General |
| Frequency Band |
VHF |
| Frequency Range |
136-174MHz |
| Channel Capacity |
99 |
| Operating Voltage |
6V DC ±15% |
| Antenna Impedance |
50Ω |
| Channel Spacing |
25kHz |
| Working Temperature |
-30 - 60 |
| Frequency Stability |
±2.5 ppm |
| Size (Without Antenna) |
56(W)mmx106(L)mmx32mm(D) |
| Weight(With Battery) |
About 250g |
| Battery |
1200 mAh(Ni-Mh) |
| Compatible With American Military Standard(MIL-STD-810C/D/E) |
| TransmitterEIA-RS 316B STANDARD |
|
| RF Power Output |
5W/4W |
| Modulation Type |
F3E |
| Modulation Distortion |
< 5%(300-3000Hz) |
| Max Freq Deviation |
< 5kHz(1000kHz When 100%) |
| FM Noise |
<=-45dB |
| Receiver |
|
| Sensitivity(12Db SINAD) |
0.16μV |
| Selectivity |
55dB |
| Adjacent Channel Selecivity |
>=70dB |
| Noise Respond |
>=60dB |
| Communication Range |
3-5km(Downtown),6-20km(In the Open Area) |
| FM Noise |
45dB/40dB |
| Modulation Type |
16KOF3E |
| Audio Power Output |
500mW When Distortion Less Than 10% |
| Audio Distortion |
< 5% |
| Operating Bandwidth |
±7kHz |
| Standby current |
<10mA |
|
|
|
|
|
Free for Battery
Free for
-

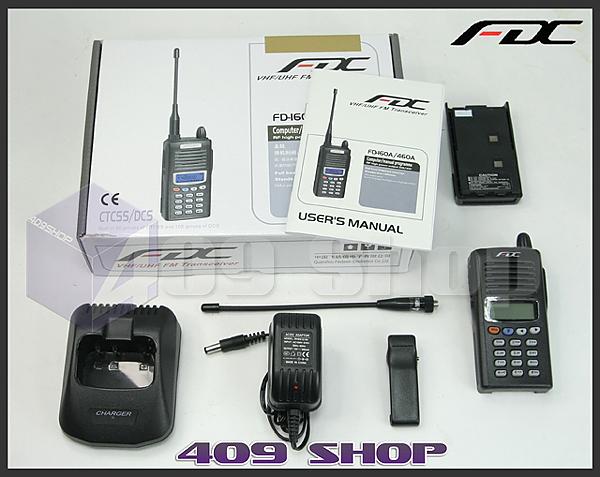

1x FDC FD-160A (VHF 136-174Mhz)
-

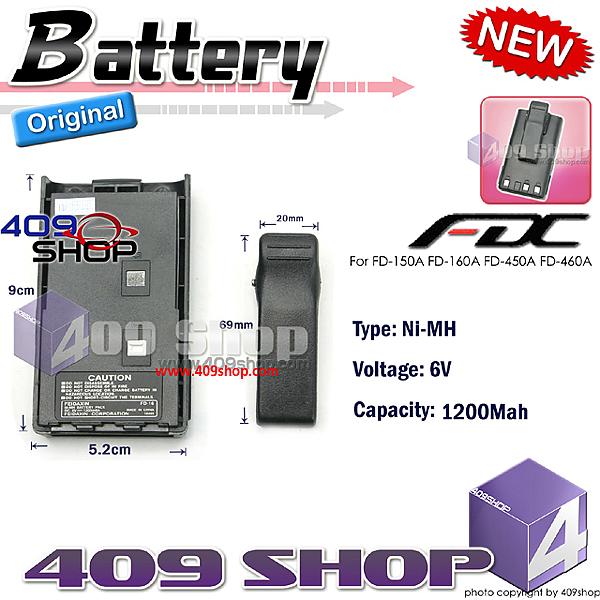

2x 6V 1200mah Battery Pack
-
1x VHF Antenna.
-
1x Belt Clip
-
1x ENG Manual
-
1x Desktop Charger ( 100V ~ 240V ) + PSU (2pin USA or 3pinUK or 2pin EURO)
-
1x Earpiece
|
|
|
|
|
|
