• Over 1000 Memory Channels w/Alpha-numeric Labels
• Ten Memory Banks for Channel Allocation
• High Power Output: 5 Watts
• Long-life FNB-83 (7.2 V/1400 mAh) and Overnight Charger included
• CTCSS and DCS Encode/Decode, with Split Tone and DCS Encode-only Capability
• One-Touch NOAA Weather Access
• NOAA Severe Weather Alert with Alert Scan
• Nine DTMF Auto-Dialer Memories
• Two Front Panel Programmable Keys
• Convenient Access Key for Vertex Standard’s WIRES™ (Wide-coverage Internet Repeater Enhancement System)
• RF Squelch (only passes signals exceeding programmed level)
• Mono-band and Memory-only Operating Modes
• Rugged Die-cast, Water-resistant Case Construction
• Huge LCD Display
• Transmit Time-Out Timer (TOT) and Automatic Power-Off (APO)
• Automatic Repeater Shift (ARS)
• YAESU’s exclusive ARTS™ (Auto-Range Transponder System) which "beeps" the user when you move out of ommunications range

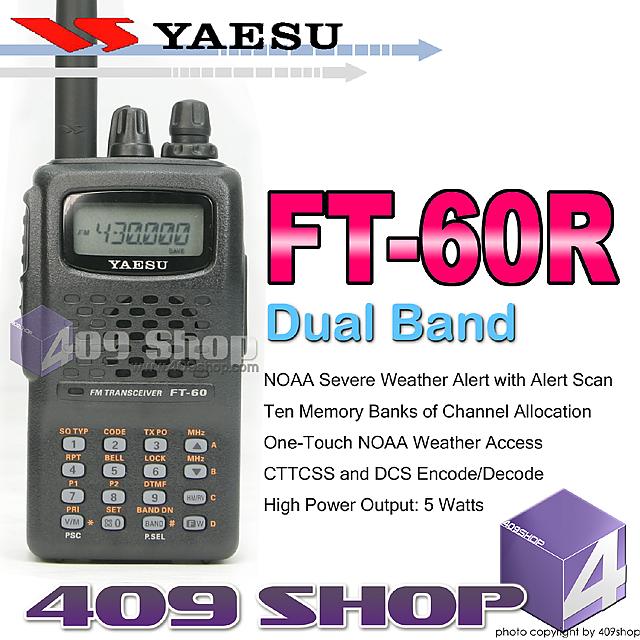

FT-60R Specifications

GENERAL
Frequency Range Receive:	108 - 137 MHz
0	137 - 520 MHz
0	700 - 999 MHz (Cellular Blocked)
Frequency Range Transmit:	137 - 174 MHz
0	420 - 470 MHz
Channel Steps:	5/10/12.5/15/20/25/50/100 kHz
Repeater Shift:	±600 kHz (VHF)
0	±1.6/5.0/7.6 MHz (UHF)
Emission Type:	F2, F3
Supply Voltage:	6 to 16 VDC Negative Ground
Current Consumption:	125 mA (Receive)
0	19 mA (Standby, Saver On)
0	0.8 mA (Auto power off)
0	1.3 A (TX 5W VHF)
0	1.5 A (TX 5W UHF)
Antenna Impedance:	50 Ohm SMA Type
Case Size:	2.3 (W) x 4.3 (H) x 1.2 (D) in. (58 x 109 x 30 mm)
Weight:	13.05 oz. (370 g.)
RECEIVER
Circuit Type:	Double-conversion superheterodyne (VHF/UHF)
IFs: 1st:	47.25 MHz & 450 kHz
Sensitivity (12dB SINAD):	0.16 µV (VHF 140-150 MHz)
0	0.2 µV (UHF 420-470 MHz)
Adjacent Channel Selectivity:	>__ dB (VHF)
0	>__ dB (UHF)
AF Output @7.5V, 10% THD:	400 mW @ 8 Ohm
TRANSMITTER
RF Power Output (@7.2V):	5, 2 & 0.5 watts
Frequency Stability:	better than ±5 ppm
Modulation Type:	Variable Reactance
Maximum Deviation:	±5 kHz
Spurious Emission:	>60 dB below carrier (High and Mid)
Microphone Impedance:	2 k Ohm
0
Specifications are subject to change without notice, and are guaranteed within amateur bands only.
Frequency ranges and repeater shift vary according to transceiver version.







PACKAGE CONTAIN 1x Yaesu FT-60R (Version :EXP) 1x FNB-83 7.2V 1400mAH Battery 1x SMA Dual Antenna 1x Charger NC-88 1x Belt Clip 1x English Operating Manual 1x Warranty Card
