編號: 1 x TH-F8 V
名稱: 1x TYT TH-F8 VHF 136-174Mhz Single band,Dual Display radio

優惠價: HKD 473.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情


THF8 VHF+4-001K

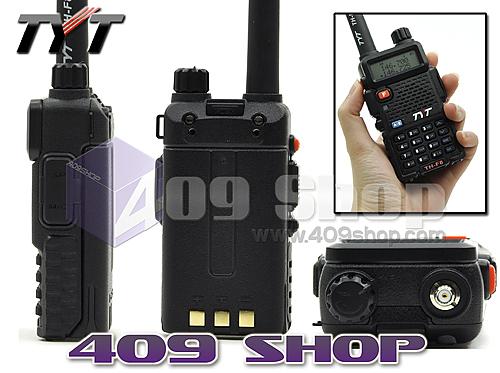

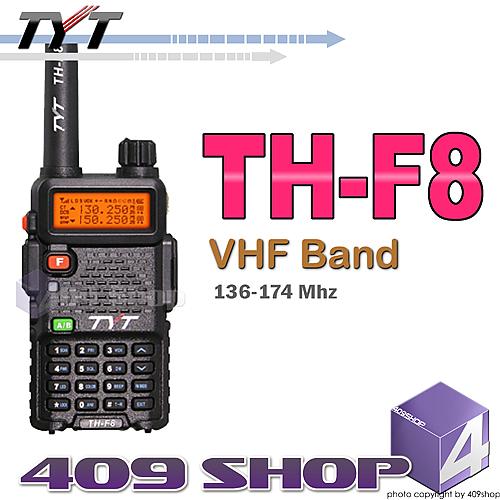

TYT TH-F8 VHF 136-174Mhz Single band,Dual Display radio

Description:

TH-F8 is a well-received amateur radio and it is good looking, nice design and excellent performance. .

Main Functions:



■  Single band, dual display, dual standby ■  A/B band independent operation
■  128 groups channels storage ■  Shortcut menu operation mode
■  VFO & Memory channels scan ■  Emergency Alarm
■  Tri-color background light selectable ■  0~9 grades VOX selectable
■  PTT & ANI ID ■  FM radio and 25 stations storage
■  Voice companding ■  CTCSS/DCS coder & tone searching
■  Wire clone & PC programmable
■  Wide/Narrow Band(25kHz/12.5kHz) ■  Transmitter time-out timer(TOT)
■  High/Low TX power selectable ■  Busy channel lock-out(BCLO)
■   ■
■




Specifications:



Item number TH-F8
General
Frequency Range 70-108MHz(FM Receive only)
136-174MHz
Channel No. 128
Frequency Stability ±2.5ppm
Antenna High gain antenna
Antenna Impedance 50Ω
Operating Voltage DC 7.4V
Mode of operation  Simple or semi-duplex
Dimension(W x H x D) 100 x 52 x 32 mm
Weight 250g(including battery, antenna)
Transmitter
Output power 5W / 1W
Modulation Mode 16kΦF3E / 11kΦF3E
Maximum deviation <5kHz(Wide) / <2.5kHz(Narrow)
Spurious Radiation <7μW
Adjacent Ch. power ≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics 6dB
Current ≤1.6A(5W)
CTCSS/DCS deviation 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity 8-12mv
Intermediation distortion <10%

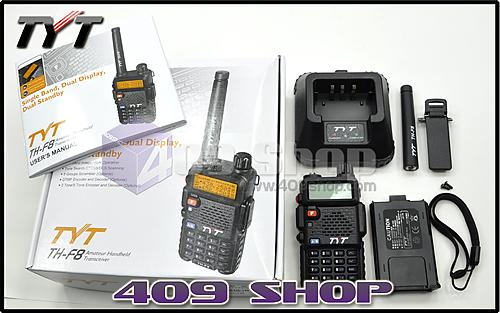

Each Set PACKAGE CONTAIN
  • 1 x TYT TH-F8 (VHF 136-174Mhz)
  • 1 x 7.4V 1600mah Li-ion Battery Pack
  • 1 x Antenna 136-174Mhz
  • 1 x Belt Clip
  • 1 x ENG Manual
  • 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
  • 1 x PTT Earpiece for free

**本機語言是英語設定,無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.
