2x UV-3R mark II

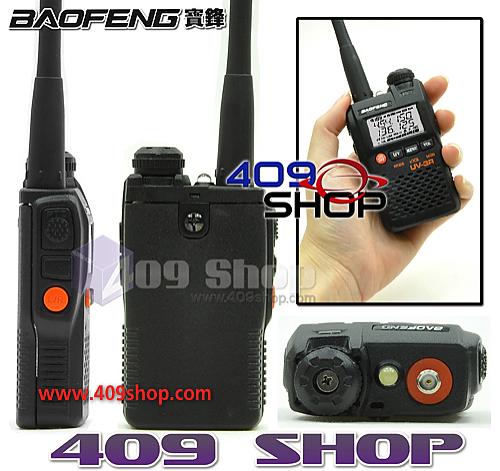

2 set BAOFENG UV-3R mark II Dual Diaplay VHF/UHF
BAOFENG UV-3R The transceiver is a micro-miniature multiband
FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability
VHF/ UHF DUAL-BAND TWO WAY RADIO
- Frequency Range: 136-174 / 400-470MHz
- Dual-Band Display, Dual Freq. Display, Dual-Standby
- Output Power: 2 Watts
- 99 Channels + 1 Emergency Channel
- 50 CTCSS and 104 CDCSS
- Built-in VOX Function
- 1750Hz Brust Tone
- FM Radio (87.0MHz-108.0MHz)
- LED Flashlight
- Large LCD Display
- High /Low Power Switchable
- 25KHz/12.5KHz Switchable
- Emergency Alert
- Low Battery Alert
- Battery Saver
- Time-out Timer
- Keypad Lock
- Monitor Channel
- Channel Step: 5/6.25/12.5/25KHz
|
Specifications:
| Frequency Range |
VHF136-174 UHF 400-470MHz (Dual Band) |
| Operating Voltage |
3.7V |
| Operating Temperature |
-30c~+60c |
| Battery |
(Li-ion) |
| Antenna Impedance |
50 ohm |
| Dimension(without antenna&battery(L×W×H) |
47*81*23(mm) |
| Weight(with antenna&battery) |
about 130g |
|
Transmitter
|
| RF Power Output |
UHF:2W/ |
| FM Noise |
65dB |
| Adjacent Channel Power |
45dB/42dB |
|
Receiver
|
| Spurious response rejection |
60dB |
| Receiver current |
400mA |
| Standby Current |
75mA |
|

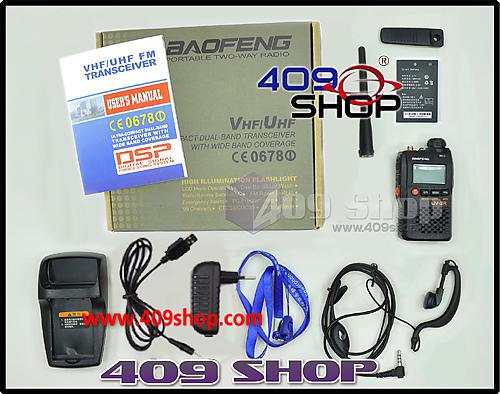

- 2 x BAOFENG UV-3R(markII) (VHF136-174 / UHF 400-470Mhz Dual Band)
- 2 x 3.7v Li-ion Battery
- 2 x Antenna.
- 2 x Belt Clip.
- 2 x ENG Manual
- 2 x Charger with Cable /PSU (Provide PSU plug for your Country)
- 2 x PTT Earpiece for free
- 2 x WRIST STRAP
|
|
|
|
