KGUV6D UU + 4-001K

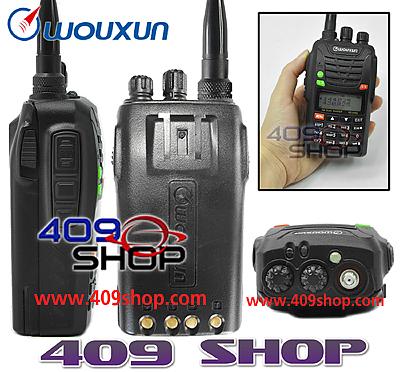

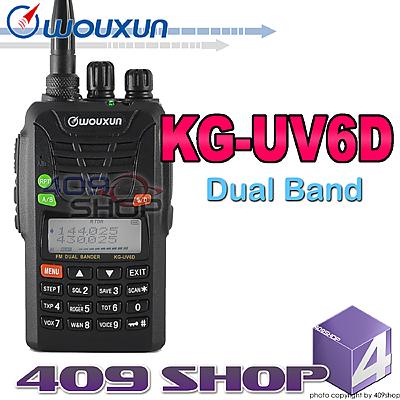

WOUXUN KG-UV6D Dual Band 136-174/420-520Mhz FM Radio
Features
- Dual band monitor (VHF/UHF, VHF/VHF, UHF/UHF)
- Dual alpha numeric, backlit display with channel name edit
- Selectable high/low power settings (VHF: 5W high/2W low) (UHF: 4W high/2W low)
- Includes extended life high capacity li-ion battery as standard
- Includes intelligent desktop 3-4 hour rapid charger
- Loud speaker audio output (500 mW)
- Bright flashlight illumination function
- Meets IP55 waterproof rating
- English female voice prompts enable non-sighted operation (can be turned off)
- 128 memory channels (shared)
- VOX Function
- Digital FM radio (76-108MHz) with automatic tuning and storing, radio frequency display, 18 FM memories in 2 banks
- Wide/narrow bandwidth selection (25 or 12.5 kHz)
- Power on display: show battery voltage, 6-character customizable welcome message, or display test
- Windows PC programmable, free software available for download. Optional low cost cable (SKU: WXUSB or WXSER) required.
- Radio to radio cloning with optional cable (SKU: WXCLN)
- Same channel: VHF TX & UHF RX or UHF TX & VHF RX available
- 105 groups DCS/50 groups CTCSS
- DTMF encoding (includes ABCD tones, continuous with button press duration)
- CTCSS encode/Decode (no decode delay)
- Stopwatch function
- SOS function
- Low-voltage voice prompt
- Busy channel lockout
- Selectable transmit over timer (from 15 to 600 seconds)
- Selectable step sizes of 5, 6.25, 10, 12.5, 25, 50 or 100 kHz
- Multiple scan modes including priority scan
- Keypad lock (auto or manual)
- Programmable by computer
- High contrast white backlit keypad. All keys are backlit (except A/B, S/D & RPT)
|
Specifications
|
KG-UV6D
|
|
Frequency Range (RX/TX)
|
VHF: 136-174 MHz
UHF: 420-520MHz MHz
FM: 76-108 MHz (RX only)
|
|
Memory Channels
|
199 channels (shared)
|
|
Operating Voltage
|
7.4 VDC
|
|
Operating Temperature
|
-22°F to 140°F (-30°C to +60°C)
|
|
Dimensions (W x H x D)
|
2.6 x 4.7 x 1.6 inches (65 x 119 x 39.5mm) (without antenna)
|
|
Weight
|
8.9 ounces (253 grams)
|
|
RF Carrier Power
|
VHF: 5W high/2W low, UHF: 4W high/2W low
|
|
Audio Output Power
|
500mW
|
|
Waterproof Rating
|
Meets IP55 waterproof rating
|
|
|
|
|
Antenna Impedance
|
50Ω
|
|
Sensitivity (12dB SINAD)
|
0.16 µV
|
|
Receive/Squelch Sensitivity
|
≤0.2 µV
|
|
Audio Distortion
|
≤5%
|
|
Audio Modulation
|
+3dB (pre-emphasis by 6dB between 0.3-3KHz)
|
|
Audio Response
|
(300-3,000Hz) +1 to -3dB
|
|
Performance of Amplitude Limiter
|
≤3
|
|
Effective Radiation Power (ERP)
|
within pre-determined value ≤±7.5dB
|
|
Maximum Frequency Deviation
|
25KHz ± 5KHz
|
|
Inter Modulation Attenuation
|
≥40dB
|
|
Modulation Distortion
|
≤10%
|
|
Co-channel Rejection
|
≥-8.0dB
|
|
Adjacent Channel Selection
|
Channel Space: 25KHz ≥ 70dB
Channel Space: 12.5KHz ≥ 60dB
|
|
Inter-modulation
|
≥ 65dB
|
|
Radiation
|
≥84dB
|
|
Spurious Radiation
|
9KHz to 1GHz ≤ -57dBm / 1GHz to 4GHz ≤ -47dBm
|
|
|

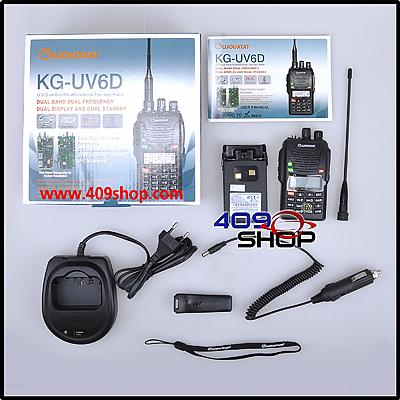

- 1 x KG-UV6D UU Dual Band 136-174 Mhz / 420-520Mhz .
- 1 x 7.4V 1700mAh Li-ion Battery Pack
- 1 x Antenna.
- 1 x Belt Clip.
- 1 x ENG Manual
- 1 x Desktop Charger with 100-240 PSU, fit for your country .
- 1 x Push to Talk Earpiece
|
|
|
|
|
|
**本機語言是英語設定，無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.
|
