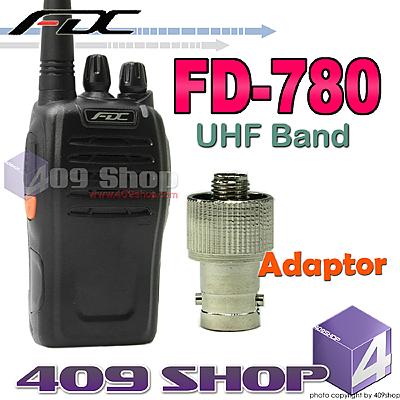

FeiDaxin FD780 UHF 400-470mhz FM radio
+ earpiece + Adaptor
Special features
- Emergency calling alarm function
- Voice function
- High sensitivity receiver
- Scan function
- Power output (4W/5W)
- Low battery alert
- Battery save function
- computer programmme
- TOT function
- High-quality Audio Output
- Built-in 50 groups of CTCSS and 105 groups of DCS
- Battery capacity indicator
- Monitor function
- Wide/Narrow bandwidth selection
- Battery save
- Busy channel lockout
Technical specifications
| Model NO. |
|
FD-780U
|
|
General
|
|
Frequency Band
|
|
UHF
|
|
Frequency Range
|
|
400-70MHz
|
|
Channel Capacity
|
16
|
|
Operating Voltage
|
7.2V DC ±15%
|
|
Antenna Impedance
|
50Ω
|
|
Channel Spacing
|
12.5kHz/25kHz
|
|
Working Temperature
|
-30 ℃ - +60 ℃
|
|
Frequency Stability
|
±2.5 ppm
|
|
Size (Without Antenna)
|
104(L)X62(W)X36mm(D)
|
|
Weight(With Battery)
|
About 225g
|
|
Battery
|
1300 mAh(Li-ion)
|
|
Transmitter
|
|
RF Power Output
|
5W/4W
|
|
Modulation Type
|
F3E
|
|
Modulation Distortion
|
< 5%(300-3000Hz)
|
|
Max Freq Deviation
|
< 5kHz(1000Hz When 100%)
|
|
FM Noise
|
<=-45dB
|
|
Receiver
|
|
Sensitivity(12Db SINAD)
|
0.16μV
|
|
Selectivity
|
55dB
|
|
Adjacent Channel Selecivity
|
>=70dB
|
|
Noise Respond
|
>=60dB
|
|
Communication Range
|
3-5km(Downtown),6-20km(In the Open Area)
|
|
FM Noise
|
30dB/40dB
|
|
Modulation Type
|
8K/16KF3E
|
|
Audio Power Output
|
500mW When Distortion Less Than 10%
|
|
Audio Distortion
|
< 5%
|
|
Operating Bandwidth
|
±3.75kHz/7.5kHz
|
|
Standby current
|
<15mA
|
FREE FOR Adaptor
FREE FOR
|
|

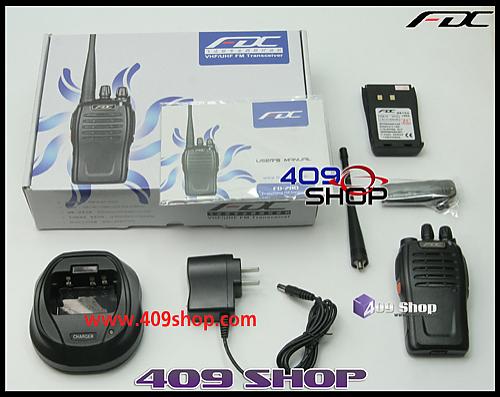

- 1x FD-780 UHF(400-470Mhz) Body Colour :Black
- 1x 7.4v 1300mah Li-ion Battery Pack.
- 1x Antenna.
- 1x Belt Clip.
- 1x ENG Manual
- 1x Wall PSU with Desktop Charger
- 1x earpiece
- 1x S002B Adaptor
