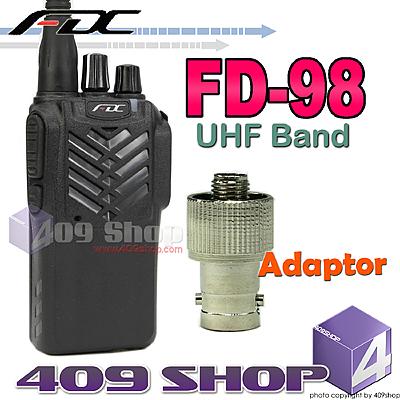

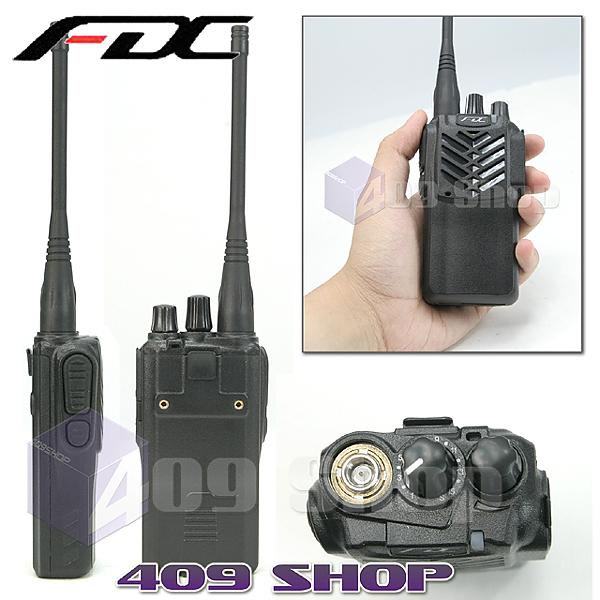

FD-98UH 460-480Mhz + S002B
Feidxin FD98
UHF460-480MHz Pro Ham Radio + Earpiece

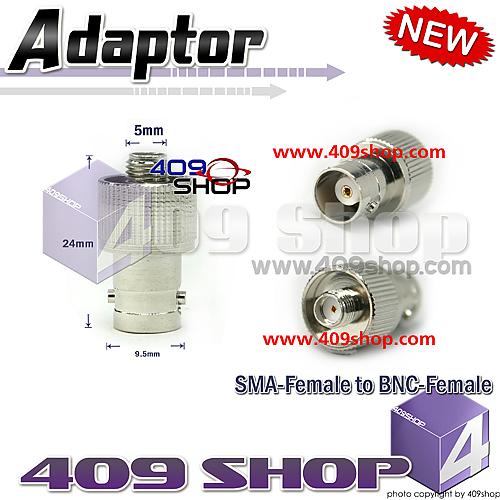

+ Adaptor
Output Power：2W
Frequency：UHF 460-480MHz
Channels：16 Semi-duplex channels
Channels Spacing: 25KHz/12.5KHz
Build-in QT（50 groups）/DQT（106 groups）
| specifications |
|
| Model NO. |
FD-98 |
| General |
| Frequency Band |
UHF |
| Frequency Range |
460-480MHz
|
| Channel Capacity |
15+1 |
| Operating Voltage |
3.7V DC ±10% |
| Antenna Impedance |
50Ω |
| Channel Spacing |
12.5kHz/25kHz |
| Working Temperature |
-30 ℃ - +60 ℃ |
| Frequency Stability |
±2.5 ppm |
| Size (Without Antenna) |
47mm(W)x97mm(L)x25mm(D) |
| Weight(With Battery) |
130g |
| Battery |
1200mAh(Li-ion) |
| Compatible With American Military Standard(MIL-STD-810C/D/E) |
| Transmitter（EIA-RS 316B STANDARD） |
| RF Power Output |
<5W |
| Modulation Type |
F3E |
| Modulation Distortion |
< 5%(300-3000Hz) |
| Max Freq Deviation |
< 5kHz(1000kHz When 100%) |
| FM Noise |
<=-45dB |
| Receiver |
| Sensitivity(12Db SINAD) |
0.18μV |
| Selectivity |
55dB |
| Adjacent Channel Selecivity |
>=70dB |
| Noise Respond |
>=60dB |
| Communication Range |
3-5km(Downtown),6-2km(In the Open Area) |
| FM Noise |
45dB/40dB |
| Modulation Type |
8K/16KOF3E |
| Audio Power Output |
500mW When Distortion Less Than 10% |
| Audio Distortion |
< 5% |
| Operating Bandwidth |
±3.75kHz/7.5kHz |
|
Free For
Adaptor
Free For
|
|

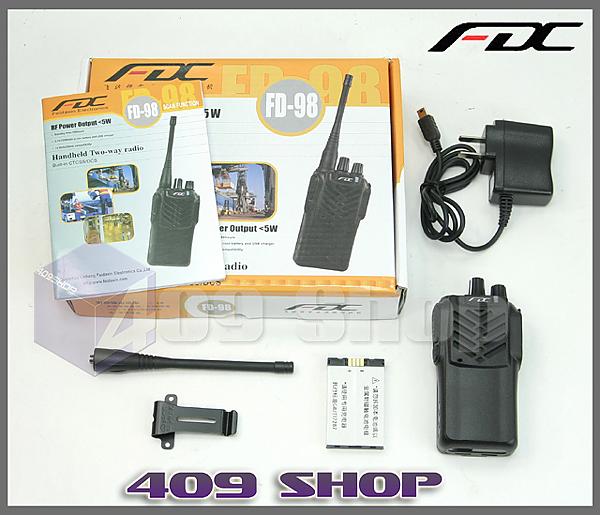

- 1 x FD-98 UHF(460-480Mhz) Body Colour :Black
- 1 x 3.7v 1200mah Li-ion Battery Pack.
- 1 x Antenna.
- 1 x Belt Clip.
- 1 x ENG Manual
- 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
|
|
|
|
