編號: 1 x TH-9000U
名稱: 1 x TYT TH-9000 UHF 400-490Mhz Mobile Radio

優惠價: HKD 1,260.00
貨幣單位:: HKD
可以寄往: 香港
這拍賣已經不存在或者被管理員暫停了   0
  詳情


TH9000U

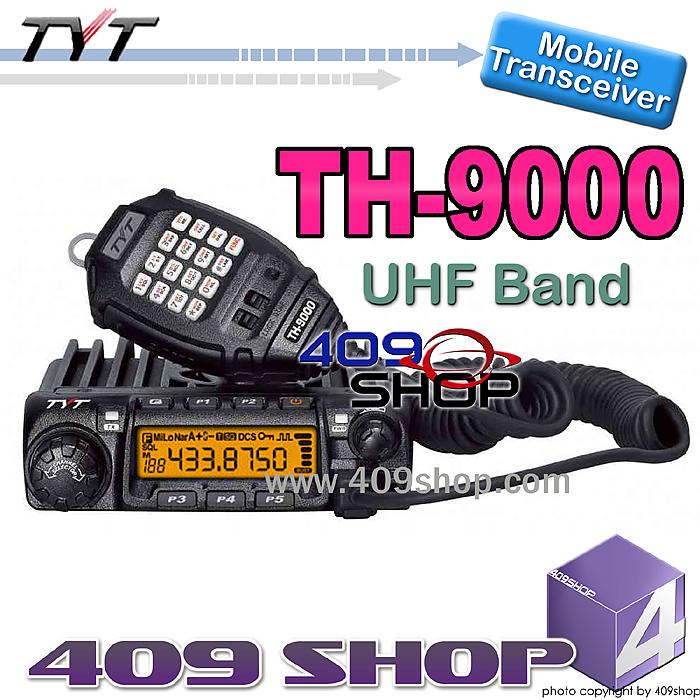

TYT TH-9000 UHF 400-490Mhz Mobile Radio

Main Function:

■  Frequency:             UHF: 400-490MHz
■  Output Power:         UHF: 45W/25W/10W
■  1750Hz Tone
■  CTCSS/DCS setting & scanning
■  0-9 SQL grade setting
■  Frequency/Channel scanning
■  High/Mid/Low power selectable
■  Voice compander
■  Repeater offset shift
■  Keypad lock function
■  Contact book
■  Battery voltage display
■  DTMF/2 tone/5 tone
■  ANI ID
■  Remote kill/ stun/ activate/ revive
■  Emergency alarm
■  Wide/Narrow band setting
■  TX inhibit
■  Busy Channel Lock-Out
■  Channel name editing
■  Reverse frequency
■  Talk around
■  Voice prompt
■  Time-out Timer
■  Auto Power off
■  VFO step setting:5/6.25/10/12.5/20/25/50kHz



Specifications:

                    Item Number
                      TH-9000
                                                              General
Frequency Range
400-490MHz
Channel Capacity
200
Channel Spacing
5/6.25/8.33/10/12.5/15/20/25/30/50KHz
Frequency Stability
2.5ppm
Operating Temperature
-20℃ ~ + 60℃
Operating Voltage
13.8V DC ± 15%
Dimension(HxWxD)
                           145mm x190mm x47mm
Weight(with bracket)
1200g
                                                                           Receiver
Reference Sensitivity
0.25V / 0.35V
Operating Bandwidth
60dB@12.5KHz /70dB@25KHz
Adjacent Channel Selectivity
60dB@12.5KHz 70dB@25KHz
Inter-modulation Rejection
≥60dB/ ≥65dB
Spurious Response Rejection
≥70dB
Rated Audio Response
+1-+3dB
Rated Audio Distortion
<5%
FM Hum&Noise
≥40dB@25KHz /≥45KHz @12.5KHz
                                                                             Transmitter
RF Power
45W/25W/10W(UHF)
Frequency Modulation
11kΦF3E / 16kΦF3E
Modulation Distortion
<5%
FM Noise
≥36dB@25KHz /≥40KHz @12.5KHz
Adjacent Channel Power
≥60dB@12.5KHz /≥70KHz @25KHz
Audio Response
+1-+3dB
Audio Distortion
<5%







Each Set PACKAGE CONTAIN
  • 1x TYT TH-9000 UHF 400-490Mhz Mobile Radio
  • 1x Microphone
  • 1x Mobile Mounting Bracket
  • 1x DC Power Cable
  • 1x A Pack Of Screw And Accessories
  • 1x English Manual
