編號: 1 x 4-094+44-J
名稱: 1 x BIG Switch Forehead/Throat Mic +Mini Din Plug 44-J

優惠價: HKD 218.00
貨幣單位:: HKD
可以寄往: 香港
這拍賣已經不存在或者被管理員暫停了   0
  詳情

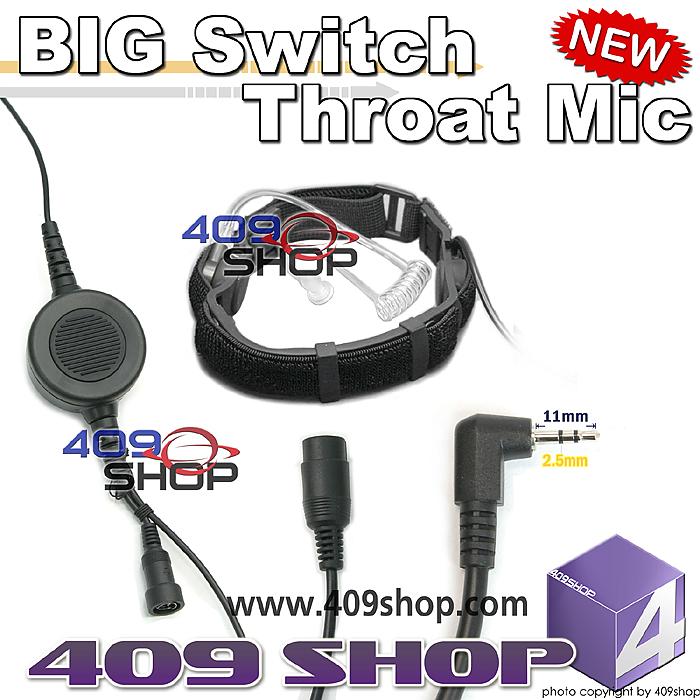

4-094+44-J :BIG SWitch Forehead/Throat Mic
Fit for JINGTOG JT-208 JT-308 Quansheng TG-5A (J Plug)

The forehead mic transmits your voice by the vibration of your skull. It transmit crystal clear sound without the need to talk before a boom mic. It is attached to an elastic Velcro strap that suits head sizes from 12 to 25 inches.

The forehead mic can be easily hidden under a helmet or cap. You can also wear it on your throat and it could be easily hidden under the collars.

Since the microphone transmits directly from your forehead or throat, it is not sensitive to the background noise. This is exceptionally ideal for usage in high ambient environment such as driving, riding motorcycles and bicycles. Besides, the easily adjusted Velcro strap fixes the position of the sensor / microphones so that it would not be misplaced even under constant movement. An ideal choice for hardcore operations.

With the best-quality transparent acoustic tube that could hardly be detected by people around you, this is also ideal for surveillance purposes and security at airports, casinos, crowd control at conventions and concerts, and other working environment requiring discreet communications.

Include BIG PTT switch , For radios it can easy work in PTT mode.

There are two speakers / sound outputs on the forehead mic: the plug for acoustic tube earpiece (provided) and a 3.5mm plug for a pair of standard stereo earphones (not provided).

The plug leading to the two-way radio is also detachable. It is to be connected by a 6-pin mini din plug. The packages comes with the two-way radio plug for the specified models (see specifications on the left). If you would like to work with radios with different accessory jacks, just come and purchase the suitable cables and plug into your throat mic.

Technical data of earphone speaker

-Transducer: moving coil dynamic speaker Impedance: 32Ω +/- 15% @ 1kHZ
-Sensitivity: 120 +/- 3dB @ 1kHZ
-Resonance freq (FO) 400HZ +/- 20%
-Rated input power: 200mW Maximum input power: 500mW

Technical data of microphone

-Sensitivity: -38+/-2dB @ 1kHZ 2.2KΩ 3V 0dB=1v/pa
-Impedance: Max. 2.2kΩ @1kHZ
-Directivity: Omni-directional Frequency: 100Hz - 16000Hz
-Max operation voltage: 10V
-Standard operation voltage: 3V;
-Current consumption: Max. 0.5mA;
-S/N ratio: Min. -58dB @1kHZ

-Best fit forehead / neck size: 12" - 18"












PACKAGE CONTAIN



PACKAGE CONTAIN
  • 1 x BIG SWitch Forehead/Throat Mic
  • 1 x Mini Din Plug for JINGTOG JT-208 JT-308 Quansheng TG-5A

C






J
Plug

Compatible Radio Models

JINGTONG JT-208 JT-308 JT-2118 JT-3118
Kington KG-2118 KG-3118 KG-208 KG-308
Kensung KG-528 KG-628 KG-2118 KG-3118  KG-2288 KG-3288
KG-5228 KG-6228
Quansheng TG-5A, TG-Q5, TG5AU-PLUS








MINI DIN PLUG of Earpiece Series

MINI DIN PLUG of Speaker/Mic Series
