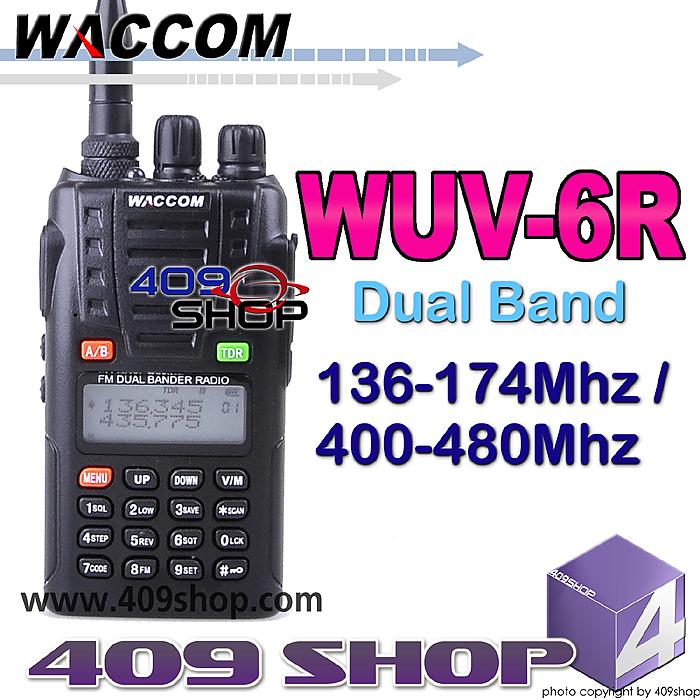

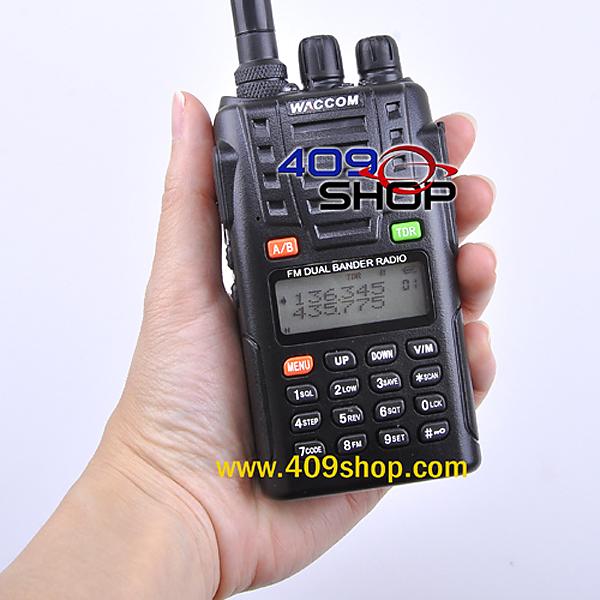

WACCOM WUV6R 136-174/400-480MHZ Radio
Dual band ham radio

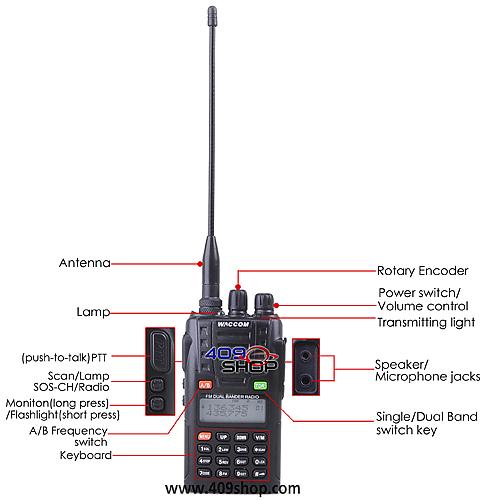

Main Functions:
- U.V. Dual band, Dual frequency, Dual display, Dual standby
- Power-on password setting
- Auto keypad lock
- Channel scan/Full frequency scan
- VOX function
- Power-on character editting
- Battery voltage display
FM radio
Technical specification:
| Modulation distortion |
≤10% |
Residual FM |
≤-35dB |
| Residual AM |
≤3% |
| Receiver Specifications |
| Sensitivity (12dB SINAD) |
0.16μV |
Squelch rejection sensitivity |
≤0.8μV |
| Squelch sensitivity |
≤0.2μV |
Audio output power |
500mW |
| Audio distortion |
≤5% |
Audio response |
(300-3000Hz)+1 to -3dB |
| Co-channel rejection |
≥-8.0dB |
Performance of amplitude limiter |
≤3 |
| Adjacent channel selection |
Channel space:25KHz ≥70dB Channel space:12.5KHz ≥60dB |
| Spurious radiation |
9KHz-1GHz≤-57dBm 1GHz-4GHz≤-47dBm |
| Transmitter specifications |
| Frequency stability |
±2.5ppm |
Spurious radiation |
≤-30dB |
| RF carrier power |
UHF:4W VHF:5W |
Inter modulation attenuation |
≥40dB |
| Effective radiation power (ERP) |
Within pre-determined value ±7.5dB |
| Max. frequency deviation |
Channel space:25KHz ±5KHz Channel space:12.5KHz ±2.5KHz |
| Adjacent channel power |
Channel space: 25KHz ≥70dB Channel space:12.5KHz≥60dB |
| Audio modulation |
+3dB (pre-emphasis by 6dB between 0.3-3KHz) |
| Modulation distortion |
≤10% |
Residual FM |
≤-35dB |
| Residual AM |
≤3% |
| Receiver Specifications |
| Sensitivity (12dB SINAD) |
0.16μV |
Squelch rejection sensitivity |
≤0.8μV |
| Squelch sensitivity |
≤0.2μV |
Audio output power |
500mW |
| Audio distortion |
≤5% |
Audio response |
(300-3000Hz)+1 to -3dB |
| Co-channel rejection |
≥-8.0dB |
Performance of amplitude limiter |
≤3 |
|
Adjacent channel selection
|
Channel space:25KHz ≥70dB Channel space:12.5KHz ≥60dB |
| Spurious radiation |
9KHz-1GHz≤-57dBm 1GHz-4GHz≤-47dBm |

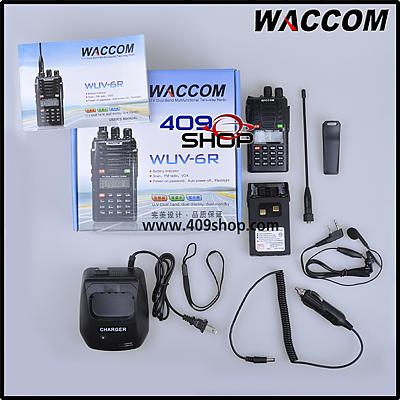

- 1 x WACCOM WUV-6R (136-174/400-480MHZ )

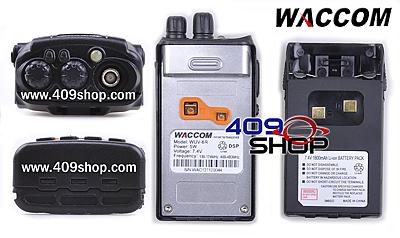

- 1 x 7.4V 1800mah Li-ion Battery Pack
- 1 x DUAL BAND Antenna
- 1 x Belt Clip
- 1 x ENG Manual
- 1 x 12 V Car charger Cable cord for desktop charger only
- 1 x Push to Talk Earpiece
- 1 x WRIST STRAP

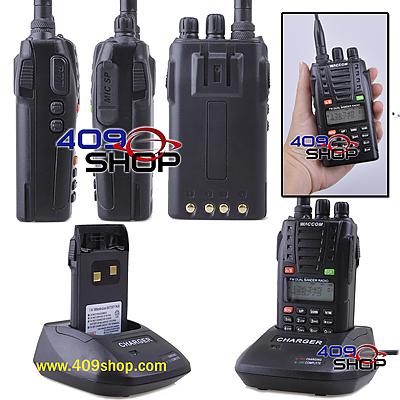

- 1 x Desktop Charger *
*100V ~ 240V PSU ( Provide Plug for USA / UK / EURO / Australia)
i
|
|
**本機語言是英語設定，無法轉為中文
