BJUV55

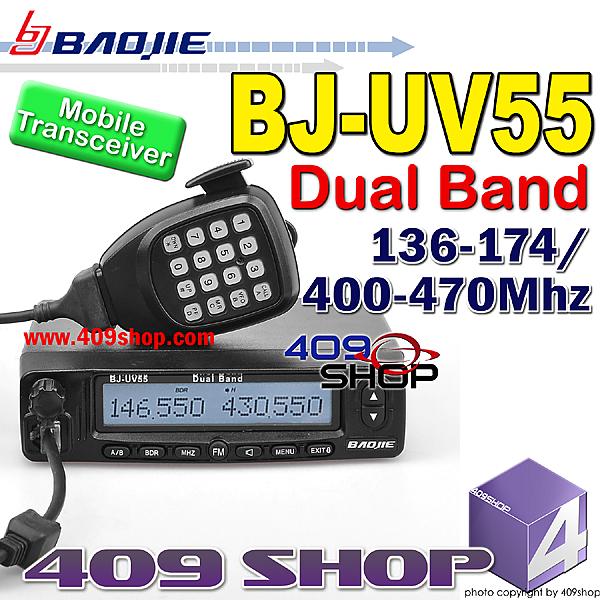

BAOJIE BJ-UV55 Dual Band 136-174/400-470MHZ Transceiver
Product Description:
1. DTMF Signaling
Main Functions:
Frequency range: 136-174/400-470MHz
Output Power: VHF:45W/UHF:35W
128 memory channels
Dual frequency display
DTMF signaling system
50 Groups CTCSS and 105 Groups DCS
Wide (25KHz) and Narrow (12.5KHz) selectable
Setting FM radio
All calls, group calls and selective calls
Inspection, Monitor, Stun and Kill
Communication through repeater
U/V inter-band communication
Distant urgency alarm
ANI code switch
Busy channel lockout
3 kinds of scan mode
Mute mode
DTMF sidetone switch
Weight About: 1200g
Dimension: 160*43*137mm (projection not included)
Transmitter
RF output power VHF 45W/UHF 35W
Spurious and harmonics 70dB
Modulation Wide: 16K0F3E Narrow: 11K0F3E
FM Modulation Noise Wide: 45dB Narrow: 40dB
Audio distortion Less than 3%
Frequency Stability ± 2.5ppm
Receiver
Sensitivity(12dB SINAD) Wide: 0.18uV Narrow: 0.22 uV
Selectivity Wide: 70 dB Narrow: 60dB
Inter-modulation Wide: 70 dB Narrow: 60dB
Spurious response 75dB
Audio power output 4.0W/8Ω
Frequency Stability ± 2.5ppm
General
Frequency range 136-174MHZ 400-470MHZ
Memory channels 128
Bandwidth Wide: 25kHz Narrow 12.5kHz
PLL channel stepping 5, 6.25kHz
Operating voltage 13.8VDC± 15%
Operate temperature range - 30° C-+60° C
Weight 1200g
Dimensions 160*43*137mm

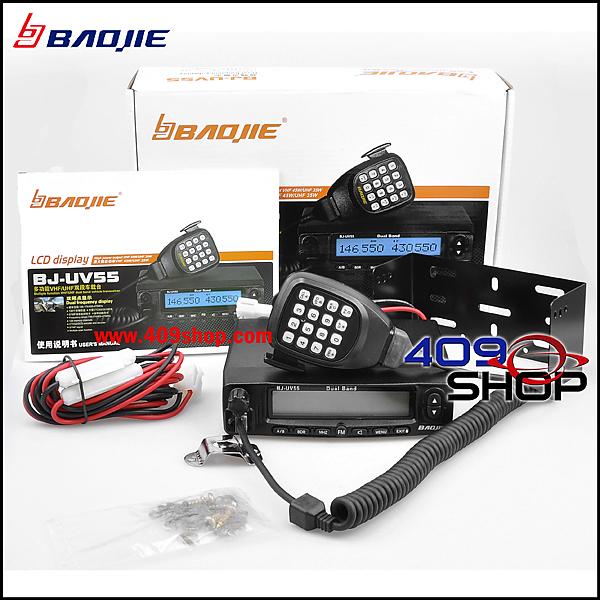

PACKAGE CONTAIN
**本機語言是英語設定，無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.
VIDEO
