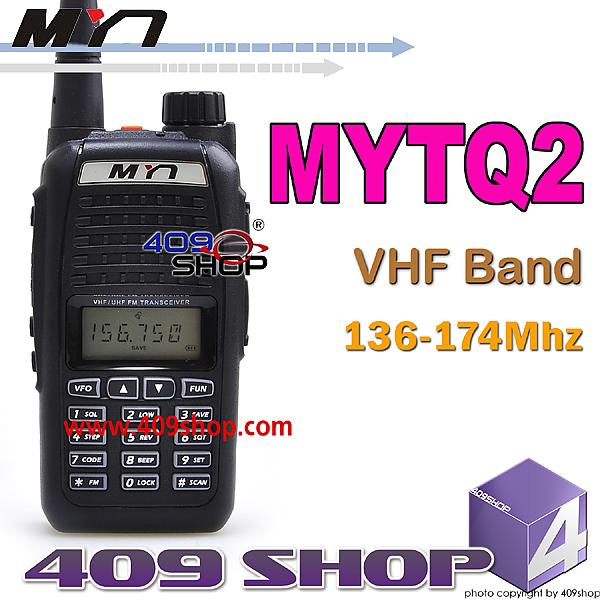

MYT MYTQ2V (BLACK) VHF 136~174MHZ HANDHELD RADIO
Features
CTCSS/DCS
Scan
Backlight
FM radio
Keypad lockout
High/low power selective
BCL function
Chinese and English voice prompt
VOX function
TOT function
Specifications
|
model
|
MYT-Q2
|
|
General Specifications
|
|
Power Supply
|
7.5V DC ±20%
|
|
Operating Temperature
|
-25℃~ + 55℃
|
|
Number of Channels
|
128
|
|
Dimensions
|
120*57*30mm
|
|
Weight
|
215g
|
|
Transmitter Specifications
|
|
Frequencies - Full Band split
|
VHF: 136MHz~174MHz
|
|
Frequency Stability(-25 to 55, 25 Ref)
|
2.5ppm
|
|
Power Output
|
5W
|
|
Modulation Limiting
|
±≤5KHz@25KHz
|
|
FM Hum & Noise
|
45dB@25KHz,
|
|
Conducted/Radiated Emission
|
-36dBm < 1GHz, -30dBm > 1GHz
|
|
Adjacent Channel Power
|
-65dB @ 25KHz,
|
|
Audio Response (300-3000Hz)
|
+3 ~ -3 dB
|
|
Audio Distortion
|
< 5%
|
|
Receiver Specifications
|
|
Frequencies - Full Bandsplit
|
VHF: 136MHz~174MHz
|
|
Sensitivity(12 dB SINAD)EIA
|
0.25μV@12.5KHz/25KHz typical
|
|
Intermodulation EIA
|
60 dB
|
|
Adjacent Channel Selectivity
|
65 dB@20/25KHz
|
|
Spurious Rejection
|
70 dB
|
|
Rated Audio
|
1W
|
|
Audio Distortion @ Rated Audio
|
5%
|
|
Audio Response (300-3000Hz)
|
+3 ~ -3 dB
|
|
Conducted Spurious Emission
|
-58 dBm<1 GHz, -47 dBm>1GHz
|
**本機語言是英語設定，無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.
Earpiece / mic type : MT Plug type
Antenna : SMA -Female
Photo will have chromatic aberration compared with the product

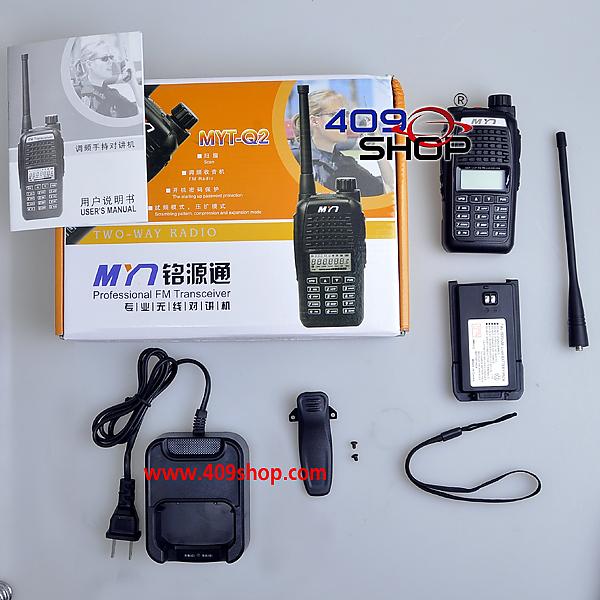

- 1 x MYT MYTQ2V (Black) VHF 136-174Mhz Radio

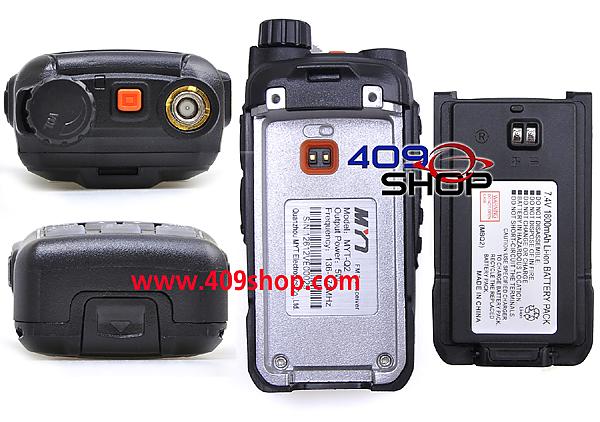

- 1 x 7.4V 1800mah Li-ion Battery Pack.
- 1 x Sma-Female 136-174Mhz Antenna
- 1 x Wrist Strap
- 1 x Belt Clip
- 1 x English Manual
- 1 x Earpiece

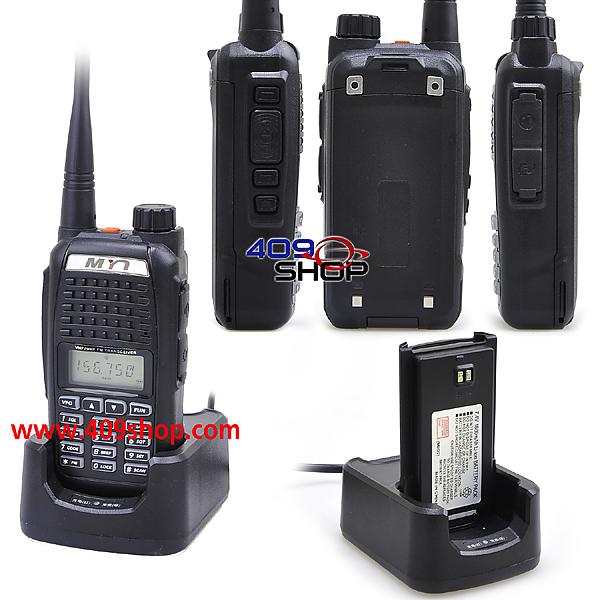

- 1 x Desktop Charger *
*100V ~ 240V PSU ( Provide Plug for USA / UK / EURO / Australia)
