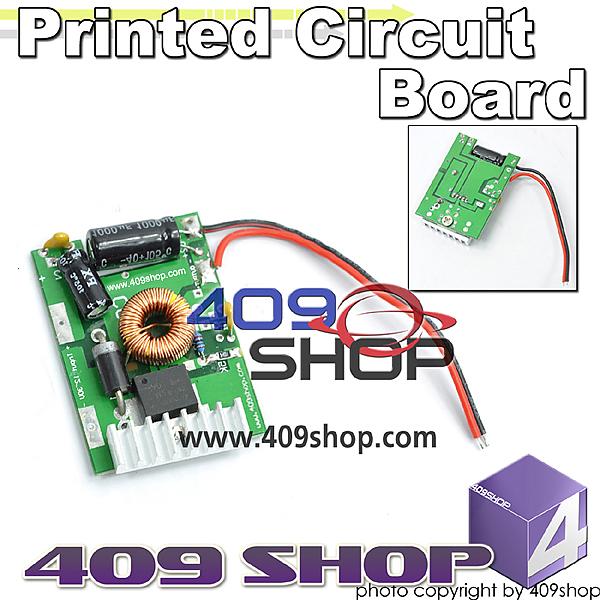

This is a DC step-down power module output voltage 8.4V when input 12-30V Output current rated at around 2.5A and max. up to 3A continuously with good ventilation or heat sink adopt . High efficiency is up to 93%
Specifications:
- Dimension: 48(L)x33(W)x8.5mm(H)
- Input voltage: DC 12-30V
- Output Voltage: DC 8.4V
- Output current: Rated current 2.5A, max up to 3A(heat sink is required)
- Voltage difference: + - 0.2V
- Conversion efficiency: Up to 93% (O/P voltage higher, the higher the efficiency)
- Potentiometer adjustment direction: Clockwise (increase), counterclockwise (decrease)
- Operating temperature: Industrial grade (-40 ℃ to 85 ℃)
- Static power consumption is only about 6mA.
- Dynamic response speed: 5% 200uS
- Load regulation: ± 1%
- Voltage regulation: ± 0.5%
|
