Model

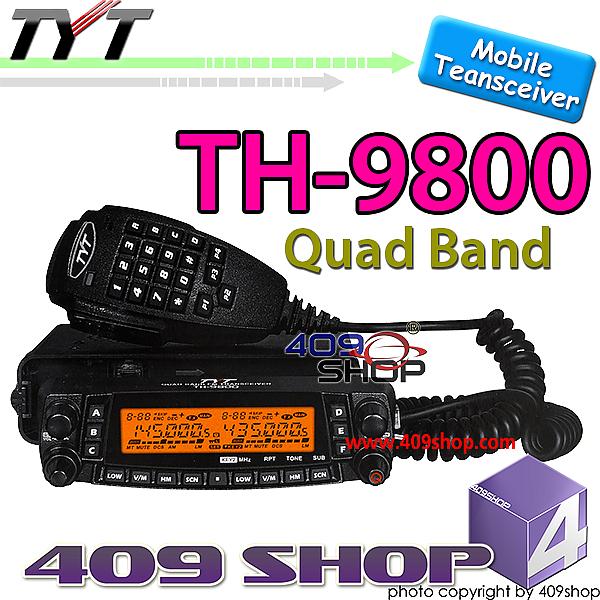

TH-9800

Frequency range

Left Band:
RX:26-33 47-54 108-180 350-399.995 400-512 750-950MHz
TX:26-33 47-54 134-174 400-480MHz

Right Brand
RX:134-180 400-512MHz
TX:134-174 400-480MHz

Quad band Transmitter and receiver

29/50/144/430MHz

Channel steps

2.5/5/6.25/7.5/8.33/10/12.5/15/25/30/50kHz

Modes of emission

FM

Antenna impedance

50 ohm Unbalanced(antenna duplexer built-in)

Frequency stability

±5ppm

Operating temperature range

-20°C—60°C

Supply voltage

13.8V DC

Current consumption

RX:0.5A TX:8.5A

Case size(W x H x D)

140 x 41.5 x 168mm

Weight

About 1.2kg

Main features

Cover 29/50/144/430MHz four transmitting bands

Yes

Wide receiving range:26-33 47-54 108-180 320-512 750-950MHz

Yes

AM Air-band reception capability

Yes

Independent controls for each left and right band

Yes

V+U,U+U,V+U simultaneous receive capability

Yes

Built-in V+U cross band repeater and full duplex capability

Yes

800memory channels and independent setting per channel

Yes

50W of high power output for VHF band and 40W for UHF band

Yes

Standard 50 groups of CTCSS tone and 104 groups of DCS code

Yes

User-defined CTCSS tone and DCS code capability

Yes

DTMF/2-tone/5-tone for selective calling

Yes

Encryption scramble(8 group)

Yes

Automatic repeater SHFT(ARS)

Yes

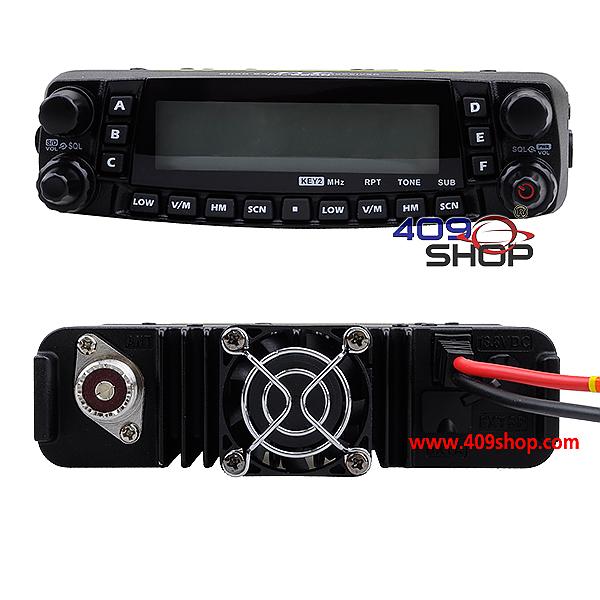

Detachable front controller and remote mounting capability

Yes

Ultra-size LCD dual display screen

Yes

User-programmable microphone keys

Yes

Adjusting the squelch level

Yes

Selecting the operating band

Yes

Memory scanning VFO scanning

Yes

Cross-band repeater operation

Yes

Specifications

Output power

50/20/10/5W (29/50/144MHz)

40/20/10/5W (430MHz)

Maximum deviation

±5kHz

Spurious radiation

<-60dB(29MHz:<-50dB)

Modulation distortion

<3%

Microphone impedance

2k ohm

Receiver

Intermediate frequency

49.95mhZ/450khZ(Left band)

38.85MHz/450MHz (Right band)

Sensitivity(for 12dB SINAD)

<0.2µV

Squelch sensitivity

<0.16µV

Selectivity

12kHz/30kH
