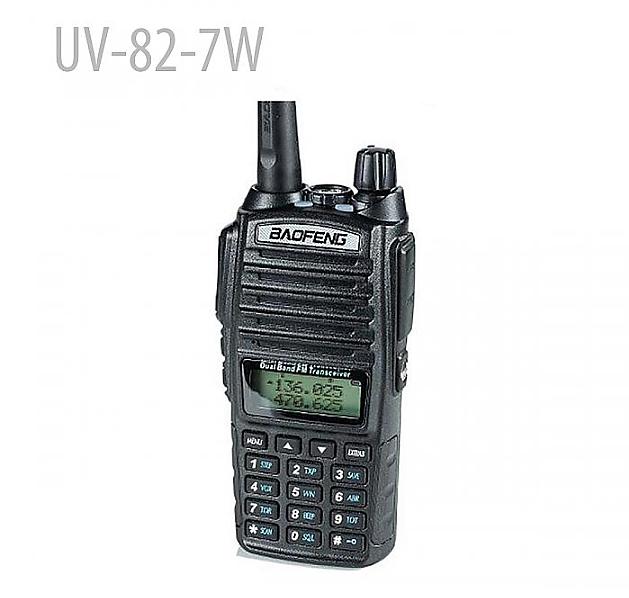

Baofeng UV-82-7W high power tri-power Dual Band two way radio
High Output 7 Watt UV-82-7W
The UV-82-7W is the second generation of the classic UV-82 Series. Some new features found in the UV-82HP are the three selectable power levels (Low - 1 watt, Medium - 5 watt, High- 7 watt) allowing for a high-output of seven watts.
THE DUAL PUSH-TO-TALK DIFFERENCE
The UV-82 Series come with a dual push-to-talk button. The dual PTT is a huge leap forward in the HT technology. It allows you to transmit on two frequencies by the use of the rocker PTT switch. By pressing up you can transmit on "Frequency A" and by pushing down you can transmit on "Frequency B". Frequency A or B can also be used as a scanner of channels, frequencies, CTCSS and DTS tones.
On the BaoFeng UV-82-7W you are able to synchronize the PTT button to enable single Push-to-Talk communications.
The BaoFeng UV-82 Series
The UV-82 series has upped the bar on affordable ham radio technology! Compared to previous BaoFeng products the UV-82 comes with a much louder speaker (1 watt), a much more solid case with larger buttons, and a new chipset and PCB board that outperforms the range, accuracy, and output of the previous BaoFeng chipsets. It is not simply a remake but a new radio from the ground up. It outperforms the the 2nd Gen UV-5R chipset .
Dual Watch Receiver
The UV-82HP has one built-in receiver but can "watch" two channels (semi duplex). Monitor two different frequencies (even on different bands (VHF/UHF)) and the radio will monitor both frequencies giving priority to the first station to receive an incoming call.
FM Broadcast Station
You can listen to the FM Broadcast radio, while still monitoring your radio frequencies in the background. Any incoming call will be given priority insuring you never miss an important call while listening to the radio.
Group Tones supported
The UV-82-7W supports the most common Analog Tones. It supports CTCSS, DCS, and DTMF calling methods. Set-up your calling methods to call by group tones. Tone calling (private line) is required by most repeater applications and the UV-82-7W supports the latest standards
The UV-82-7W can even send DTMF tones. This allows for sending ANI (Caller ID) or remote commands that require DTMF tones
Internal VOX function
The UV-82-7W has an internal VOX (Voice Operated Transmit) function for convenient hands-free operation and can be used in conjunction with the included earpiece and mic. The VOX level and VOX delay time are adjustable your needs.
Customize Your Operation with channels, Programmable Buttons, and more!
You can program your UV-82-7W exactly how you want it. There are 128 programmable memory channels. You can add or remove channels from scanning list using the free computer software. You can give channels alphanumeric names, using a computer. The radio has 3 power levels (7 watt maximum), allowing you to choose how far you can communicate. You can set VFO limits using the CHIRP software. You can easily program from a PC to set-up the radio to operate exactly as needed.
Features
Single or Dual PTT Selectable Switch
VFO (Frequency) and Menu Lockout
Selectable Tone Burst: 1000hz, 1450hz, 1750hz, 2100hz
25KHz/12.5KHz Switchable (Wide/Narrow Band)
FM Radio (65.0MHz-108.0MHz)
Large Tri-color LCD Display (3 Selectable Colors)
LED Flashlight
High/ Mid /Low RF Power Switchable
VOX
50 CTCSS/ 104 DCS Tones
Tone searching/scanning
Dual standby
PC programmable
Transmitter time-out timer(TOT)
Busy channel lock-out(BCLO)
Frequency range:
[TX] 136 - 174MHz, 400 - 520MHz
[RX] 136 - 174MHz, 400 - 520MHz, 68-108MHz (FM Broadcast)
Channel Capacity:128 Channels
Channel Spacing : 25KHz (wide band)12.5KHz (narrow band)
Sensitivity : ≤0.25μV (wide band) ≤0.35μV (narrow band)
Operation Voltage : 7.4V DC ±20%
Battery : 1800mAh
Frequency step : 2.5, 5, 6.25, 10, 12.5, 20, 25, 30 and 50KHz
Antenna: : Antenna Connector: SMA-Female / Antenna Impedance: 50Ω
Accessory Connector : Kenwood 2 Pin Standard
Stability : ±2.5ppm
Output power : 7W / 5W / 1W
Audio Power Output : 1000mW/10%

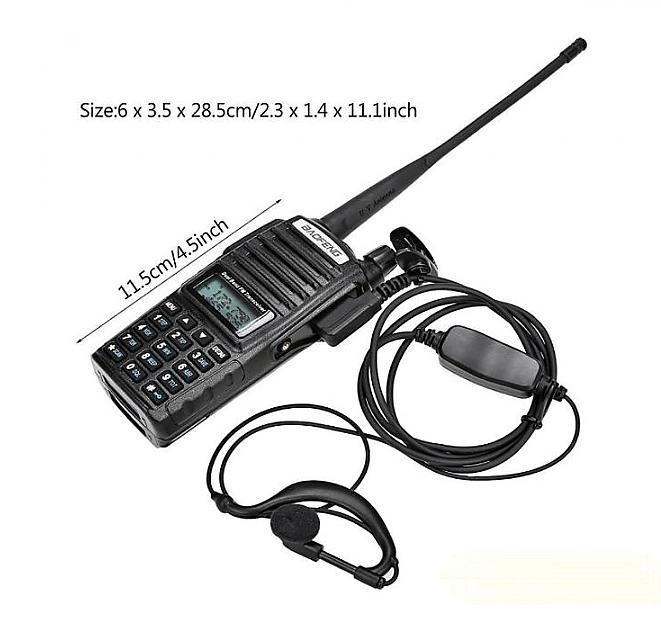

Product Content
1 x BaoFeng UV-82-7W Radio
1 x 1800mAh Battery
1 x V/U Antenna
1 x Power Adapter
1 x Earpiece
1 x Belt Clip
1 x Hand Strap
1 x Battery Charger
1 x User Manual
1 x S013F (FREE)
