UNI260K

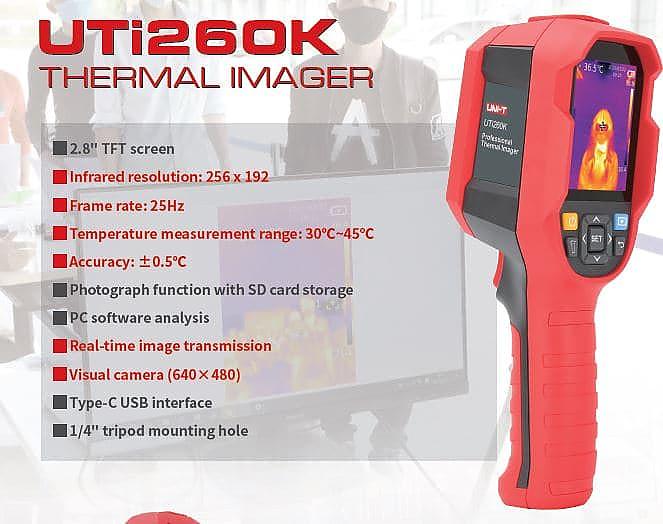

UNI-T UNI260K ALARM BUZZER THERMAL IMAGINING INFRARED CAMERA THERMAL IMAGERS
Features:
* Measurement Range: 30℃ ~45℃(℃ and ℉ switch)
* Accuracy: ±0.5℃ (1m)
* Temperature Alarm: High/Low Temperature

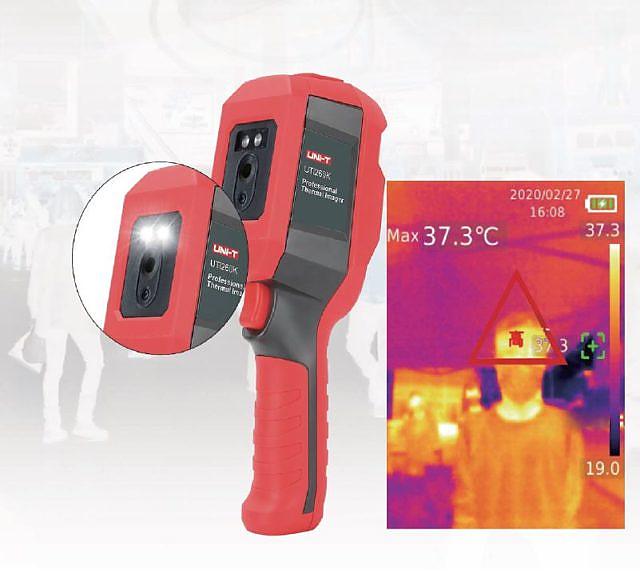

* Image Mode: Thermal Image, Visible Light Image, Blending Image
* Recommended Measuring Distance: 100CM

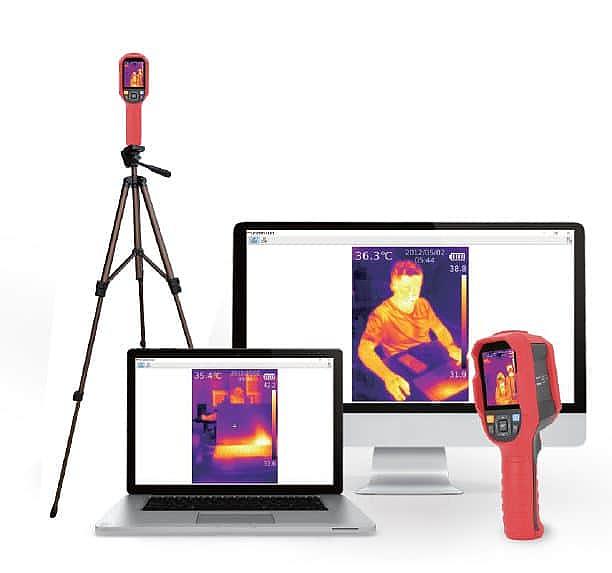

* Realtime Monitoring and tracking from PC
* Taking photo and save to SD card
* PC Software analysis
* Tripod mounting hole(1/4 inch)
Specifications
Model : UTi260K
Sensor : Uncooled focal plane
Temperature range : 30˚C~45˚C
Resolution : 0.1˚C
Accuracy : ±0.5℃ （@ 25℃ ambient temperature）
Optimal measuring distance : 1m
Temperature measurement response time : ≤500ms (95% of reading)
Thermal resolution : 49152 (256×192)
Pixel dimemsions : 12μm
Palettes : Iron red, rainbow, glowing white, glowing black, glowing red, lava, high-contrast rainbow
Bandwidth of infraed spectroscopy : 8~14μm
Field of view (FOV) : 56°(H) × 42°(V)
Instantaneous field of view (IFOV) : 3.8mrad
Thermal imaging sensitivity : ＜50mk
Frame rate : ＜25Hz
Temperature display : Center temperature measurement and high temperature tracking (default)
Image format : BMP
Image modes : Thermal camera, visible camera, image blending
Temperature measuring point : Besides central point, 3 temperature measuring points can be added
Visual camera : √
Resolution of visible light : 640×480
Display resolution : 320×240
Image blending : 0% (total visual camera), 25%, 50%, 75%, 100% (total thermal camera)
PC analysis software (PC) : √
Real-time image transmission : PC software image projection
Data communication : Type-C USB
Auto power off : Selectable (5min, 10min, 30min), 30min auto power off (default)
Battery life : ≥6 hours
Charging time : ≦5 hours
Charging voltage/current : 5V/2A
Image storage : 16G Micro SD card
General Characteristics
Power : A single Li-ion 3.7V/5000mAh 26650 battery
Display : 2.8" TFT LCD
Product color : Red & grey
Product size : 236mm x 75.5mm x 86mm
Standard accessories : Manual, Type-C USB cable, 16GB TF card
Standard carton gross weight : 2.2kg

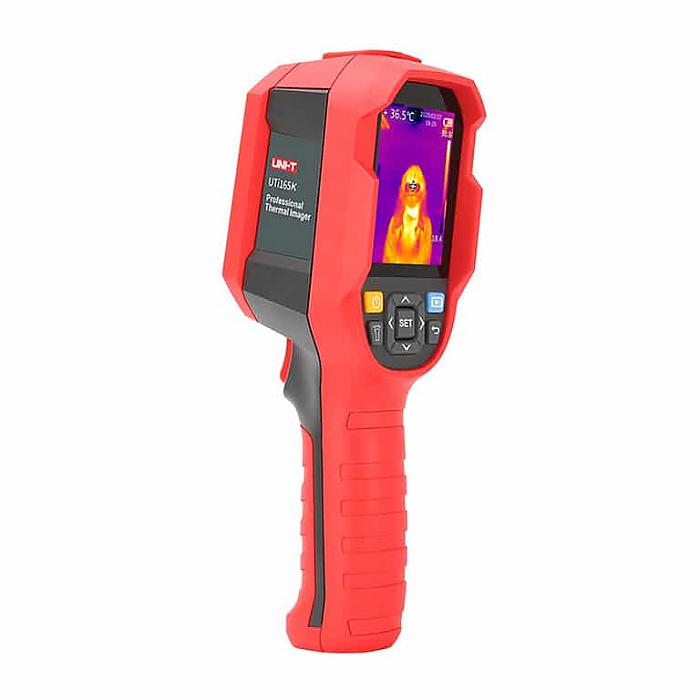

大家最關心的問題，UTi165H，UTI85H +，UTI165K，UTI260K的區別？
1. UTil65K，UTI260K支持通過USB線鏈接電腦投屏實時傳輸測溫畫面;
2. UTi165K，UTI260K支持語音高溫預警（電腦需要安裝指定軟件）;
3. UTI85H +機器本身自帶高溫聲音報警;
4. UTI85H +熱成像分辨率為80 * 60，UTil65k和UTi165h為160 * 120，UTI260K為256 * 192，分辨率越高成像更清晰
5. 其他方面四款機型功能一致。
|
