編號: PX-2R+S003
名稱: PX-2R UHF 400-470Mhz+S3 adaptor

優惠價: HKD 260.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情

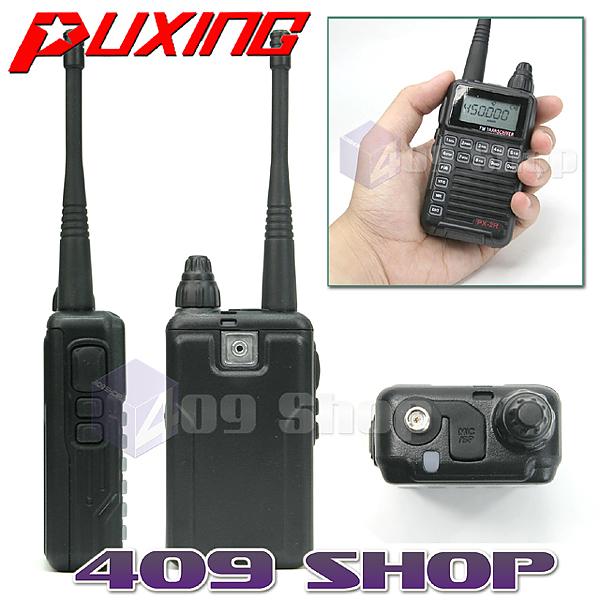

Puxing PX-2R UHF + S003

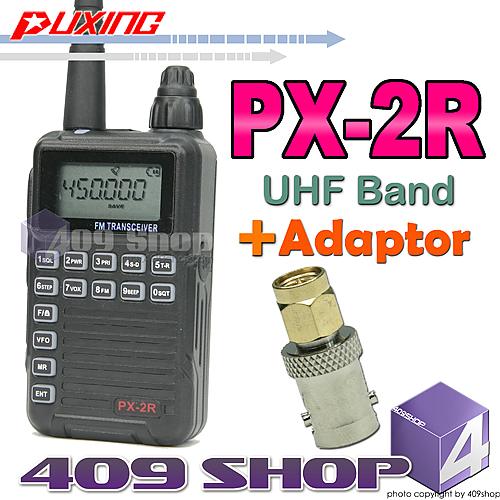

PX2R UHF 400-470Mhz+S3 adaptor



1)CH 128 , All channel scan and priority channel scan
2)Scan types :Carrier, time and search
3) Busy channel lock: carrier/QT/DQT
4)VOX sensitivity:0-9 levels adjustable
5)Transmitter power:High power and low power switchable
6)Squelch opening threshold: Receive field intensity should accurate (use the sq level to show the intensity)
7)Led backlight: On/off/automatic
8)Beep set: Beep on/off
9)Keypad lock function: Manual/auto optional
10)Transmit limited: off-270 optional
11)Offset set:0-xxmhz optional (confirm the max offset according to the band after adjusting)
12)CTCSS and DCS setting
1. Receive only
2. Transmit only
3. 50 CTCSS and 104 DCS
13)+/-offset:+/-frequency optional
14)Offset step optional:12.5k/25k
15)Use Dot Segment to display on LCD
16)Select the LED/emergency call by programming software
17)Volume control knob to turn on/off the power
18)PC programming and store channel
19)Can use car charger
20)DC 3.7V single li-ion battery compatible with mobile phone battery
21) MINI compact size 84*48*25 cm
22) Output power: UHF 400-470mhz 2w
23 With most competitive price





Specifications:

Frequency Range UHF 400-470MHz
Operating Voltage 3.6V
Operating Temperature -30c~+60c
Battery 1100mAh(Li-ion)
Antenna Impedance 50 ohm
Dimension(without antenna&battery(L×W×H) 84*48*25(mm)
Weight(with antenna&battery) 200g
Transmitter
RF Power Output UHF:2W/1W
FM Noise 55dB
Adjacent Channel Power 55dB/60dB
Receiver
Selectivity 60dB
Intermodulation 60dB
Spurious Response Rejection 40dB



Menu in User manual is the old version, here is the new version of PX-2R Menu


VFO 16 MENU

MR MEMORY

1

SQL (squelch level setting)

1

SQL (squelch level setting)

2

POW (power level setting)

2

POW (power level setting)

3

S-D (repeater shift)

3

PRI (priority channel scan)

4

T-R (transmit/receive frequency reversed)

4

VOX (VOX setting)

5

STEP (frequency step)

5

FM (FM radio)

6

VOX (VOX setting)

6

BEEP (key-touch tone)

7

FM (FM radio)

7

C-CDC

8

BEEP (key-touch tone)

8

R-CDC (receive CTCSS/DCS)

9

C-CDC

9

LAMP (backlight control)

10

R-CDC (receive CTCSS/DCS)

10

SCANS (scan type)

11

LAMP (backlight control)

11

TOT (time-out timer)

12

SCANS (scan type)

12

SAV (save power)

13

TOT (time-out timer)

13

NM SET (edit channel name)

14

DIFFR (repeater offset)

14

NAME (frequency display mode)

15

W/N (wide/narrow band)

16

SAV (save power)

Information of this web site is subject to change without prior notice.



Free for adaptor





Free for

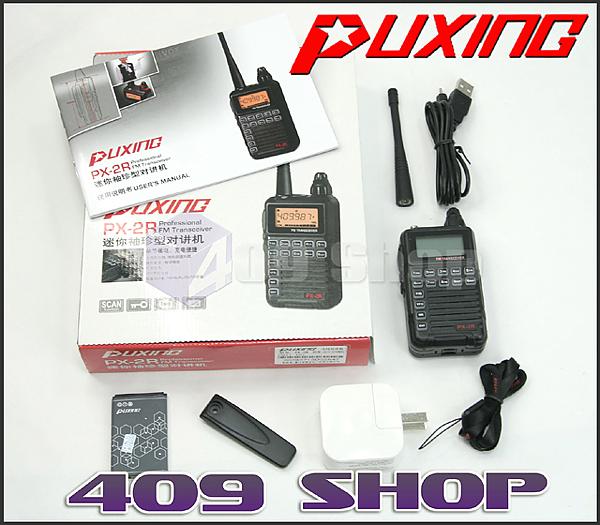

Each Set PACKAGE CONTAIN
  • 1x PX-2R (UHF 400-470Mhz)
  • 1x 3.7v 1100mah Li-ion Battery
  • 1x Antenna.
  • 1x Belt Clip.
  • 1x ENG Manual
  • 1x Charger with Cable ( USB Cable)
  • 1x PTT Earpiece for free
  • 1 x WRIST STRAP

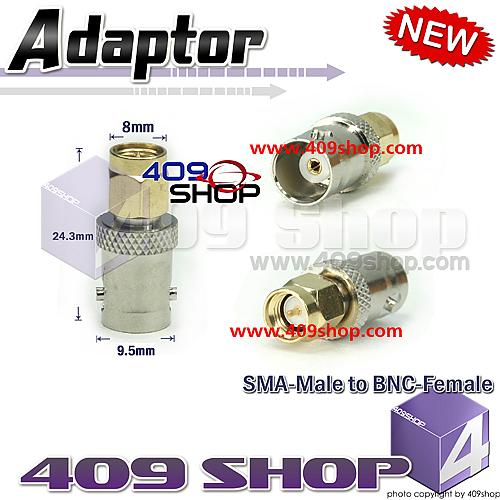

  • 1 x adaptor
