編號: VEV-V16+4-001K

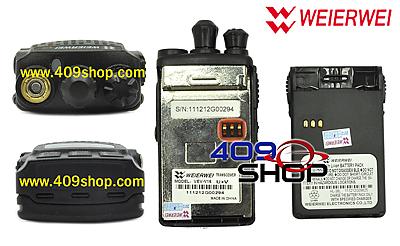

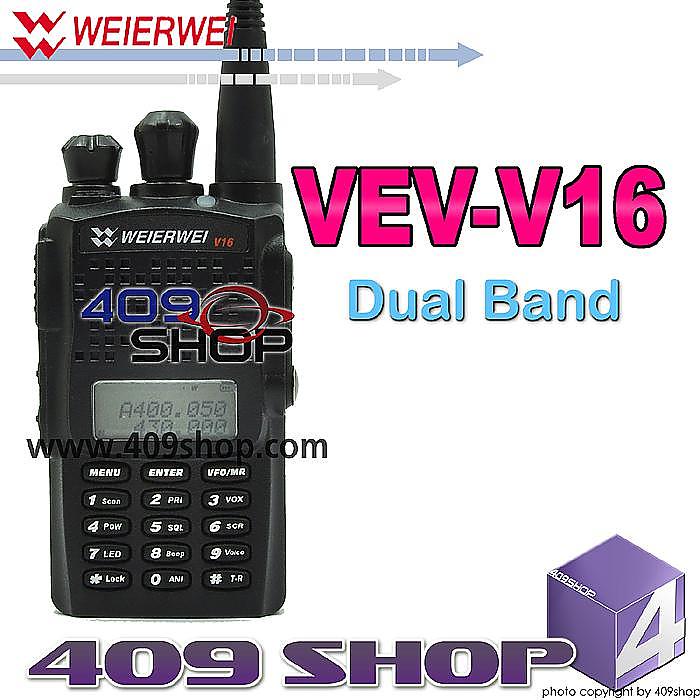

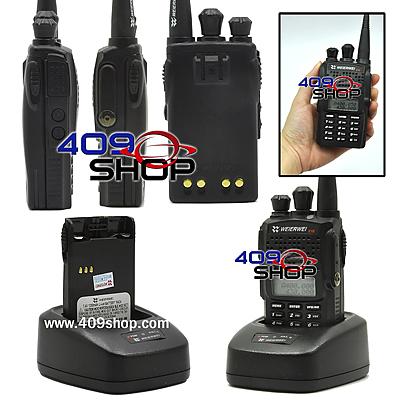

名稱: WEIERWEI VEV-V16 Dual Band 136-174/400-470Mhz

優惠價: HKD 638.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情


VEVV16+4-001K

WEIERWEI VEV-V16 Dual Band 136-174/400-470Mhz



Features:

  • VHF 5W/UHF 4W Output Power
  • 128 groups of memory channels
  • Two lines dot-martrix display
  • Automatic Numbering Identification (ANI) code
  • Built-in Voice Operarte Transmit (VOX) function
  • CTCSS and DCS/5 Tone/MSK/DTMF encoder
  • Scan Function
  • Three color LCD backlight adjustable
  • Emergency alarm
  • Built-in FM radio receiver



General



Frequency Range

136~174MHZ . 400470MHz

Antenna Impedance

50Ohm

Operating Voltage

DC7.4V

Working temperature

-20+50

Operate Mode:

Simplex or Semi-duplex

Dimension(Height×length×width)

115 x 57 x 30mm

weight

About 220g (include battery)

Transmitter



Power Output

U:4.2 ±0.5W   V: 4.8 ± 0.5W

Frequency Stability

±2.5ppm

Spurious Radiation

≤7.5uW

Adjacent Channel Power

65dB

Max Frequency Deviation

≤5KHz

Audio Distortion

≤5%

Modulation Character

+3dB ~ -3dB

Occupied Bandwith

≤16KHz

Transceiver



RF Sensitivity

0.20μV

Adjacent Channel Sensitivity

≥55dB

Audio Response

+2dB ~ -10dB

Co-channel Selectivity

≥ -8dB

Audio Distortion

≤5%

Intermediation Rejection

≥55dB

Blocking

≥85dB

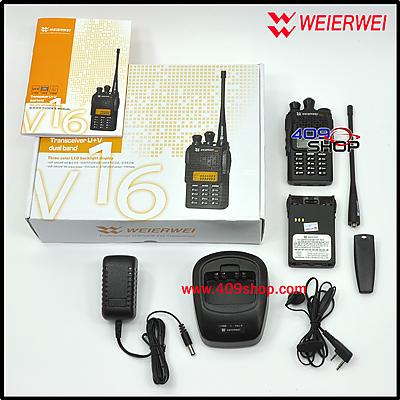

Each Set PACKAGE CONTAIN
  • 1 x WEIERWEI VEV-V16 (VHF 136-174Mhz and UHF 400-470Mhz)
  • 1 x 7.4V 1200mah Li-ion Battery Pack.
  • 1 x Antenna.
  • 1 x Belt Clip.
  • 1 x ENG Manual
  • 1 x Desktop Charger (100V ~ 240V)2 pin for USA & EURO or 3 pin for UK
  • 1 x Earpiece

**本機語言是英語設定,無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.
