| PX-888K-B x10+1x 1020-0002
10x PUXING PX888K (BLACK)
Dual Band 136-174/400-480Mhz + earpiece
+ 1x LIGHT JACKET
(please choose the LIGHT JACKET Size)
- PUXING PX-888K Dual Band 136-174/400-480Mhz + earpieceDTMF: Select Call， Group Call， Broadcast Call
- CTCSS/DCS can be random programmed with CTCSS/DCS scan
- 5 tone selcall(ZVEI1,ZVEI2,，CCIR1，ITT)
- Working frequency:U/V dual band
- 128 groups of memory channels
- VHF 5W/UHF 4 W output power
- TX Stun or RX Stun function
- DTMF Encode and Decode
- 1750hz repeater tone
- Voice annunciation
- 8 scramblers option
- Roger tone 1-10
- Built-in FM radio
- 5 tone signal Scrambler
- MSK ANI
Specification:
|
GENERAL
|
|
Frequency Range
|
136-174MHz & 400-480MHz
|
|
Operating Voltage
|
-20℃~+50℃
|
|
Operate Mode
|
Simplex or Semi-duplex
|
|
Dimension
|
100mm x 55mm x 32mm(Not included antenna)
|
|
Weight
|
220g(Including battery)
|
|
Antenna Impedance
|
50 Ω
|
|
TRANSMITTER
|
|
Frequency Stability
|
±2.5PPM
|
|
Output Power
|
VHF5W/UHF 4W
|
|
Max Frequency Deviation
|
≤5KHz/2.5KHz
|
|
Audio Distortion
|
≤5%
|
|
Modulation Character
|
+3dB~-3dB
|
|
Adjacent Channel Power
|
≥70dB/60dB
|
|
Spurious Radiation
|
≤7.5uW
|
|
Occupied Bandwidth
|
≤16KHz
|
|
RECEIVER
|
|
RF Sensitivity
|
>0.2uV
|
|
Audio Distortion
|
≤5%
|
|
Audio Response
|
+2dB~-10dB
|
|
Co-Channel Rejection
|
≥-8dB
|
|
Adjacent Channel Selectivity
|
≥60dB
|
|
Intermodulation Rejection
|
≥65dB
|
|
Spurious Response
|
≥70dB
|
|
Blocking
|
≥80dB
|
Free For
LIGHT JACKET
(please choose the LIGHT JACKET Size)
Free For
|
|
S
|
M
|
L
|
XL
|
XXL
|
|
胸圍
|
44吋(inch)
|
46吋(inch)
|
48吋(inch)
|
50吋(inch)
|
52吋(inch)
|
|
腳圍
|
42吋(inch)
|
44吋(inch)
|
46吋(inch)
|
48吋(inch)
|
50吋(inch)
|
|
衫長
|
27吋(inch)
|
28吋(inch)
|
29吋(inch)
|
30吋(inch)
|
31吋(inch)
|
|
袖長(領邊量)
|
29吋(inch)
|
30吋(inch)
|
31吋(inch)
|
32吋(inch)
|
33吋(inch)
|
-

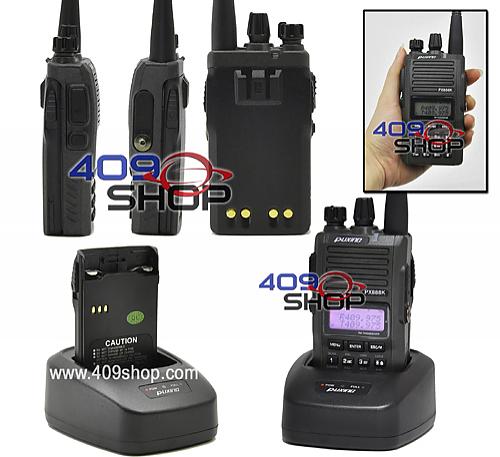

10 x PUXING PX-888K (COLOUR:BLACK) Dual Band (VHF136-174Mhz / UHF 400-480Mhz)
-
10 x 7.2v 1200mah Li-ion Battery Pack
-
10 x Antenna.
-
10 x Belt Clip.
-
10 x ENG Manual
-
10 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
-
10 x Earpiece
-
1 x LIGHT JACKET 1020-0002 (please choose the LIGHT JACKET Size)
