THUVF9D-UH

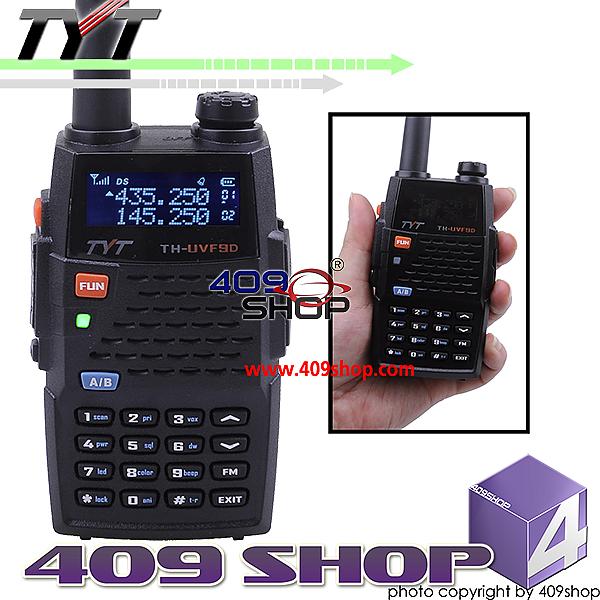

TYT TH-UVF9D-UH 136-174/350-470MHZ Dual Band Radio
Features:

VHF/UHF Dual Band, Dual Display, Dual Standby

Dual Band, Dual display, dual standby

128 channels to store

FM Radio receiver and 20 channels

Channel spacing selectable (25/12.5 kHz)

Handsfree VOX function

 50 CTCSS tones and 210 DCS codes

 Scan of frequencies with CTCSS/DCS

 Low battery vocal indication

 SOS emergency function

 Shift repeater function

 ANI Function

 DTMF & Remote kill/stun function

 Talkaround function

 Reverse frequency function

 Compander & 8 groups Scrambler


Item number	THUVF9D-UH
General
Frequency Range	136-174MHz
	350-470MHz
Channel No.	128
Frequency Stability	±2.5ppm
Antenna	High gain antenna
Antenna Impedance	50Ω
Operating Voltage	DC 7.2V (Rechargeable LI-ion Battery)
Mode of operation	Simple or semi-duplex
Dimension（W x H x D）	128 x 63 x 33 mm
Weight	593g（including battery, antenna）
Transmitter
Output power	>4W(H) >0.5W(L)
Modulation Mode	16kΦF3E / 11kΦF3E
Maximum deviation	＜5kHz / ＜2.5kHz
Spurious Radiation	＜7μW
	≤-65dB/ ≤-60dB
Pre-emphasis characteristics
Current
	＜
RF Sensitivity	SINAD)
Audio power	1W
Audio Distortion	<10%
Intermediation

Each Set PACKAGE CONTAIN 1 x NEW TYT THUVF9D-UH Dual Band Radio (136-174/350-470MHZ) 1 x 7.4V 1600mAh Battery Li-ion Battery Pack 1 x Dual Band SMA-Male Antenna 1 x Belt Clip 1 x ENG Manual 1 x Charger (2pin USA or 3pin UK or 2pin EURO or 2pin Australia) 1 x Car Charger                                                                                                                                        ch
