編號: 1 x FD-A380 UL
名稱: 1 x FeiDaxin FD-A380 UHF 400-430mhz

優惠價: HKD 539.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情


 FeiDaxin

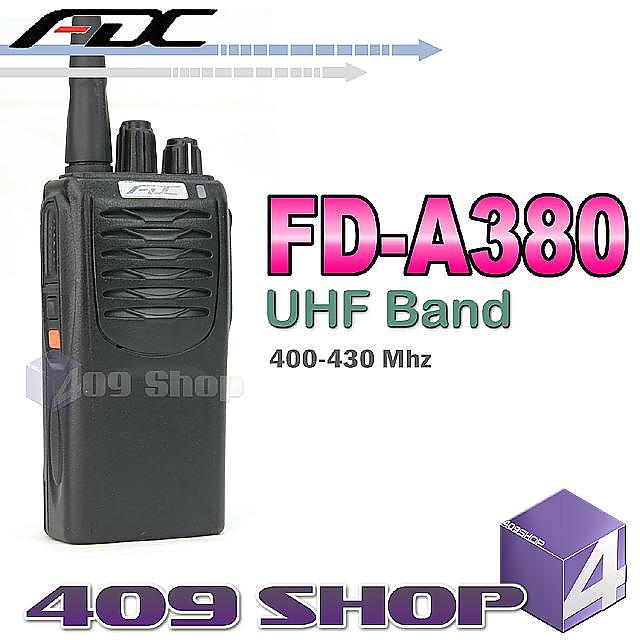

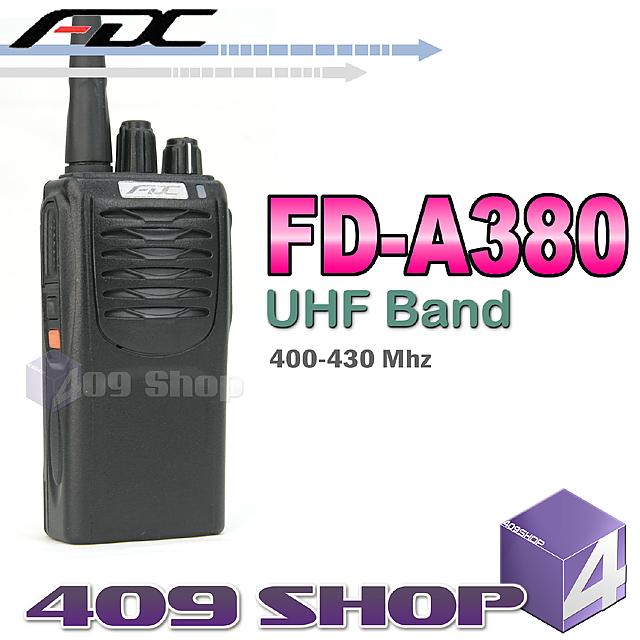

FDA380 UHF 400-430mhz Ham radio



FD-A380 Technical specifications

Special features
High power output: 4/5W Monitor function Wired clone function and choice of Chinese/English voice function
  With rapid charger TOT and call functions
Channel spacing (wide/narrow channel bandwidth): 12.5/25kHz Power saving and extend battery using time, emergency function Programming method: computer
Built-in 50 groups of CTCSS and 104+1 groups of DCS High/low battery warning and rain-resistance

Model NO.   FD-A380
General
Frequency Band   UHF
Frequency Range   400-430Mhz
Channel Capacity 15+1
Operating Voltage 7.2V DC ±10%
Antenna Impedance 50Ω
Channel Spacing 12.5kHz/25kHz
Working Temperature -30 ℃ - 60 ℃
Frequency Stability ±2.5 ppm
Size (Without Antenna) 54(W)x125(L)x34mm(D)
Weight(With Battery) About 320g
Battery 1300 mAh(Ni-Mh)/1200 mAh(Li-ion)
Compatible With American Military Standard(MIL-STD-810C/D/E)
Transmitter(EIA-RS 316B STANDARD)
RF Power Output 5W/4W
Modulation Type F3E
Modulation Distortion < 5%(300-3000Hz)
Max Freq Deviation < 5kHz(1000kHz When 100%)
FM Noise <=-45dB
Receiver
Sensitivity(12Db SINAD) 0.16μV
Selectivity 55dB
Adjacent Channel Selecivity >=70dB
Noise Respond >=60dB
Communication Range 3-5km(Downtown),6-20km(In the Open Area)
FM Noise 45dB/40dB
Modulation Type 8K/16KOF3E
Audio Power Output 500mW When Distortion Less Than 10%
Audio Distortion < 5%
Operating Bandwidth ±7.5kHz/±3.75kHz

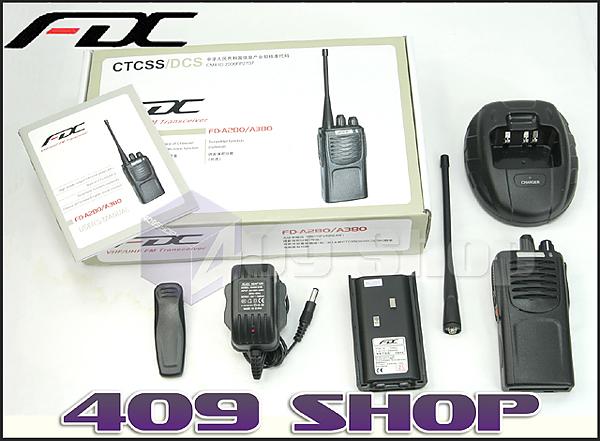

Each Set PACKAGE CONTAIN
  • 1x FD-A380 Ham radio (UHF 400-430Mhz)
  • 1x Li-ion  Battery Pack.
  • 1x Antenna UHF 400-430mhz
  • 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
  • 1x Belt Cilp
  • 1x user///////////////'//i//i//i//i//i//i//i/s manual

**本機語言是英語設定,無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.
